| Place of Origin: | China |
| Brand Name: | YUYANG |
| Certification: | CE |
| Model Number: | YYP038 |
| Minimum Order Quantity: | 1PCS |
|---|---|
| Price: | $3500 |
| Packaging Details: | Wooden Box |
| Delivery Time: | 5-30 Days |
| Payment Terms: | T/T |
| Supply Ability: | 10 Pcs Per Month |
| Product Name: | Checkweigher Machine | Funtion: | Check Weighing |
|---|---|---|---|
| Display Type: | Touch Screen | Weighing Range: | 2～500g |
| Conveyor Speed: | 40m/minutes | Accuracy: | 0.1 Grams |
| Conveyor Belt Scale Automatic Check Weigher For Pharmacy Digital Check Weigher: | 12 Months | Power Supply: | 220V/50HZ |
| High Light: | 220V Automatic Check Weigher,Pharmacy Automatic Check Weigher,40m/minutes Auto Check Weigher |
||

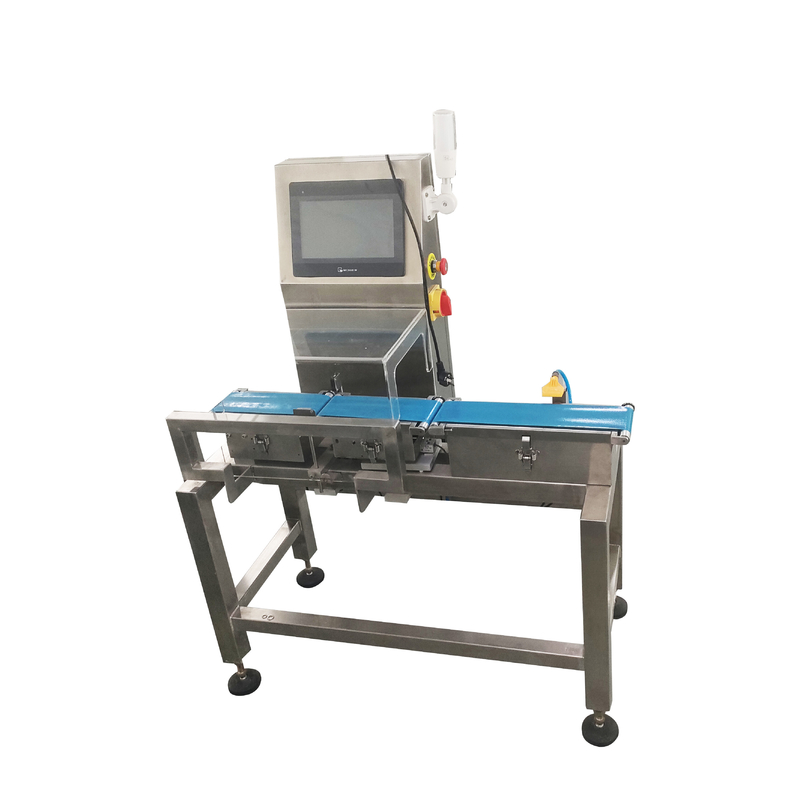

Conveyor Belt Scale Automatic Check Weigher For Pharmacy Digital Check Weigher
Detailed Descriptions:
Checkweighers have been a key element of production operations, because they are not only weighing, but also can actually optimise your whole production process.The benefits of a checkweigher include:
Feature:
1. Large LCD touch screen display, English and Chinese interface, suitable for domestic and foreign customers.
2. High precision sensor, high detection accuracy and fast detection speed.
3. The graph shows the statistical distribution of sorting results to grasp the sorting dynamics in real time.
4. 100 product sorting parameters can be preset, and different products can be switched quickly.
5. High speed and high precision digital filtering algorithm, data filtering parameters, automatic learning.
7. Dynamic zero tracking, including zero tracking during continuous operation of the equipment, can automatically correct the weight value.
8. Frequency conversion motor drive, effectively improve the operation stability of the equipment.
9. Preset data transmission interface. Product sorting parameters can be set or exported via USB.
10. The photoelectric retriggering mode is adopted to effectively improve the accuracy of the equipment.
11. Multiple culling methods are optional. Overweight or underweight products can be eliminated.
12.According to product requirements, protective bars are added to the equipment to prevent samples from being dumped during testing
Parameter:
|
main-machine interface |
10.1-inch color TFT touch screen |
|
Manipulation language |
English |
|
Size |
About L1420mm* W730mm *H1250mm |
|
Detection size |
L(mm):1～250 W(mm):1～100 H(mm):1～150 |
|
Weighing section size |
L400mm*W200mm |
|
The height of the belt from the ground |
680mm |
|
Minimum scale |
0.1g |
|
Small bottle accuracy |
±0.3-0.5 g |
|
Big bottle accuracy |
± 1g |
|
Weighing scale |
2～500g |
|
Weed out way |
Pneumatic blowing type, swinging arm type, flat push rod type, lifting type |
|
Material and surface treatment |
304 stainless steel and surface finish |
|
Input voltage/power |
Single phase AC220V 50Hz/150W |
