High Precision Metal Detector Machine 60Hz 140W Aluminum Foil Packaging Special

High Precision Metal Detector Machine 60Hz 140W Aluminum Foil Packaging Special

High Precision Metal Detector Machine 60Hz 140W Aluminum Foil Packaging Special
High Precision Metal Detector Machine 60Hz 140W Aluminum Foil Packaging Special
High Precision Metal Detector Machine 60Hz 140W Aluminum Foil Packaging Special
Product Details:
Place of Origin: China
Brand Name: YUYANG
Certification: CE
Model Number: YYM052
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: $3050
Delivery Time: 7-30 Days
Payment Terms: T/T
Contact Now
Detailed Product Description
Type: Needle Metal Detector Usage: Garment And Bedding Checking
Alarm Method: Sound Light Alarm And Return Then Restart Again Power Suply: 110V 220V Or 380V
Application: Broken Needle Check And Detect Inspect Width: Customized
Automatic Grade: Automatic Detecting Adjustment: Manual And Belt Stop
High Light:

140W Detector Metal Machine

,

High Precision Metal Detector Machine

,

60Hz Detector Metal Machine

High Precision Aluminum Foil Packaging Special Metal Detection Machine Metal Detector Factory Direct Sales

High Precision Metal Detector Machine 60Hz 140W Aluminum Foil Packaging Special 0

Brief introduction:

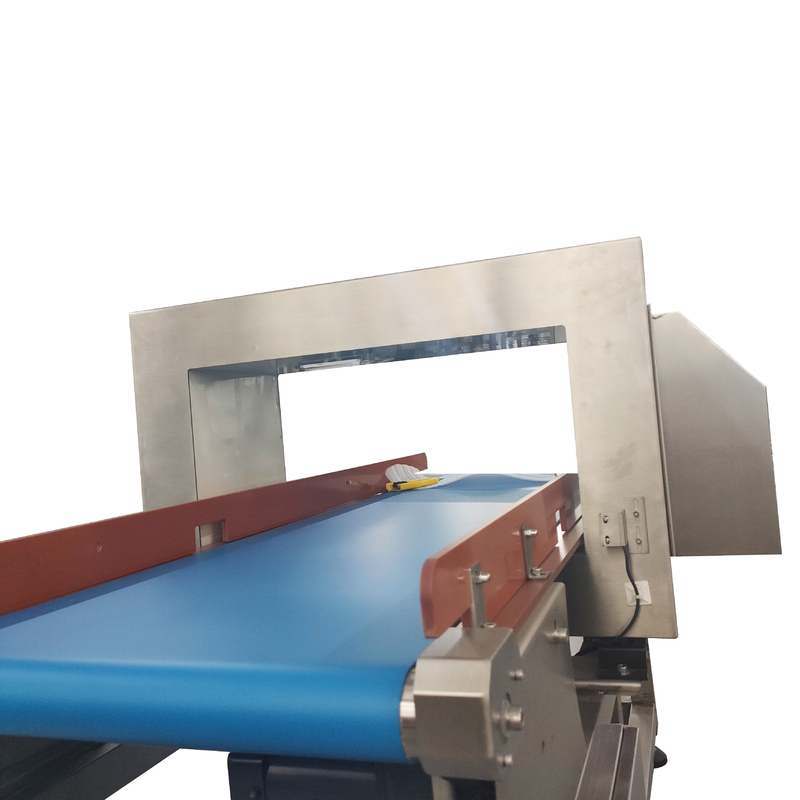

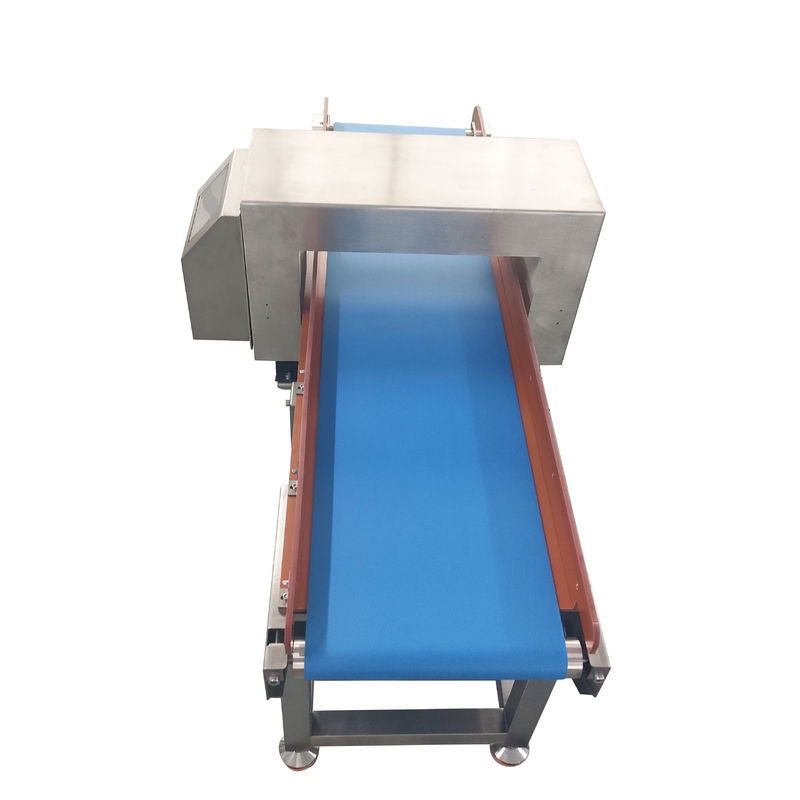

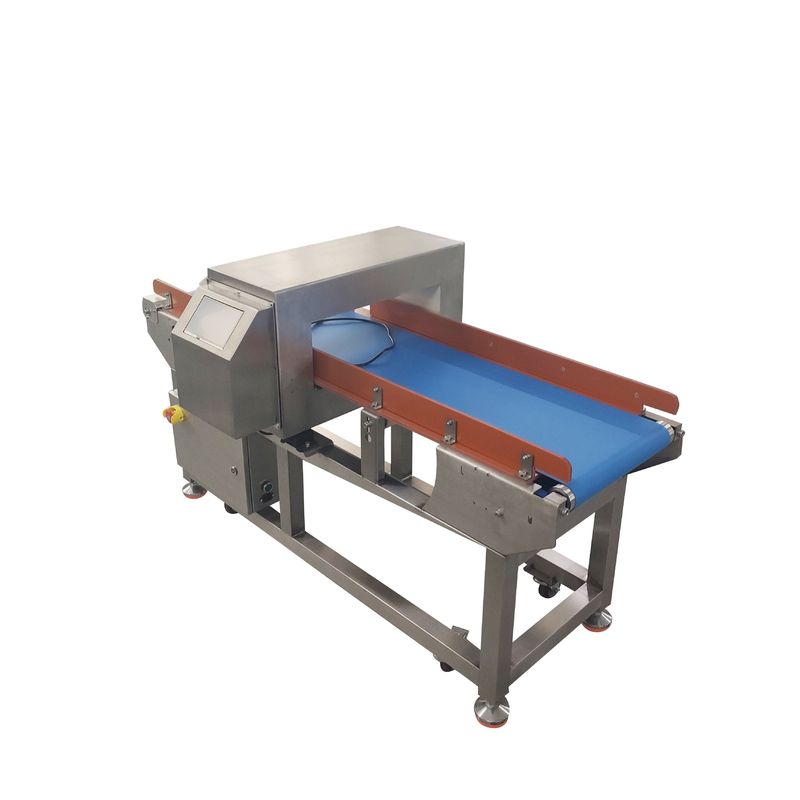

The Conveyer Type Needle Detector is a free-standing conveyorized digital Needle Detector for garments. Accepts non-metals and all approved non-ferrous zips and poppers. It will reject and ferrous or nickle contamination, typically staples and needle fragments equivalent to a 1.0 mm ferrous sphere. The unit has a belt speed of approximately 25 to 30 meters per minute and an aperture size of 24" (700mm) width x 7" (175mm) height. In case of rejection, belt stops with an audible alarm and the signal light is activated. Full digital technology and control.

Specifications:

Detecting method: Magnetic induction
Detecting width: 600mm
Detecting height: 160mm
Detecting adjustment: Steeples adjustment
Detecting ability: Diameter1.0 iron ball, Diameter2.2 stainless steel, Diameter1.8 SUS
Alarm method: Buzzer alarming
Belt speed: (APP. )40m/min
Power supply: AC110-230V, 50-60Hz
Dimension size: 1620(L)× 1000(W)× 1100(H)mm



Parameter:



Detection method Magnetic induction.digital process double sensor
Detection ability ≥FeΦ0.8 ≥FeΦ0.8 ≥FeΦ1.0 ≥FeΦ1.2 ≥FeΦ1.5
Detection height 100mm 120mm 150mm 200mm 250mm
Detection width Net width 600mm-non-standard sizes(custom)
Detection adjustment Touch screen adjust the level 1-12
Alarm Method Sound/light alarm and return, then restarts again
Power supply Ac 220V 50-60Hz
Rated output 140W
Machine size L1820mm×W1050mm×H900mm
Weight 280KG


FAQ:

1. Are you a manufacturer or trader?
We are a manufacturer, we have our own factory in Dong Guan, we have independent department for purchasing, producing, processing, testing, packing, storing, and transportation, believe our team is the best team in China.

2. Do you sell accessories for products?
Yes. We have matched the parts for our testing equipment. If our machines are damaged by fire, water flood, earthquakes, unsteady power, and other natural disasters, we are willing to supply match parts at lowest price for you.

3. How about the packing for product? Is it easily damaged during transportation?
For light structure products like Gold detector. Hand held metal detector and so on we take of strong carton box.
For heavy structure products like conveyor belt needle detector. Food metal detector X-ray machine. Our packing is Standard Export ploy Wooden Case.
Every prepackage has a plastic bags cover.

4. What’s your main product?
We are professional in needle detectors. Metal detector and other related electronic products and machines.

5. Where is your main sales market?
Our Gold meal detectors customers are all over the world.
Our hand metal detectors and walk-through metal detectors are mainly in Southeast Asia, South America, Middle east, East Europe and Africa.
Our needle and food metal detector mainly customers are from Australia, USA, All Europe and Asia.

6. How about your after-sales policy?
Customer first is our always principle. All of our products normal warranty is 12 months. We give necessary back or video guidance for daily problems. If massive products occur big quality problems. Our technical and engineer support overseas service.

7. Do you accept customer Logo and customized?
We accept kinds of customized and logo for all of our products for customers.
