1000*1000*1000mm Environmental Test Chamber For 80-100Kpa Drenching Water Pressure

Product Description:

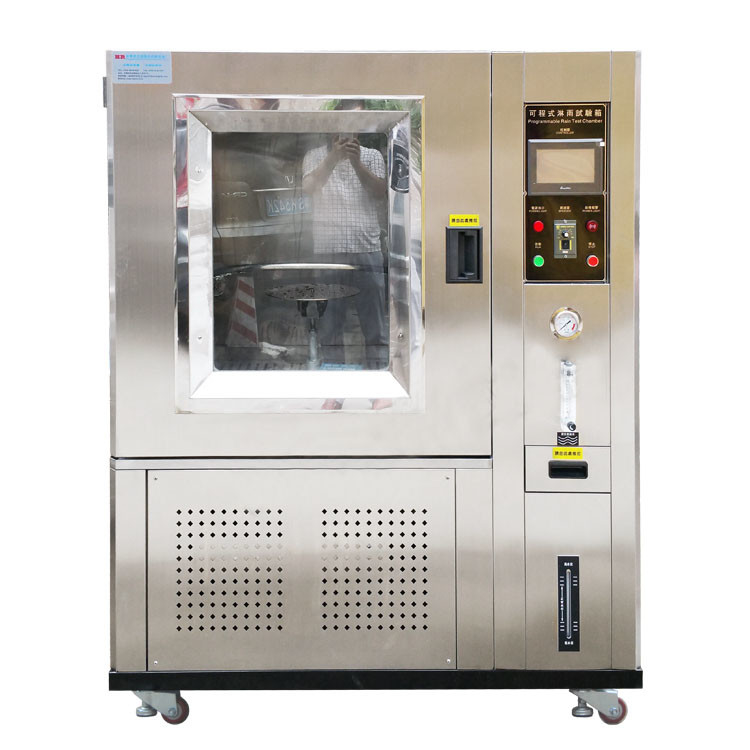

1000*1000*1000mm Environmental Test Chamber For 80-100Kpa Drenching Water Pressure

This product is an excellent choice for the assessment of any electrical products. It can guarantee the quality assurance of a product by testing it under different rain environments, from dripping, drenching, splashing to spraying. The product was thoughtfully designed and can make reality simulations of any of the aforementioned rain environments.

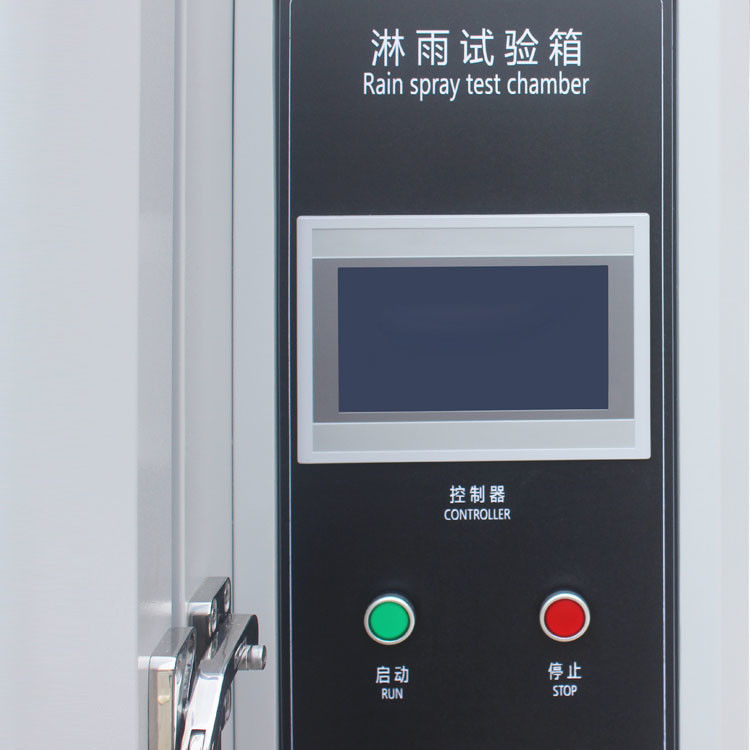

Moreover, this product is also equipped with a comprehensive control system as well as Frequency conversion technology which allows adjustable rotation angle, spray pendulum angle as well as swing frequency of the water spray.

Features:

The inner chamber is comprised of stainless steel 304 for durability, while the outer case is either stainless steel 304 or powder coat painted for resilience against the elements.

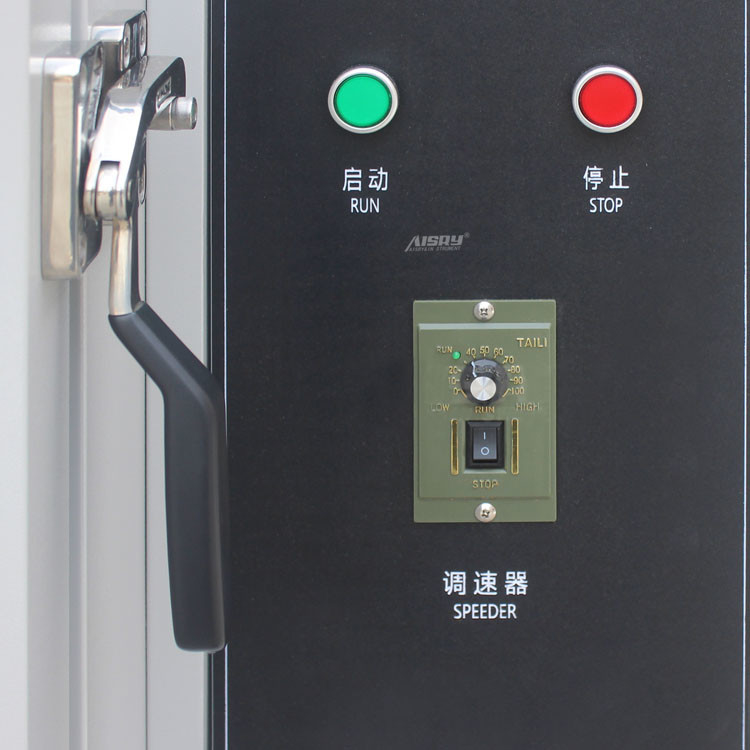

The sample table is equipped with a rotary turntable, with adjustable speed for optimal efficiency.

Furthermore, the temperature testing machine also features power overload protection, short-circuit protection, ground fault protection, water level shortage protection, and alarm signal tip-off to alert users of any potential hazards.

Technical Parameters:

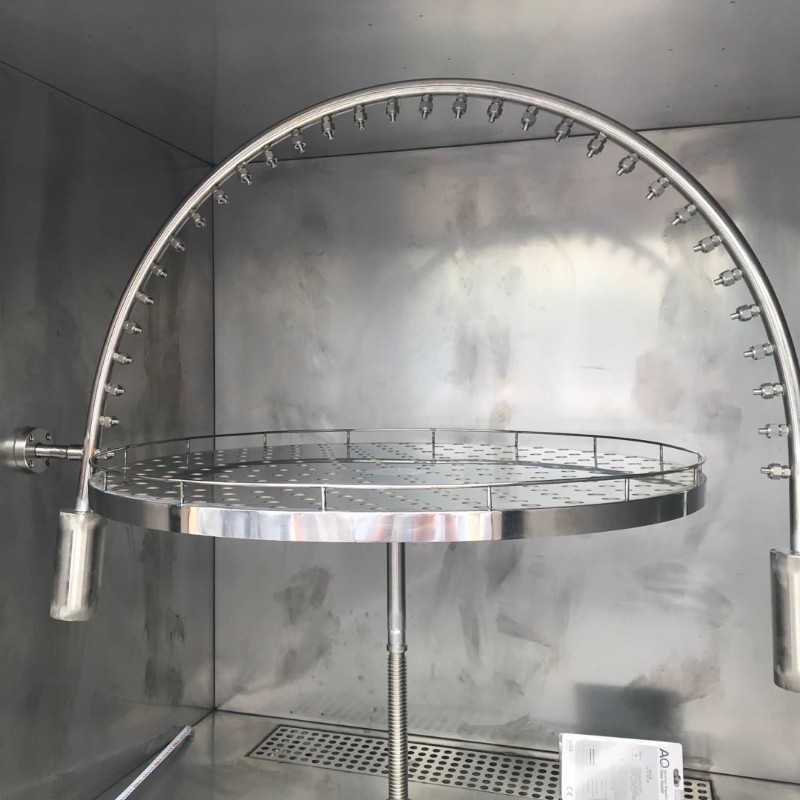

The inner box material is constructed of 304 stainless steel, and the outer box is also composed of stainless steel. The observation window is waterproof and made of tempered glass. The pendulum angle is IPX3, a ±60-degree angle along the vertical line with a total of 120 degrees. For IPX4, it can be adjusted to ±180 degrees with a total of 360 degrees. The pendulum speed is 15 times per minute for IPX3, and 10 times per minute for IPX4. The diameter of the water spray hole is 0.4mm, and the spacing of the water jet holes is 50mm. The turning table has a speed range of 1 to 10rpm. The water jet flow rate is 0.07L/min with a 5% margin of error. The duration of the test is adjustable between 1 to 999,999 minutes. The water pressure used for drenching is 80 to 100Kpa. And for power supply, the single-phase AC220V is used with a frequency of 50/60HZ.

Applications:

The IP34 Rain Test Chamber provides an environment simulating different levels of rain intensity, making it an ideal tool for testing the waterproof performance of popular electronic devices such as cell phones, tablets PCs, and e-readers.

It is also equipped with a heating and cooling system that enables it to manage temperature and humidity levels according to the requirements specific to each electronics brand.

Support and Services:

We offer comprehensive technical support and service for our Environmental Test Chamber. Our team of experts are available to provide advice and assistance in the set-up, operation, and maintenance of our chambers.

Our technical support team is available to answer any questions you may have about our Environmental Test Chambers. We can help you with product selection, installation, calibration, and operation. We can also provide troubleshooting assistance.

We offer maintenance and repair services for our Environmental Test Chambers. Our technicians are available to diagnose and repair any issues you may be having with your chamber. We can also provide regular maintenance services to ensure your chamber is in peak working condition.

We offer training services to help you get the most out of your Environmental Test Chamber. Our trainers can provide hands-on instruction on how to operate and maintain your chamber. We can also provide online training courses for those who prefer to learn at their own pace.

Packing and Shipping:

The Environmental Test Chamber will be securely packaged with foam inserts and placed into a wooden crate for shipping. The crate will be secured with metal strapping bands and sealed with plastic.
