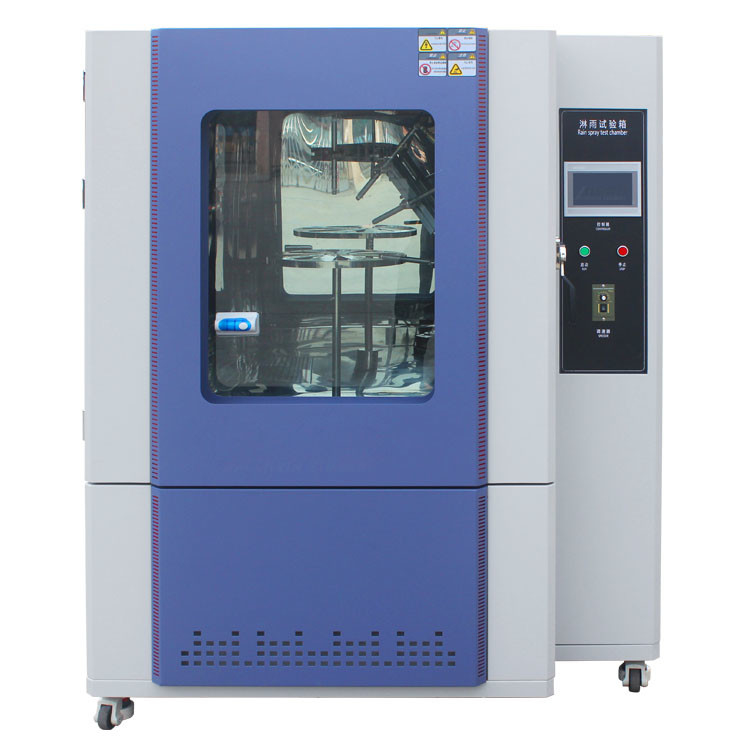

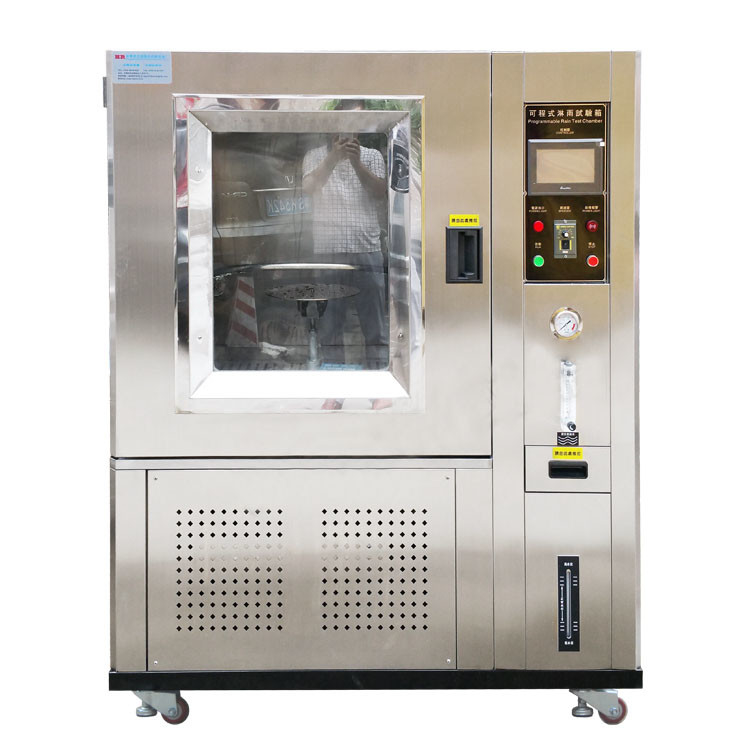

IP34 High Performance Aging Test Chamber With 0.07 L/Min 5% Spray Hole Flow Rate

Product Description:

IP34 High-Performance Aging Test Chamber With 0.07 L/Min 5% Spray Hole Flow Rate

This product is an excellent choice for assessing the performance of electrical appliances, casing, and seals when exposed to rain. Its scientifically advanced design equips the device with the capability of simulating various environments such as dripping, drenching, splashing and spraying. In addition, a comprehensive control system as well as frequency conversion technology allow the rainfall test frame's rotary angle, the water spray pendulum's swing angle, and the water spray swinging frequency to be adjusted in a seamless motion.

Features:

The inner chamber is crafted from stainless steel 304, and the outer case may be made of the same material or powder coating.

For further convenience, the sample table is equipped with a round turntable which can be adjusted according to the desired speed.

Safety features include power overload and short-circuit protection, grounding protection, water shortage protection, and alarm signaling tips.

Technical Parameters:

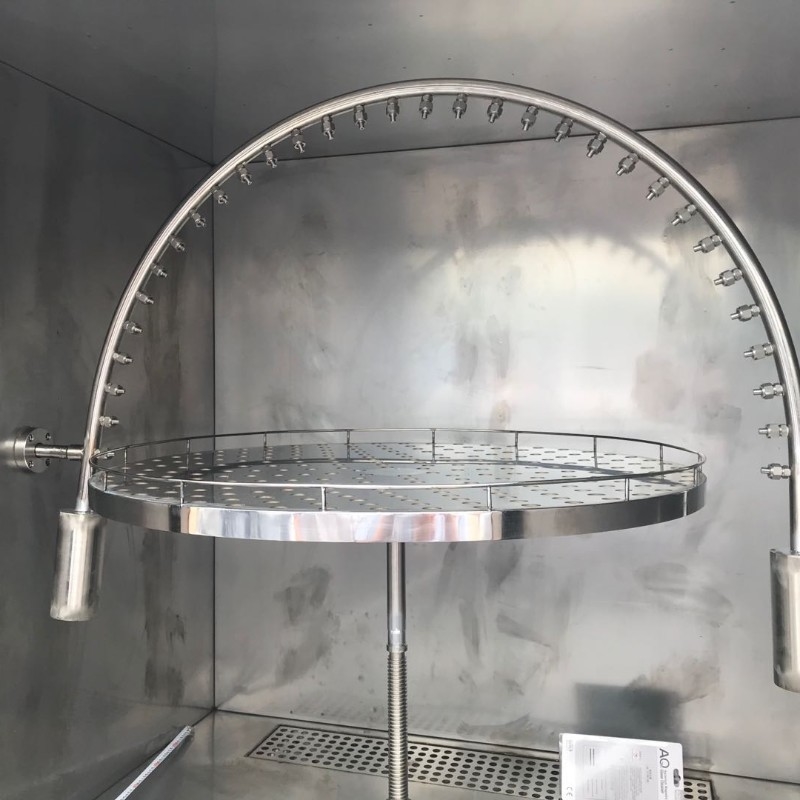

The inner box and outer box material are both 304 stainless steel. There is a waterproof tempered glass for observation window. The pendulum angle is IPX3: ±60° along the vertical line, 120° in total, and IPX4: Left and right along the vertical line ±180°, a total of 360°. The pendulum speed is IP3 15 times/min; IP4 10 times/min. The diameter of the water spray hole is 0.4mm and the spacing between each hole is 50mm. The adjustable turntable speed is from 1 to 10rpm with a flow rate of 0.07 L/minute, plus or minus 5%. The adjustable test time is from 1 to 999,999min. The drenching water pressure is from 80 to 100Kpa and the power supply is single-phase AC220V, with a frequency of 50/60HZ.

Applications:

We introduce IP34 rain test chamber to bring convenience to electronic product testing. This chamber is flexible and powerful, which can generate different intensity of rain environment to simulate natural environment.

It is suitable for various electronic products to inspect their waterproof performance, such as cell phones, tablet PCs, e-books and so on.

What's more, IP34 rain test chamber not only equipped with rain generator, but also features internal heater and cooler. This allows users to precisely control the temperature and humidity to meet the testing demands of different products.

Support and Services:

Environmental test chambers are designed to facilitate a wide variety of tests and experiments in a controlled environment. These chambers are used in a variety of industries, including automotive, aerospace, and biotechnology, to ensure the quality and safety of products. To ensure optimal performance of the chamber, technical support and service are essential.

We provide comprehensive technical support for all environmental test chambers. Our knowledgeable staff can help you with any technical inquiries, such as chamber setup, calibration, and troubleshooting. We can also provide advice on best practices for using the chamber, as well as guidance on maintenance and repair.

Our service team is available 24/7 to provide assistance with any issues that may arise with your environmental test chamber. We offer on-site and remote service, and can provide quick turnaround times for repairs. Our service technicians are experienced and trained to repair any issue with your chamber, no matter the complexity.

Packing and Shipping:

Environmental Test Chambers are packaged in custom crates that are designed to protect the unit during shipping and transit. The unit is secured within the crate with foam blocks and banding straps. The external crate is labeled with shipping information including the customer contact information, the contents of the shipment, and handling instructions.

The shipment is then transported to the customer’s specified location using a reputable carrier. Once delivered, the customer is responsible for unpacking and installing the unit.
