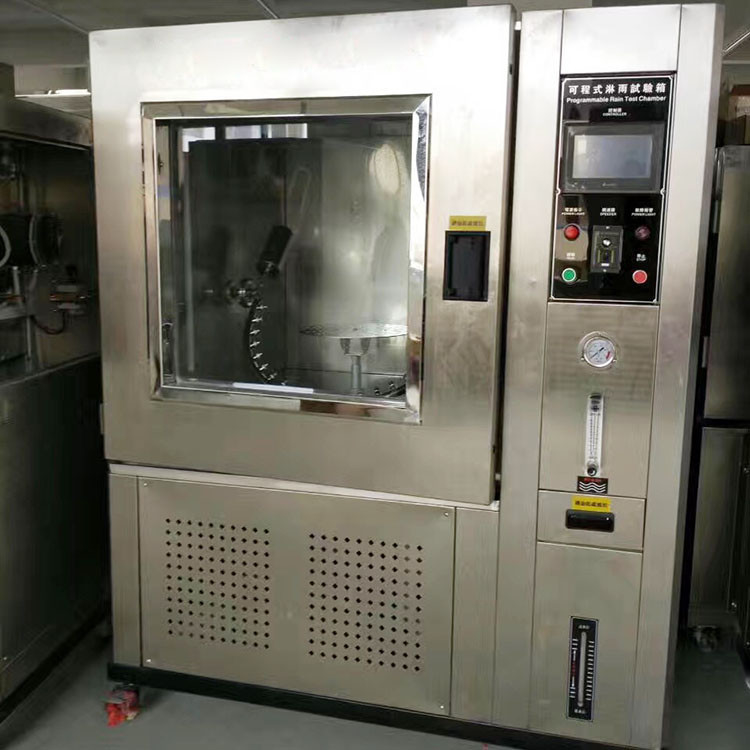

±0.5°C Temperature Uniformity And Environmental Test Chamber With 50mm Spacing

Product Description:

±0.5°C Temperature Uniformity And Environmental Test Chamber With 50mm Spacing

This product is perfect for assessing electrical products, as the housing and seals are able to keep up their excellent performance even when exposed to rain.

It is equipped with a cutting-edge design, making it capable of effectively mimicking various weather conditions like drizzling, drenching, spluttering and spraying.

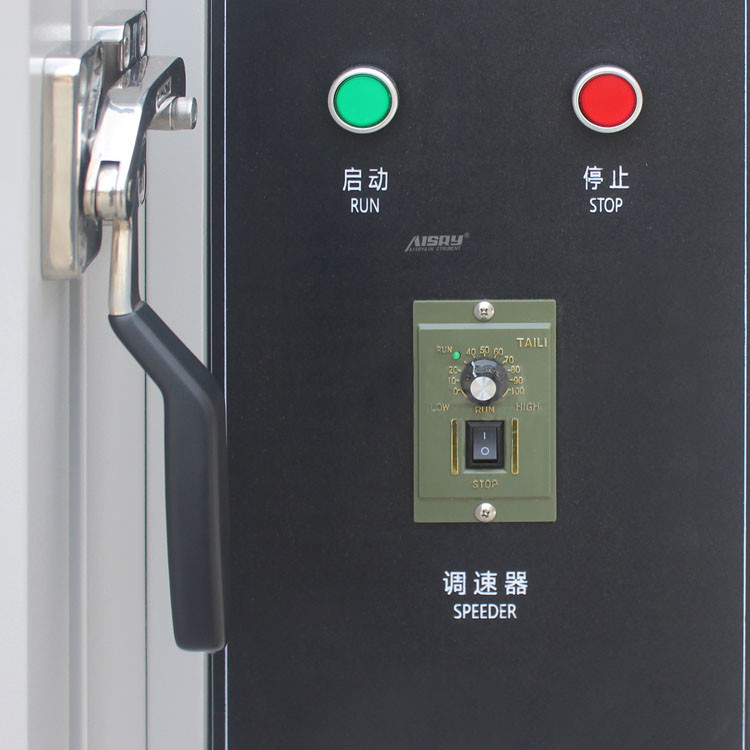

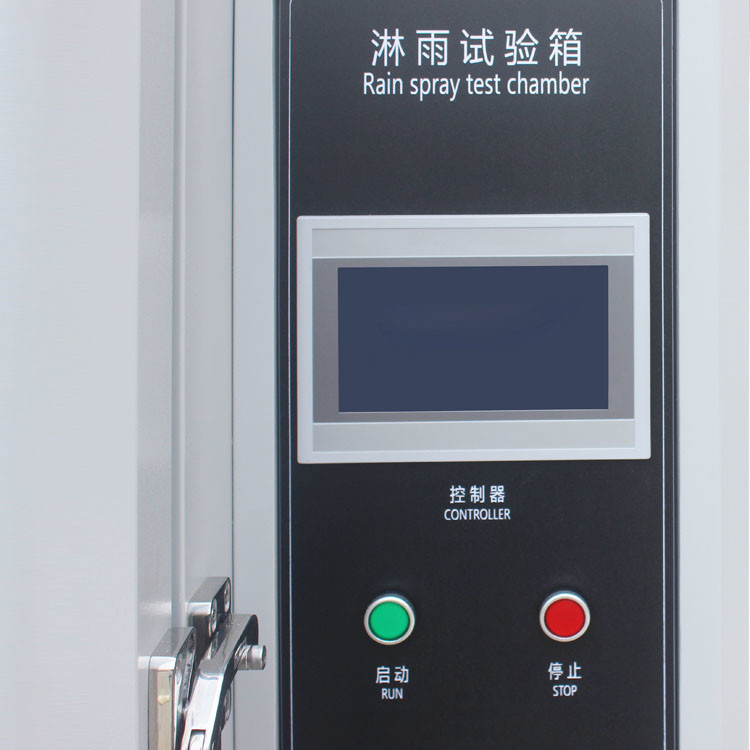

An integrated control system and frequency conversion technology allow the testers to regulate the rotational angle of the rainfall test frame, the suspended angle of the water spray swing, and its oscillation frequency with utmost precision.

Features:

The inner chamber of the product is crafted with stainless steel 304, and the outer casing is constructed with either stainless steel 304 or powder coating material.

The sample table is equipped with a round rotating disk which is adjustable in regard to its speed.

A reliable protection is guaranteed with our power overload protection, short-circuit protection, grounding protection as well as water shortage warning functions and alarm signaling tips.

Technical Parameters:

Drip Box Technical Specifications:

The drip box is comprised of two main parts, an inner and outer box. The inner box material consists of 304 stainless steel and the outer box is made of stainless steel. In between these two parts is a waterproof tempered glass observation window.

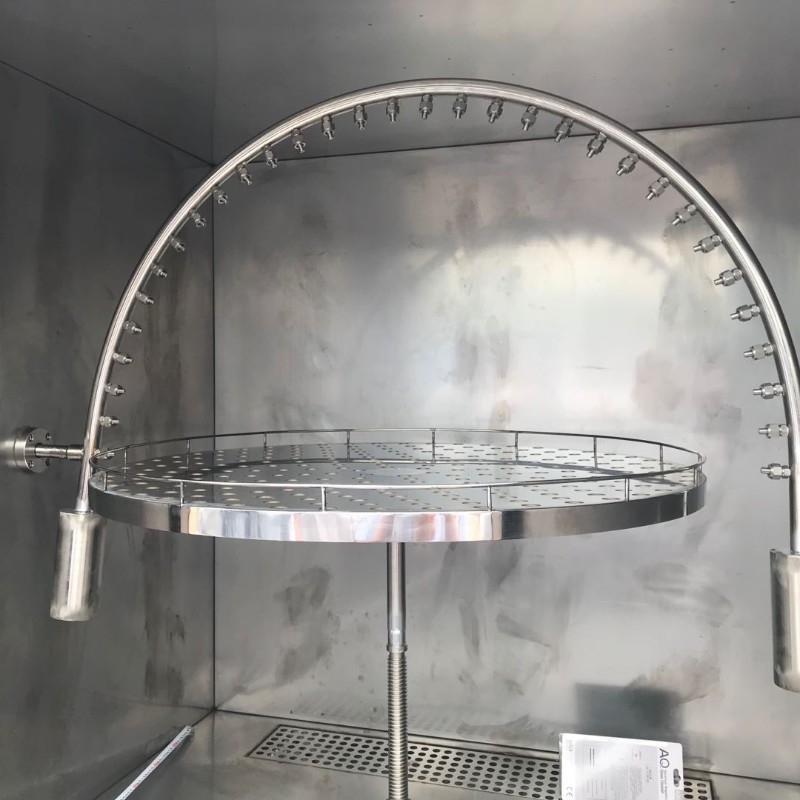

The pendulum angle is adjustable depending on the IPX. For the IPX3, the pendulum angle can reach up to ±60° along a vertical line, totalling in 120°. For the IPX4, the pendulum can reach left and right along the vertical line to add up to a total of ±180° for a total of 360°.

The pendulum speed is also adjustable depending on the IPX. For the IPX3, 15 times per minute can be reached, and for the IPX4, 10 times per minute can be reached. The diameter of the water spray hole measures 0.4mm, and the spacing between the water jet holes measures 50mm. The turntable speed can range from 1-10rpm and the flow rate of water jets measures 0.07 L/min (+5%).

The test time is also adjustable, ranging from 1-999,999 minutes. The drenching water pressure is adjustable between 80-100Kpa and the power supply for this device is single-phase AC220V, 50/60HZ.

Applications:

IP34 rain test chamber is capable of providing different intensity of simulated rain environment to conduct various tests on the waterproof performance of electronic products like cell phones, tablet PCs, and e-books. It is equipped with both heater and cooler inside to maintain the temperature and humidity as per the requirements of different products.

Support and Services:

We provide technical support and service for Environmental Test Chambers. Our service team is available to help with any questions or concerns you may have about your test chamber, and can offer advice on how best to use and maintain your equipment.

We provide:

• Installation and startup assistance
• Troubleshooting and repair services
• Preventative maintenance
• Training and support

Contact us today to learn more about our Environmental Test Chamber Technical Support and Service.

Packing and Shipping:

Environmental Test Chamber Packaging and Shipping:

• Environmental Test Chambers are packaged in strong, durable cartons.
• Each carton contains a safety manual and instruction for use.
• The chambers are then shipped to the desired location.
• The chambers can be shipped via truck, rail, or air.
• The chambers are secured in the shipping container with foam padding.
• The chamber is inspected and tested upon delivery before it is released.
