±0.5°C Temperature Uniformity And 50mm Spacing Of Water Spray Holes In IP Test Chamber

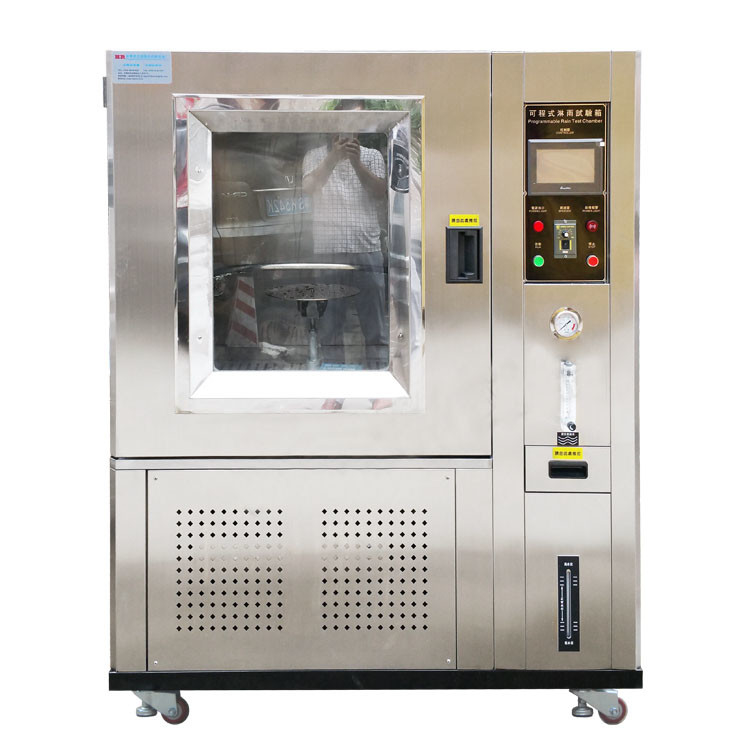

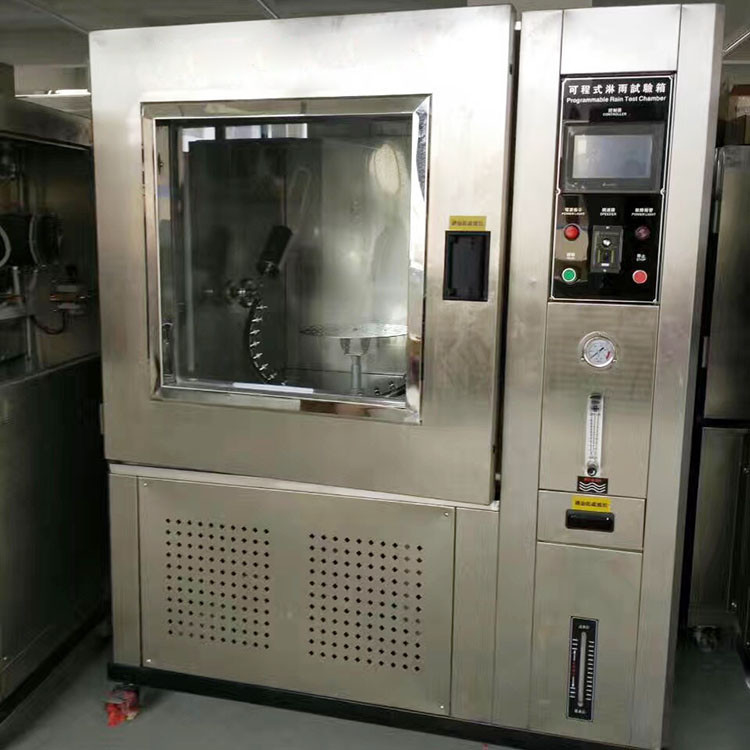

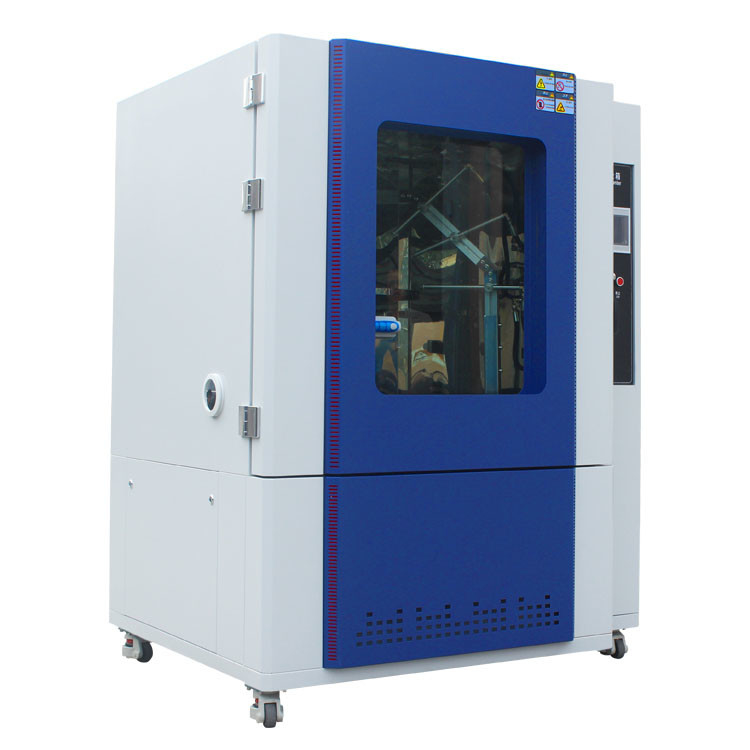

Product Description:

This product is specially designed for the assessment of electrical products in a rain environment, providing a means to ensure the good performance of equipment and components testing. It adopts a comprehensive control system and frequency conversion technology, the rainfall test specimen’s frame of rotary angle, water spray pendulum’s swing angle and water spray swing frequency can be adjusted flexibly.

It involves scientific design and can simulate various rain environments such as dripping, drenching, splashing and spraying, ensuring the accuracy of the test. Also, this product has a safety switch and a drip tray, which provide an extra safeguard and make working with this product even convenient and secure.

Features:

The inner chamber of the machine is made of stainless steel 304. For the outer case, it adopts either stainless steel 304 or powder coating. An adjustable-speed round turntable is installed on the sample table. Furthermore, it is equipped with a bunch of safety functions, which include power overload protection, short-circuit protection, grounding protection, water shortage protection and alarm signaling tips.

Technical Parameters:

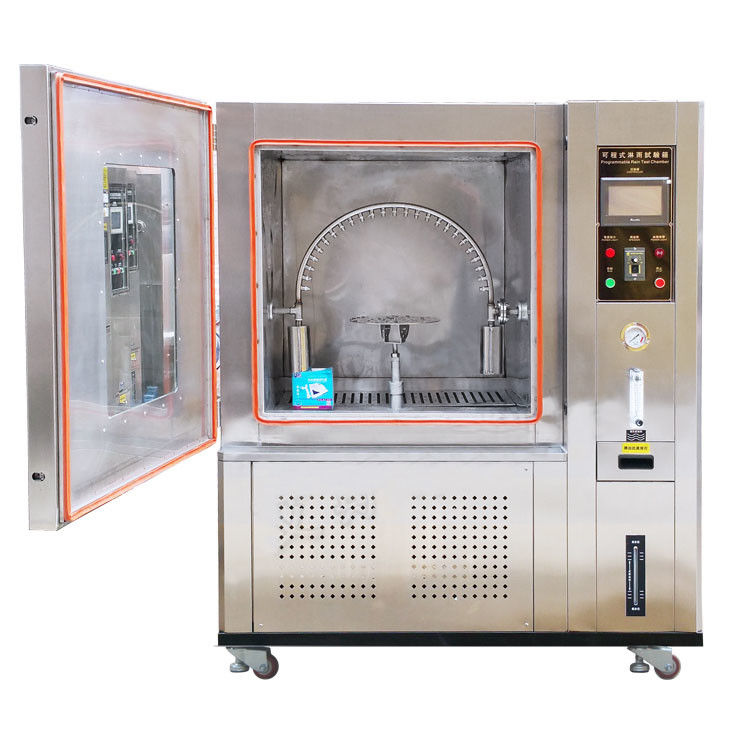

This product requires 304 stainless steel for its inner box material, and stainless steel for its outer box material. The observation window is made by waterproof tempered glass. The pendulum angle has to up to IPX3: ±60° along the vertical line, and 120° in total. And IPX4: Left and right along the vertical line ± 180 °, a total of 360 °. Furthermore, the pendulum speed of IP3 has to be 15 times /min, and the IP4 has to be 10 times / min. In terms of water spray hole, the diameter is 0.4mm and its spacing is required to be 50mm, and the turntable speed is 1-10rpm. The flow rate of water jets must be 0.07 L/min +5%. The test time is adjustable among 1~999,999min, and the drenching water pressure must be 80~100Kpa. Lastly, the power supply of it should be single-phase, AC220V, 50/60HZ.

Applications:

IP34 rain test chamber can simulate varied levels of rain environment to test the waterproof abilities of different electronic products, such as cell phones, tablet PCs, e-books and so on. It is equipped with both a heater and a cooler that can control the temperature and humidity in order to match the specific requirements of the products.

Support and Services:

At [Company Name], we provide our customers with a range of technical support and service options to ensure the successful operation of their Environmental Test Chamber. Our team of experienced engineers and technicians are available to provide onsite and remote troubleshooting, preventive maintenance, and repair service.

We can also provide:

• Consulting services to ensure the correct application of the Environmental Test Chamber
• Onsite support and training for operators and technicians
• Spare parts and component supply
• Software upgrades and updates

For more information about our Environmental Test Chamber Technical Support & Service, please contact us.

Packing and Shipping:

Environmental Test Chamber Packaging and Shipping:

All Environmental Test Chambers are carefully packaged in protective packaging materials to ensure safe transport. Special attention is paid to the corners and edges to prevent damage to the chamber during transport. All chambers are delivered in a standard palletized and stretch-wrapped format with a heavy-duty corrugated box to ensure safe transport.
