| Place of Origin: | CHINA |
| Brand Name: | YUYANG |
| Certification: | IEC60068-2-1, IEC60068-2-2, GJB150.3, GJB150.4, GJB150.9 |
| Model Number: | YYE006 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | Wooden Box |
| Delivery Time: | 1-3 WORK DAYS |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 100 SETS A MONTH |
| Temperature Range: | -70℃~150°C | Humidity Range: | 5%～98 RH |
|---|---|---|---|
| Inner Chamber Volume: | 80L, 150L, 225L, 408L, 800L, 1000L | Chamber Material: | Inner: SUS304 Stainless Steel, Outer: SUS201 Stainless Steel With Paint |
| Test Chamber: | Explosion-proof | Observation Window: | Three-layer Vacuum Glass, Anti-sweat, Explosion-proof |
| Test Chamber Lighting: | High Brightness Lighting | Temperature/Humidity Adjust: | Balance Temperature Humidity Control |
| High Light: | 800L Environmental Test Chamber,Explosion Proof Environmental Test Chamber,Programmable Lab Environmental Test Chamber |
||

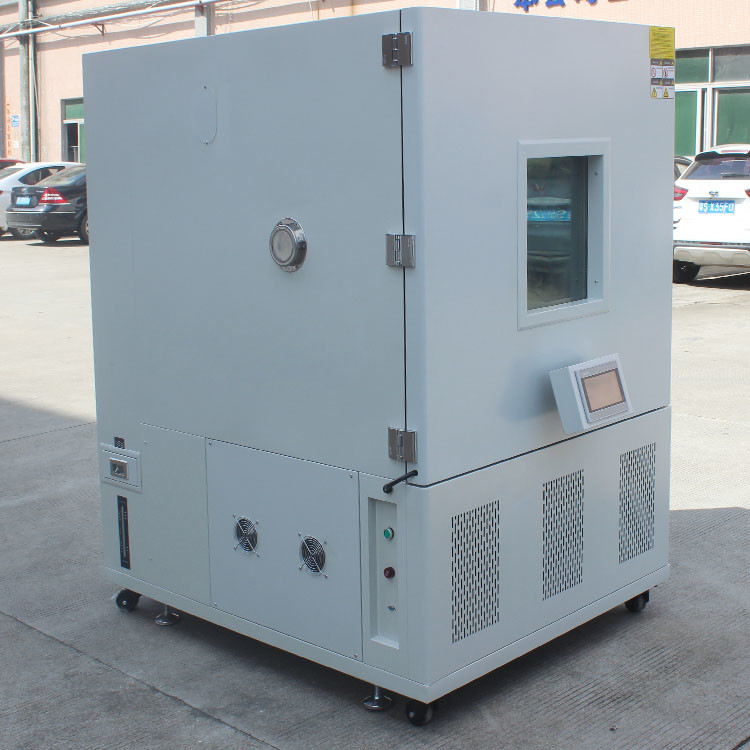

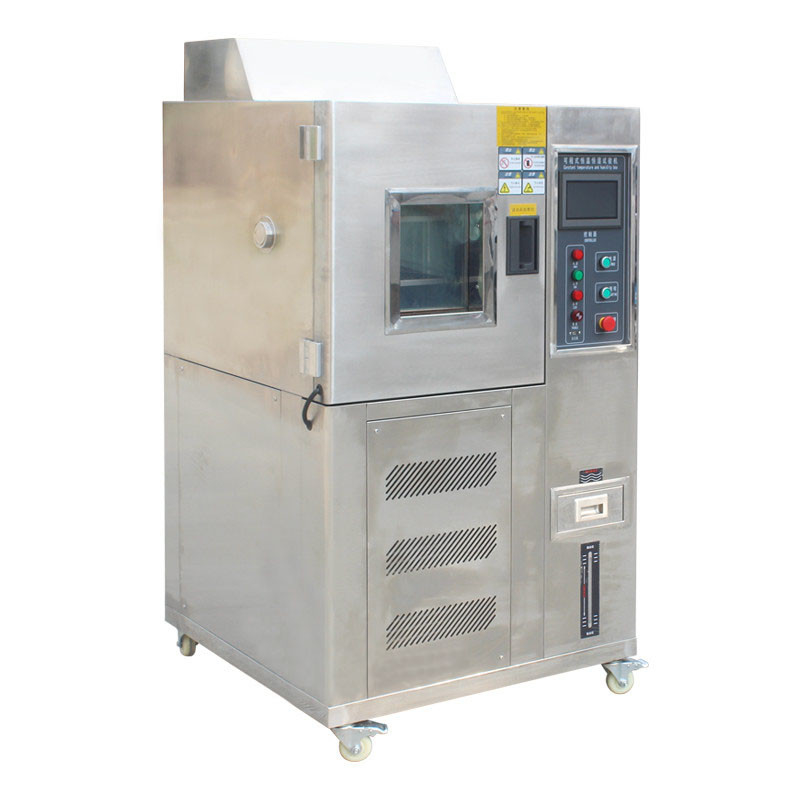

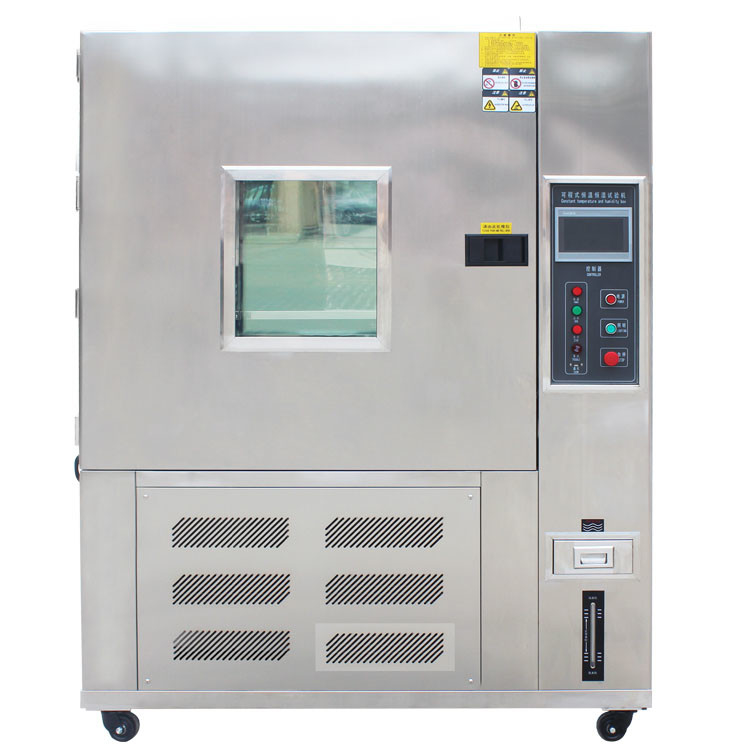

Programmable Lab Constant Temperature Humidity Control Cabinet Environmental Chamber
Product Description
IEC62133 UN38.3 Environmental Simulate Test Chambers, Constant Temperature and Humidity Chamber
Description
The programmable temperature and humidity tester also can ba named as environmental tester.
The tester simulate the environment of low temperature, high temperature, high temperature and high humidity, low temperature and low humidity. It is used for testing high and low temperature, moisture resistance of various products.
Features
1. High-texture appearance, the surface handled through the matte stripes, and use of planar non-reactive handles, easy to operate, safe and reliable.
2. Rectangular complex glass window can be viewed the testing sample, windows with anti-sweat heater device that prevents water vapor condensation, and high-brightness PL light.
3. Double-insulated airtight container, which can effectively isolate the internal temperature of leakage.
4. With an external water supply system can be easy to supply water and automatically reuse.
5. Compressor circulatory system from French and use environmentally refrigerants ( R404).
6. PLC controller, touch screen import and display the measure values and curve
7. Controller with multi-segment program edited, temperature and humidity can be controlled quickly (OUICK) or slope (SLOP).
8. Built-in mobile pulley easy to move and has a strong positioning screw fixed position
a. The tester is widely used in various industry.
b. Programmable controlling system
c. TEMI880 colorful touch screen
Specifications
|
Capacity |
80L |
150L |
225L |
4085L |
800L |
1000L |
||
|
Temperature range |
-70/-40/-20/0/+20 °C~+100/+150°C |
|||||||
|
Humidity range |
20/30%...98%RH |
|||||||
|
Controlling accuracy |
Temperature |
±0.3℃ |
||||||
|
|
Humidity |
±2% RH |
||||||
|
Uniformity |
Temperature |
±1.5 ℃ |
||||||
|
|
Humidity |
±3% RH |
||||||
|
Temperature raising speed |
Average 3℃/ min |
|||||||
|
Cooling speed |
Average 1℃/ min |
|||||||
|
Dimension of inner box |
W |
400 |
500 |
500 |
600 |
1000 |
1000 |
|
|
D |
500 |
600 |
750 |
850 |
1000 |
1000 |
||
|
H |
400 |
500 |
600 |
800 |
800 |
1000 |
||
|
Dimension of external |
W |
920 |
1050 |
1050 |
1150 |
1600 |
1600 |
|
|
D |
1400 |
1500 |
1650 |
1750 |
1900 |
1900 |
||
|
H |
900 |
1100 |
1200 |
1400 |
1600 |
1600 |
||
|
Test chamber materials |
Inner box: A- grade stainless steel sheet |
|||||||
|
Insulation material |
PU foam + PE foam |
|||||||
|
Refrigeration system |
Imported closed compressor / eco-friendly refrigerant |
|||||||
|
Protection device |
Fuse switch, over-pressure for compressor, over-heat, over- current, |
|||||||
|
Power |
AC 1ψ3W 220V or 3ψ5W 380V |
|||||||
|
Standard configuration |
Observation window, testing hole, shelf, time accumulator, lamp |
|||||||
|
Standards |
IEC 68-2-6(FC), GB2423, JJG189-97, GB/T13309-91 |
|||||||
