YY-II-RL 1000N Thermal Conductivity Tester Heat Flow Method

YY-II-RL 1000N Thermal Conductivity Tester Heat Flow Method

1000N Thermal Conductivity Tester

Heat Flow Thermal Conductivity Tester

Place of Origin:

DONGGUAN

Brand Name:

YUYANG

Certification:

CE. iso9001

Model Number:

YY-II-RL

Contact Us
Request A Quote
Product Details
Temperature Range:
20~300℃
Temperature Resolution:
0.01℃
Refrigeration System:
Compressed Air /external Water Bath
Sample Size:
Φ50mm, Thickness 0.1-30mm
Thermal Resistance:
0.000005 ~ 0.05 M2•K/W
Thermal Conductivity Range:
0.010~45W/m*K
Repeatability:
±2%
Accuracy:
≤±3%
Force Control Range:
0-1000N
Displacement Control:
0-30.00mm
Environmental Condition:
Room Temperature: 18~28℃, Humidity: 20~80%RH
Data Result Analysis:
Automatic Thermal Analysis Software, Which Can Analyze And Output Testing Parameters Fast And Accurately, Windows 10/7 English
Supply Voltage:
220V/ 50Hz, Power: 3.0kw
Main Configurations:
YY-II-RL Testing Host, Thermostatic Water Bath, Testing Software(USB), Reference Sample
Highlight:

1000N Thermal Conductivity Tester

,

Heat Flow Thermal Conductivity Tester

Payment & Shipping Terms
Minimum Order Quantity
1 SET
Price
USD 11957.00/SET
Packaging Details
plywood case
Delivery Time
30 days
Payment Terms
T/T
Supply Ability
30 SET per month
Product Description

YY-II-RL Thermal Conductivity Tester Heat Flow Method



Introduction:



This thermal conductivity tester measures the thermal conductivity, thermal diffusivity, and hot-melt of different materials by using heat flow method. Refer to standard MIL-I-49456A The thermal conductivity of thin solid electric insulation heat transfer performance testing standards, D5470-06, ASTM E1530 ,ASTM C 518, ISO 8301, JIS A 1412, DIN EN 12939, DIN EN 13163 and DIN EN 12667 and other relevant international standards.

Automatic plate movement and sample thickness measurement, all test parameters and calibration data can be stored in the computer. Conduct temperature programming, data viewing and storage for calibration test and sample test. The instrument is used to test polymer materials, ceramics, insulation materials, composite materials, non-metallic materials, thermal pad, silicone grease, and other materials with low and medium thermal conductivity. Only small samples are needed. Thin films can be accurately measured using multilayer techniques

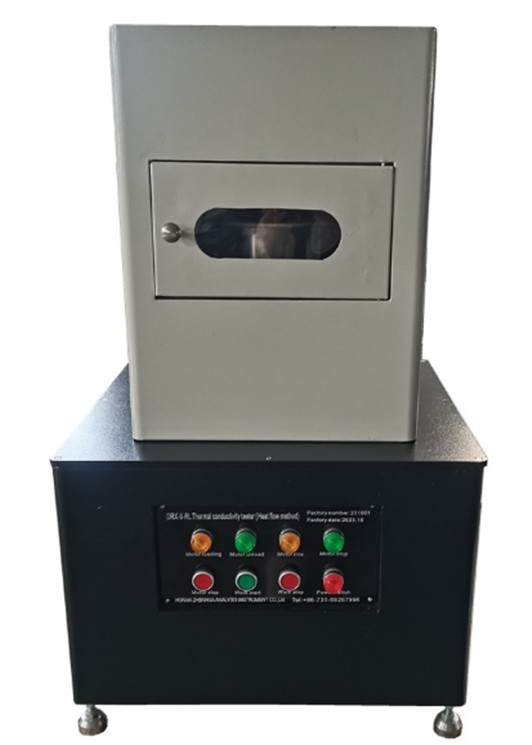

YY-II-RL 1000N Thermal Conductivity Tester Heat Flow Method 0
