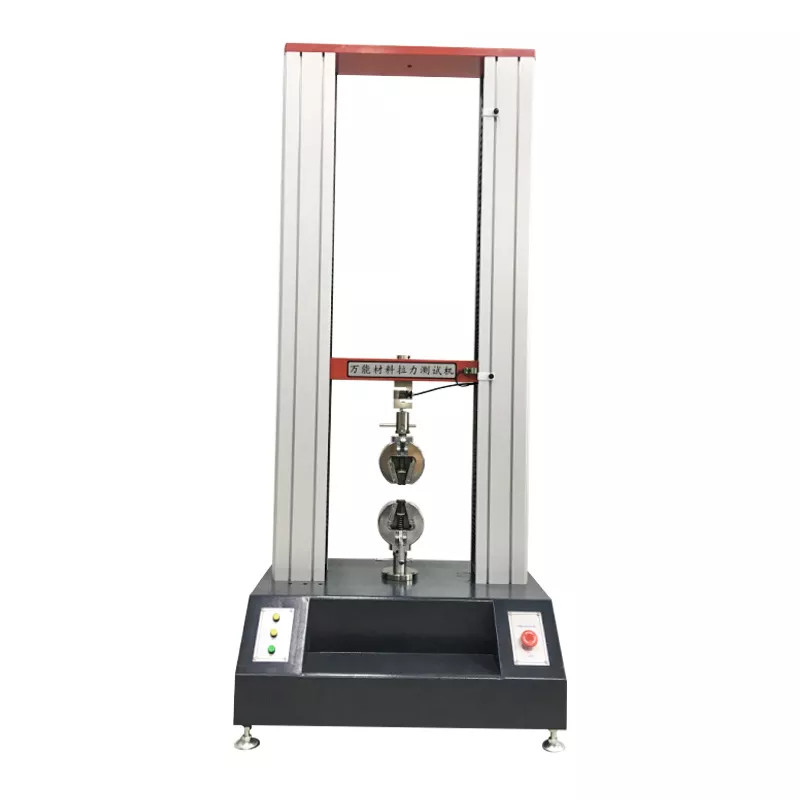

Name: Servo Hydraulic Universal Fatigue Testing Machine
Brand: DONGGUAN YUYANG INSTRUMENT CO., LTD
SKU: YYE1086
Price: 25,000.00 USD
Availability: InStock

Home > products > Tensile Testing Machine >

Servo Hydraulic Universal Fatigue Testing Machine

Universal Fatigue Testing Machine

Servo Hydraulic Universal Fatigue Testing Machine

Servo Hydraulic fatigue testing machine

Place of Origin:

DONGGUAN

Brand Name:

YUYANG

Certification:

Model Number:

YYE1086

Request A Quote

Servo Hydraulic Universal Fatigue Testing Machine

Product Details

Capacity:

100,200,300,500kg

The Max Stretch Stroke:

600mm

The Test Speed:

0.01-500 Mm/min

Power Supply:

220V 50Hz

Displacement Measurement Accuracy:

> 0.01 Mm

The Test Force Measuring Range:

2% - 100%

Highlight:

Universal Fatigue Testing Machine

Servo Hydraulic Universal Fatigue Testing Machine

Servo Hydraulic fatigue testing machine

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

negotiable

Packaging Details

Wooden Boxes

Delivery Time

5-20 Days

Payment Terms

T/T

Supply Ability

300 Set/Sets per Month

Computer Control Tensile Strength Test Machine For Yarn / Textile / Plastic

Get Best Price

Video

YYL-006 Mechanical Equipment Automatic Electronic Tensile 100kn 50kn Hydraulic Universal Testing Machine For Geocell Straps

Get Best Price

Video

AC220V YYL-001 10kn 20kn 50kn 100kn 200kn 300kn Universal Tensile Strength Testing Machine For Terminal Tensile Testing

Get Best Price

Video

600kn Laboratory Rock Bolt Test Instrument For Anchorage Rebar Tensile Testing 10kn 100kn Universal Testing Machine 2ton 5ton 10 Ton Plastic Rubber Steel Ropes Metal Material Utm Tensile Str

Get Best Price

86-769-26622869

Contact Now

Product Description

Universal Testing Machine 500kn Automatic Tensile Testing Machine Tensile Testing Machine For Plastic

Descriptions:

Tensile Testing Machine is used to test tension, compression, shearing force, adhesion, peeling force, tear strength,ect of specimen, semi`product and finished product in the field of rubber, plastic, metal, nylon,fabric,paper, aviation, packing, architecture, petrochemistry, electric appliance, automobile,...etc. which are the basic facilities for input quality control (I.Q.C), Quality Control (Q.C.), Physical Inspection,Mechanics Research and Material Development.

Design standards: ASTM D903, GB/T2790/2791/2792, CNS11888, JIS-K6854, PSTC7

Specifications:

Can be customized:

Model	YY-1066A	YY-1066B
Capacity	1,2,5,10,20,50,100,200,500,1000,2000 optional(or customize)
Accuracy level	0.5
Effective pull space	1200mm(contain grips)
Effective test width	400mm	320mm
Effective test force range	0.02/100~100%
Speed accuracy	Less than ±0.5%
Displacement accuracy	Less than ±0.5%
Deformation test accuracy	Less than ±0.5%
Sensor	Imported high accuracy sensor
Test force resolution	1/250,000	1/150,000
Test Speed	0.1~500mm/min	50~500mm/min
Motor system	Panasonic servo motor + Panasonic sevor drive	AC motor + AC drive
Software controlling system	Fully computer control, can do constant stress, constant strain, constant displacement,ect. test
Lifting control	Computer control or manual button control
Grips	Customize according to customer requirements
Optional parts	Lenovo computer
Dimension	80×50×150cm
Weight:	About 145 kg
Operation method	computer control
Operation system	TM2102
Power	1Ø,220V/50HZ

Features:

1. Adopting windows platform, and all the parameter settings can be processed in the dialog box, and it
operates easily.
2. Using a single-screen operation; do not need to switch the screen
3. With three languages in Simplified Chinese, Traditional Chinese and English, the software interface
can be switched easily
4. The pattern of Test reports can be self designated; test data can be displayed directly in the main screen.
5. Choosing translational, comparative mode at the same time to make a number of curve data comparison
6. With a variety of measurement units, Measure In Imperial & Metric are switchable;
7. With self-return & auto-correction function
8. With automatic magnification function, in order to achieve the most appropriate size of the graphics
