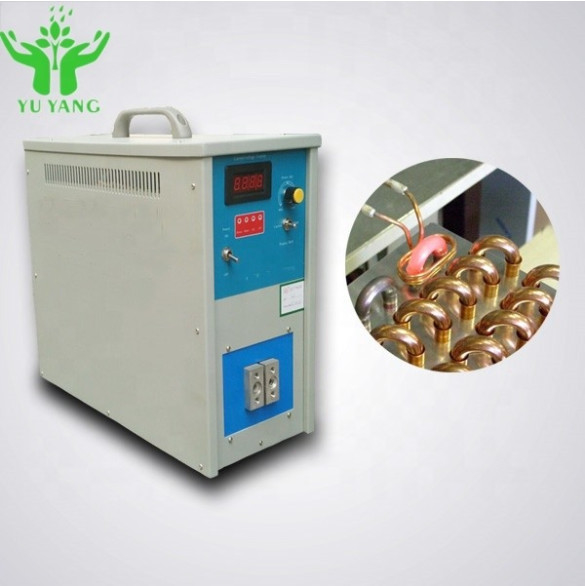

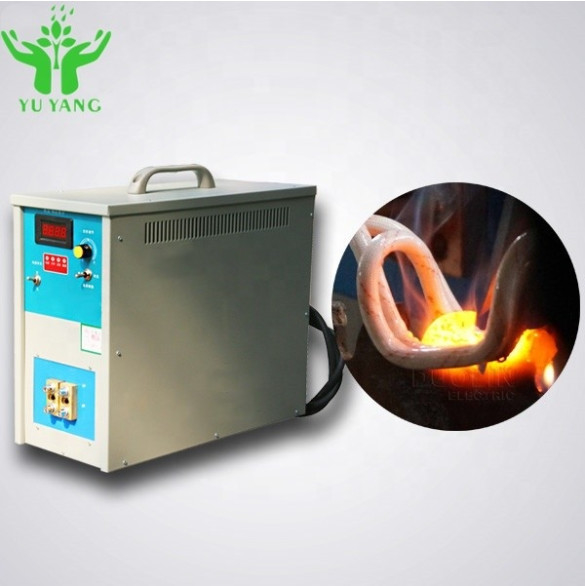

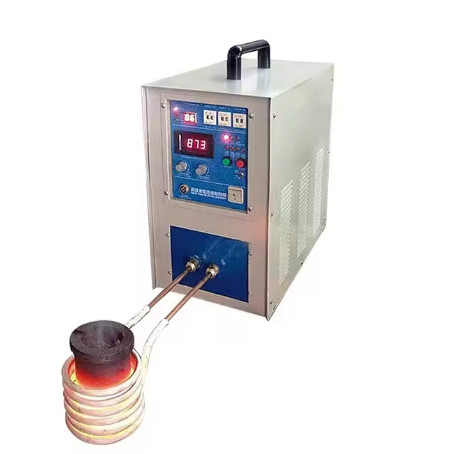

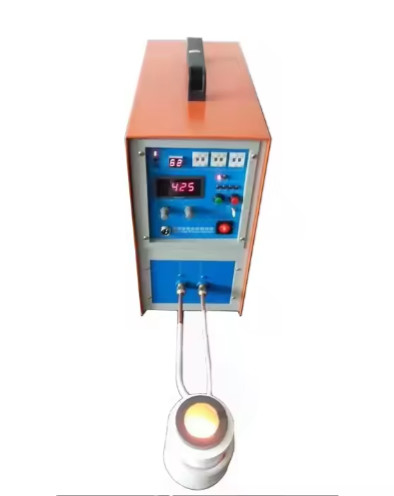

Portable 15KW High Frequency Electromechanical Induction Heating Machine
Product Description
1. The Induction Melting Furnace Equipment is suitable for melting various metals like steel, stainless steel, brass, copper, gold, and others.
2. Thanks to the stirring effect of the magnetic force, the molten pool can be stirred during the melting process. This helps the flux
and oxides float more easily, enabling the production of high-quality casting parts.
3. It has a wide frequency range from 1KHZ to 20KHZ. The working frequency can be adjusted by changing the coil and
compensating capacitor, based on factors such as the type of metal being melted, the amount of metal, the desired stirring effect,
the acceptable working noise level, and the melting efficiency.
4. Compared with SCR medium frequency furnaces, this induction melting furnace can save at least 20% or more energy.
5. It is small and lightweight, and there are many operation modes available to melt different quantities of metals.
It is suitable not only for factories but also for colleges and research institutions.
6. It can keep melting continuously for 24 hours.
7. It is simple to change the melting furnace to fit different capacities, materials, and pouring methods, making it adaptable to various requirements.
Specifications
| Model |
YY-15AB |
| Input power desire |
Single phase 220V 50HZ |
| Oscillate power max |
15KW |
| Max input current |
37A |
| Oscillate frequency |
30-100KHZ |
| Cooling water desire |
>0.2MPa 2-6L/Min |
| Duty cycle |
80% 40°C |
| Dimensions(L*W*H) |
500*380*520mm |
Fraction:
1. Brazing, Welding, Soldering
Brazing is a fusion and solidification process which refers to the use of magnetic field induction heating to make the temperature of metal materials junction reach the melting point of welding, or the temperature of metal materials to reach between nonmetallic material.
(1). Any industry of add welding material connection.
(2). Do not add welding material connection.
2. Melting
Mainly used for melting and heat preservation of Cast iron, Alloy steel, Stainless steel, Gold, Silver, Other magnetic materials, as well as Copper, Brass, Bronze, Aluminum, Zinc, and Other non-magnetic materials.
3.Forging Molding
M.F. forging furnace is used for the heating of bars and rods, the material can be steel, stainless steel, copper, brass ,aluminium and so on. The heating can be the whole rod, end of the rod or middle part of the rod.
Application Examples:Fasteners, Hardware tools, Automobile and motorcycle accessories, Rigging, Pipe fittings, Twist drill, Atlas, Table, Mould parts, Standard parts, Handicrafts, Machinery parts, Brass lock, Lock, Rivets, Other hardware and metal accessories.
