Name: Programmable Climate Chamber Temperature Humidity Test Chamber Benchtop Humidity Chamber
Brand: DONGGUAN YUYANG INSTRUMENT CO., LTD
SKU: YYE009
Price: 2000 USD
Availability: InStock

Home > products > Environmental Test Chamber >

Programmable Climate Chamber Temperature Humidity Test Chamber Benchtop Humidity Chamber

environmental chamber

custom environmental chambers

environmental control chamber

Place of Origin:

CHINA

Brand Name:

YUYANG

Certification:

IEC60068-2-1, IEC60068-2-2, GJB150.3, GJB150.4, GJB150.9

Model Number:

YYE009

Request A Quote

Product Details

Temperature Range:

-70℃~150°C

Humidity Range:

20%～98% RH

Inner Chamber Volume:

80L, 150L, 225L, 408L, 800L, 1000L

Accuracy/ Uniformly:

±0.1℃;±0.1%R.H./ ±1.0℃;±3.0%R.H.

Accuracy / Volatility:

±1.0℃;±2.0%R.H./ ±0.5℃;±2.0%R.H.

Observation Window:

Three-layer Vacuum Glass, Anti-sweat, Explosion-proof

Inside Material:

Stainless Steel SUS 304#

Insulation Material:

High-temperature High-density Amino Acid Ethyl Ester Foam Insulation Materials

Highlight:

environmental chamber

custom environmental chambers

environmental control chamber

Payment & Shipping Terms

Minimum Order Quantity

Price

$2000

Packaging Details

Wooden Box

Delivery Time

1-3 WORK DAYS

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

20 SETS A MONTH

Stainless Steel Customize Built Free Standing Ovens Electric Aluminium Coating

Get Best Price

High Configuration Salt Spray Test Machine X-60 Salt Spray Corrosion Test Equipment

Get Best Price

Programmable Low Temperature Environmental Test Chamber For Temperature Humidity Test Machine

Get Best Price

Lab Weathering Tester Battery Sprinkler Uv Aging Environmental Test Chamber

Get Best Price

+86-13825723571

sales002@yuyangtest.com

86-769-26622869

Contact Now

Product Description

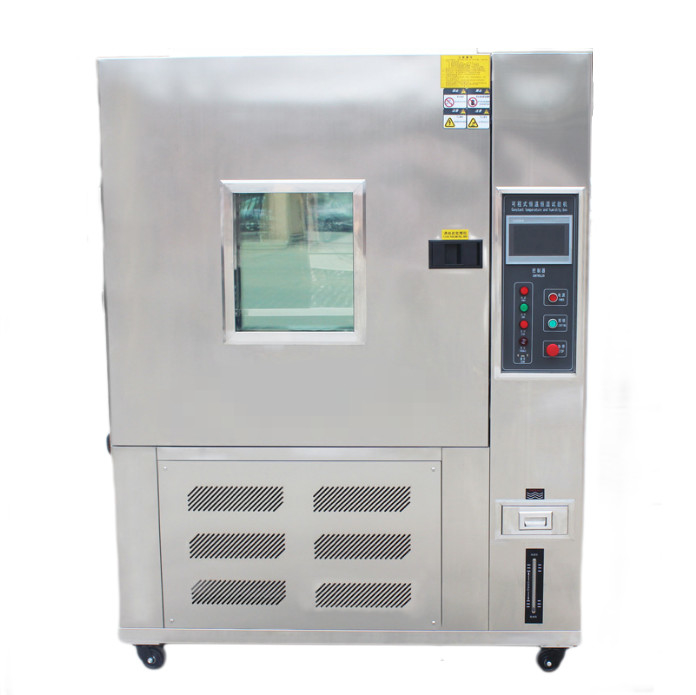

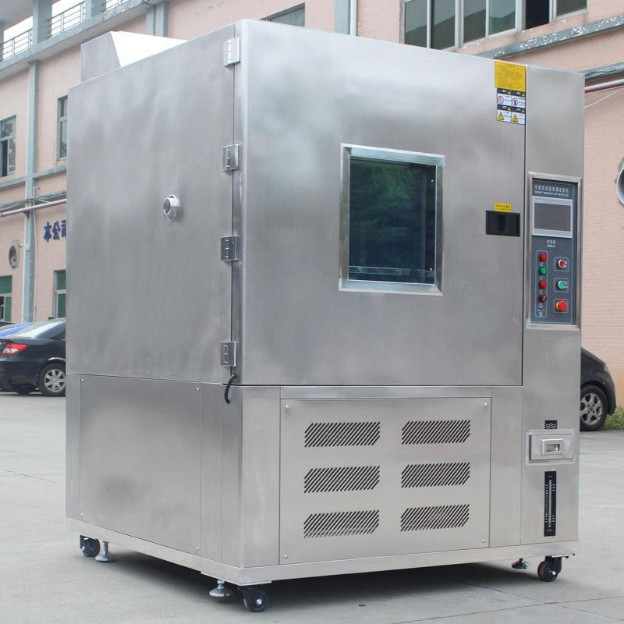

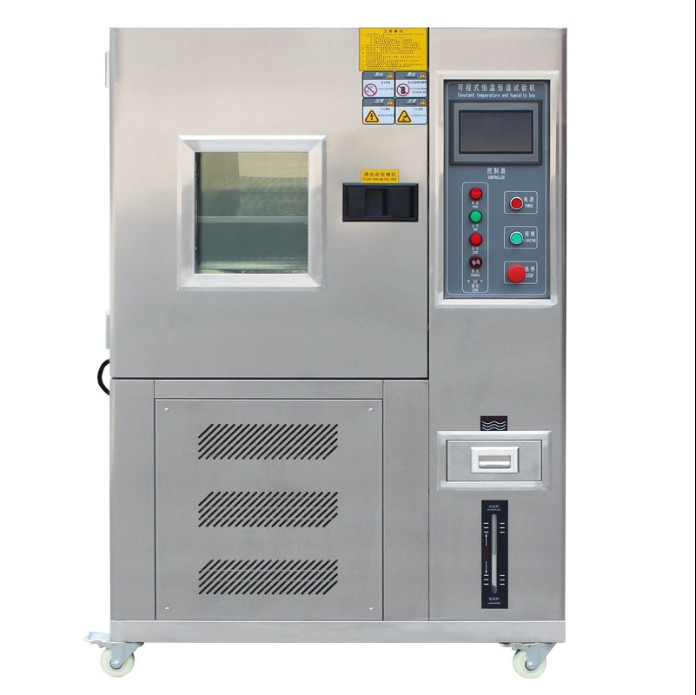

Programmable Climate Chamber Temperature Humidity Test Chamber Benchtop Humidity Chamber

Introduction

Temperature Humidity Test Chamber is for conditioning of samples prior to testing. It also can be used for a variety of materials of high - low temperature alternating test. The test temperature, humidity, time can be programmed. Provides conditions of temperature form -70°C to +150°C and of humidity form 20% to 98%.

Description

The programmable temperature and humidity tester also can ba named as environmental tester. The tester simulate the environment of low temperature, high temperature, high temperature and high humidity, low temperature and low humidity. It is used for testing high and low temperature, moisture resistance of various products.

Features

Temperature and Humidity Climatic Test Chamber: High quality appearance, Matte Line processing on the surface, and embedded and non-counteractive handle, easy operation, safe and reliable.

Specifications

Capacity		80L	150L		225L	4085L	800L	1000L
Temperature range		-70/-60/-40/-20°C~+150°C
Humidity range		20%~98%RH
Controlling accuracy		Temperature		±0.5 ℃
		Humidity		±1% RH
Distribution accuracy		Temperature		±1.0 ℃
		Humidity		±2% RH
Temperature raising speed		Average 3℃/ min
Cooling speed		Average 1℃/ min
Dimension of inner box	W	400	500		500	600	1000	1000
	D	500	600		750	850	1000	1000
	H	400	500		600	800	800	1000
Dimension of external	W	920	1050		1050	1150	1600	1600
	D	1400	1500		1650	1750	1900	1900
	H	900	1100		1200	1400	1600	1600
Inside material		Stainless steel SUS 304#
Insulation material		High-temperature high-density amino acid ethyl ester foam insulation materials
Refrigeration system		Imported closed compressor / eco-friendly refrigerant
Protection device		Fuse switch, over-pressure for compressor, over-heat, over- current, over-temperature, over-load for air fan, fuse protective device and water-lack alarm
Power		1Φ 220VAC±10% 50/60Hz & 3Φ 380VAC±10% 50/60Hz
Standard configuration		Observation window, testing hole, shelf, time accumulator, lamp
Standards		IEC 68-2-6(FC), GB2423, JJG189-97, GB/T13309-91

Programmable Climate Chamber Temperature Humidity Test Chamber Benchtop Humidity Chamber 0

Application

Below material can be tested on the Temperature Humidity Climatic Test Chamber

Programmable Climate Chamber Temperature Humidity Test Chamber Benchtop Humidity Chamber 4

DONGGUAN YUYANG INSTRUMENT CO.,LTD is Located in Wanjiang District (Dongguan City, Guangdong Province,China),a famous historical town with prosperous industry and convenient transportation.

We are a high-tech enterprise which is specialized in developing and manufacturing Fire Testing Equipment, Building Material Fire Tester, Wire and Cable Fire Tester, Environmental Test Chamber, Textile Testing Equipment, Toys Testing Equipment and etc.

Decades of research and development strengthen the leading edge of YUYANG in this field, and established as an crucial role in R&D on high quality and high-cost performance of testing equipment. YUYANG's testing equipment are widely used in various field: scientific institutions, colleges, inspection institutions, auto parts, electronics, electricals, lithium battery, LED, photoelectricity, mobile, plastic and rubber, display, telecommunication, chemical industry, aerospace, building material and product, wire and cable, toys, furniture, textile and fabrix, etc. All YUYANG testing equipment are designed according to international test standards, such as ISO, ASTM, DIN, EN, GB, BS, JIS, ANSI, UL, TAPPI, AATCC, IEC, VDE, CSA,CEN and so on.

DONGGUAN YUYANG INSTRUMENT CO.,LTD looks forward to cooperating with customer all over the world.

If you are interested in any of our products or would like to discuss a custom order. Please feel free to contact us. We are looking forward to forming succesful business with new clients around the world in the near future.
