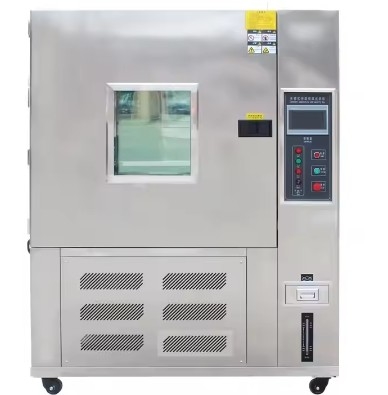

Name: Lab Supplies Programmable Constant Temperature Humidity Chamber Test Equipment
Brand: DONGGUAN YUYANG INSTRUMENT CO., LTD
SKU: YY-6004
Price: 11957.00 USD
Availability: InStock

Home > products > Environmental Test Chamber >

Lab Supplies Programmable Constant Temperature Humidity Chamber Test Equipment

Humidity Chamber Test Equipment

Programmable Constant Temperature Chamber

Lab Supplies

Place of Origin:

CHINA

Brand Name:

YUYANG

Certification:

IEC60068-2-1, IEC60068-2-2, GJB150.3, GJB150.4, GJB150.9

Model Number:

YY-6004

Request A Quote

Product Details

Customized Support:

OEM, ODM, OBM

Place Of Origin:

Guangdong, China

Power:

50/60Hz

Accuracy:

±0.1-0.2C

Voltage:

110V

Brand Name:

Yuyang

Inside Size:

40x50x40 W*H*D(cm)

Outside Size:

90x136x94 W*H*D(cm)

Inner Size: WHD(cm):

35*36*40

Temperature Range:

-40C-+ 150C

Power:

AC220V 50/60Hz & 1

Highlight:

Humidity Chamber Test Equipment

Programmable Constant Temperature Chamber

Lab Supplies

Payment & Shipping Terms

Minimum Order Quantity

Price

negotiation

Packaging Details

Wooden Box

Delivery Time

1-3 WORK DAYS

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

100 SETS A MONTH

Constant Environmental Cycling Control High-low Temperature Climatic Chamber With Controlled Temperature and Humidity

Get Best Price

Video

Lab Supplies Programmable Constant Temperature Humidity Chamber Test Equipment

Get Best Price

UV Aging Test Lamp For Bituminous Materials With 220v Voltage Current Power Monitor Power Factor Frequency Energy Meter

Get Best Price

Customizable ODM OBM Electronic Salt Fog Corrosion Test Device With Temperature Control Meter 1.0-6.0

Get Best Price

86-769-26622869

Contact Now

Product Description

-70~+150C Climate Chamber Constant Temperature And Humidity Testing Chamber

Equipment summary:

Temperature Humidity Environmental Test Equipment is applied to test the materials in heat-resistance, cold-resistance,
dry-resistance, moisture-resistance. It is simple to operate and program easy to edit. It can show the set values and operative time.

Applicable industries:

Temperature Humidity Environmental Test Equipment applied to control the product quality, such as electronic, plastic products, electrical appliances, instruments, food, vehicles, metals, chemicals, building materials, aerospace, medical care and so on.

Specifications

Capacity		80L	150L		225L	4085L	800L	1000L
Temperature range		-70/-40/-20/0/+20 °C~+100/+150°C
Humidity range		20/30%...98%RH
Controlling accuracy		Temperature		±0.3℃
		Humidity		±2% RH
Uniformity		Temperature		±1.5 ℃
		Humidity		±3% RH
Temperature raising speed		Average 3℃/ min
Cooling speed		Average 1℃/ min
Dimension of inner box	W	400	500		500	600	1000	1000
	D	500	600		750	850	1000	1000
	H	400	500		600	800	800	1000
Dimension of external	W	920	1050		1050	1150	1600	1600
	D	1400	1500		1650	1750	1900	1900
	H	900	1100		1200	1400	1600	1600
Test chamber materials		Inner box: A- grade stainless steel sheet External box: matt stainless steel sheet with line processing or steel rolling with plastic spraying finish
Insulation material		PU foam + PE foam
Refrigeration system		Imported closed compressor / eco-friendly refrigerant
Protection device		Fuse switch, over-pressure for compressor, over-heat, over- current, over-temperature, over-load for air fan, fuse protective device and water-lack alarm
Power		AC 1ψ3W 220V or 3ψ5W 380V
Standard configuration		Observation window, testing hole, shelf, time accumulator, lamp
Standards		IEC 68-2-6(FC), GB2423, JJG189-97, GB/T13309-91
