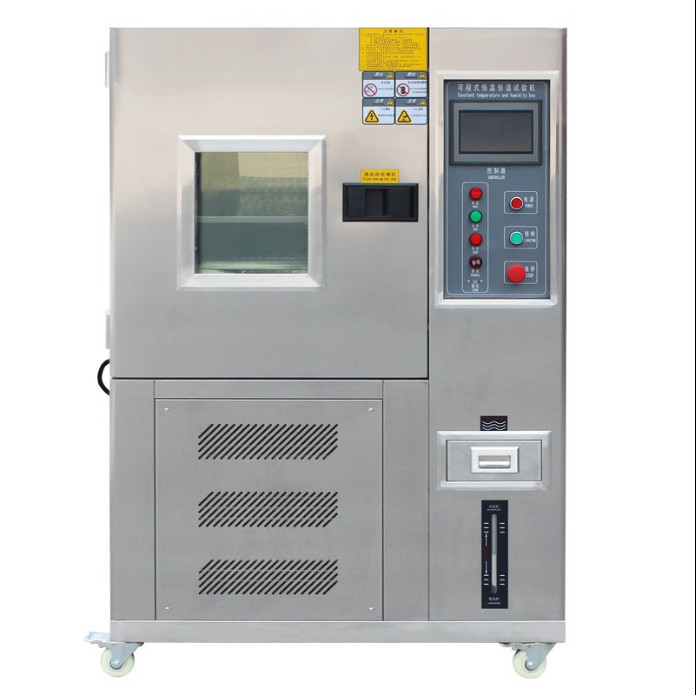

Customizable Humidity Chamber Temperature Stability Enviornmental Chamber
Application:
This chamber is for temperature & humidity tests, cold resistance tests, thermal cycle tests, ultra low-temperature tests, high-temperature tests, storage conditions, and calibration functions.
Supply a large range of standard and custom temperature and humidity test chambers to suit many types of environmental test conditions. Our climate and humidity test chambers are available in a variety of sizes and configurations, ranging in size from 50Ltier to 3000Liter, including benchtops, floor type, and walk-in. Floor types have more than 26 models to achieve various tests.
Related Standards:
IEC600628 2-1/2/3/30, GB/T2423/5170/10586, JIS C60068, ASTM D4714, CNS3625/12565/12566, CE mark, ISO17025 calibration
Features:
1. Floor Type
2. Wide temperature ranges and volume selection
3. Available in sizes from 50L to 3000L
4. Standard and custom
5. Temperature control and display unit
6. Humidity control and display unit
7. Programmable color LCD touch screen controller
8. Multi-language interface
9. USB and Ethernet
10. Casters, shelf, and cable port are standard
11. Build-in water tank
12. Adjustable and removable sample shelves
13. Safety protection system
Some models in stock
| Model |
YY-100 |
YY-225 |
YY-500 |
YY-800 |
YY-1000 |
| Inner Size (mm) |
400*500*500 |
500*600*750 |
700*800*900 |
800*1000*1000 |
1000*1000*1000 |
| External Size (mm) |
860*1050*1620 |
960*1150*1860 |
1180*1350*2010 |
12800*1550*2110 |
1550*1550*2110 |
| Volume(L) |
100 L |
225L |
500L |
800L |
1000L |
| Tempature Range (℃) |
A: -20℃ ～+150 ℃ B:-40℃ ～+150 ℃ C:-70℃ ～+150 ℃
|
| Humidity Range (RH) |
20% ~ 98% RH |
| Temp&Humi Fluctuation |
±0.5℃；±2.5%RH |
| Temp&Hum Departure |
±0.5℃-±2℃；±3%RH(>75%RH); ±5%RH(≤75%RH) |
| Controller Resolution |
±0.3℃；±2.5%RH |
| Controller Brand |
Korean TEMI880 |
| Material |
Interior |
Stainless steel plate(SUS304) |
| Exterior |
Stainless steel plate(SUS304) |
| Heat Insulator |
Resistance to high temperature, high chlorine acid b vinegar foam insulation materials |
| Insulation |
Rigid foam |
| Refrigeration system |
Air cooled, Hermetic compressor, single stage refrigeration system |
| Display |
LCD |
| Safety devices |
No fuse breaker refrigerator over load relay, Refrigeration High pressure Switch, Over Temp, Protector, Protection relay, Protection fuse, Water Lever protector, Overheat protector, Alarm |
| Accessories |
Viewing window, Shelves (freely adjustable 2 pcs.), Cable port(Ø50mm)Chamber lamp |
| Heater |
nickel chrome heating wire heater |
| Humidifier |
semi-closed steam |
| Water Supply Way |
automatic cycle water supply |
| Standard Accessaries |
*50mm test hole on the left............................................................1PCS
*PL inner lamp................................................................................1PCS
*Adjustable clapboard.....................................................................2PCS
*Humidity cloth...............................................................................1Bag
*Fuses..............................................................................................3PCS
*Power line.......................................................................................1PCS
*Software CD....................................................................................1PCS
*Operation manual.............................................................................1PCS |
| Safety Devices |
*Leakage current
*Overload
*Compressor overload
*Over temperature
*Ultra-wet/dry
*Humidification temperature protection. |
| Power |
AC220V±10 percent 50/60Hz |
