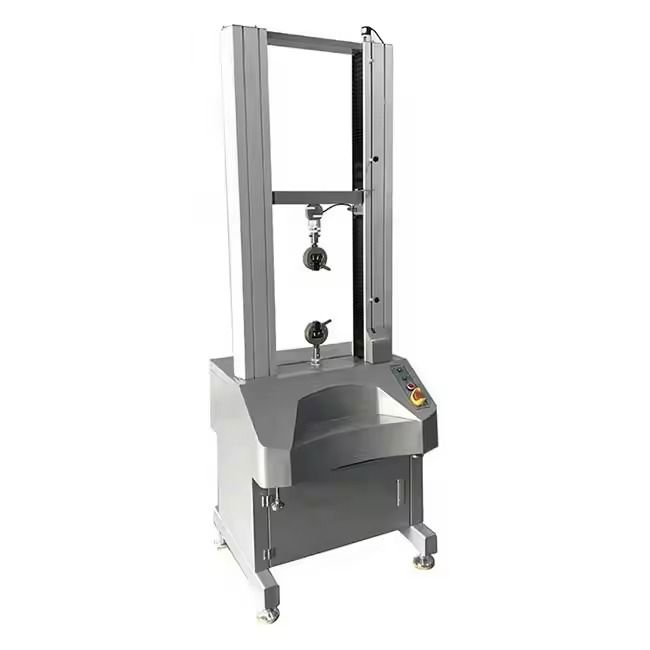

High Accuracy Electronic Tensile Testing Machine for Rubber Space Computer 1-Year Equipment Compression Tensile Tests

Electronic Tensile Testing Machine

1Year Electronic Tensile Testing Machine

Space Computer Electronic Tensile Machine

Place of Origin:

DONGGUAN

Brand Name:

YUYANG

Certification:

Model Number:

Request A Quote

High Accuracy Electronic Tensile Testing Machine for Rubber Space Computer 1-Year Equipment Compression Tensile Tests

Product Details

Warranty:

12 Months

Brand Name:

YUYANG

Product Name:

Testing Machine

Certificate:

CE ISO

Accuracy:

High Accuracy

MOQ:

1 Set

Delivery Time:

7-15days

Highlight:

Electronic Tensile Testing Machine

1Year Electronic Tensile Testing Machine

Space Computer Electronic Tensile Machine

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

negotiable

Packaging Details

Wooden Boxes

Delivery Time

5-20 Days

Payment Terms

T/T

Supply Ability

300 Set/Sets per Month

High Tensile Fiber Optic Cable PBT Loose Tube Water Blocking Tape for Wire Fence 220V 1-Year Warranty Tensile Testing Equipment

Get Best Price

Video

10t Load Capacity Kraft Paper Tester Machine with Burst Strength Testing CE ISO Certification

Get Best Price

Video

220V Digital Universal Tensile Compression Strength Testing Machine Industrial Food Lab Equipment 1 Year Warranty Steel

Get Best Price

Video

100KN Maximum Test Force Speed Servo Electronic Universal Testing Machine For Metal Tubes

Get Best Price

86-769-26622869

Contact Now

Product Description

Tensile Testing Machine Electronic Power Usage Universal Strength Tester Pull Force

Descriptions:

This machine can test various materials (both finished and semi-finished products ) of tensile strength ,compressive strength and elongation ,can do stripping ,tear strength ,flexural ,compression test and etc. It can connect up to the computer and display or printout the test times , test value , max. value , etc . Also it can make various report forms according to the requirements .
The testing machine is widely used in all kinds of hardware, metal, rubber and plastics, footwear, leather, clothing, textiles, insulators, wires, cables, terminals and other types of materials, testing, tensile, tear, peel,compression, bending, shear, three-point bending ... and other physical test performance.

Specifications:

Model	YY-1065	YY-1068
Range of speed	0.1~500mm/min	50~500 mm/min
Motor	Panasonic sevor motor	AC motor
Resolution	1/250,000	1/150,000
Capacity choice	1, 2, 5,10, 20, 50,100, 200, 500 kg optional
Stroke	850 mm (can be customized)
Accuracy	± 0.5 %
Force relative error	± 0.5 %
Displacement relative error	± 0.5 %
Test speed relative error	± 0.5 %
Effective testing space	120 mm
Accessories	Computer, printer, system operation manual
Optional accessories	Stretcher, air clamp
Operation method	Windows operation
Weight	0-100 kg
Dimension	(W * D * H) 58 * 58 * 145 cm
Power	1 PH, AC 220 V, 50/60 Hz
Stroke protection	Machinery, computer double protection, prevent over preset
Force protection	system setting
Emergency stop device	Handling emergencies
