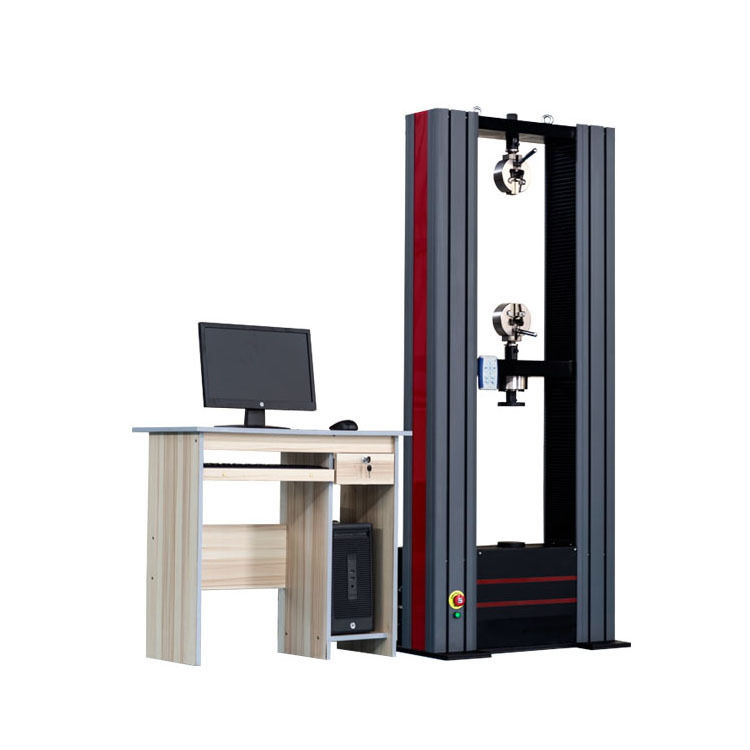

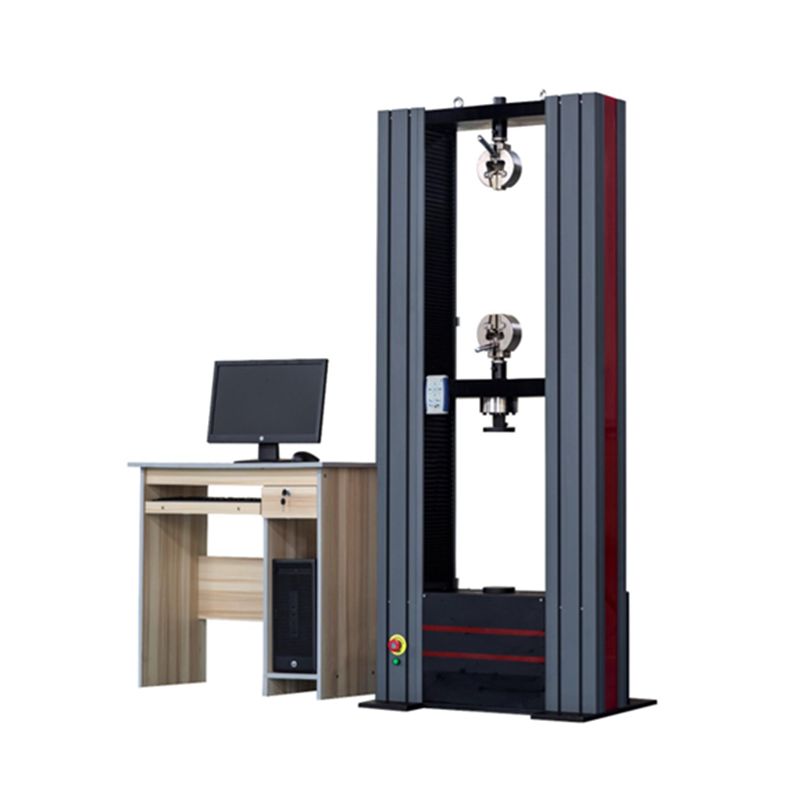

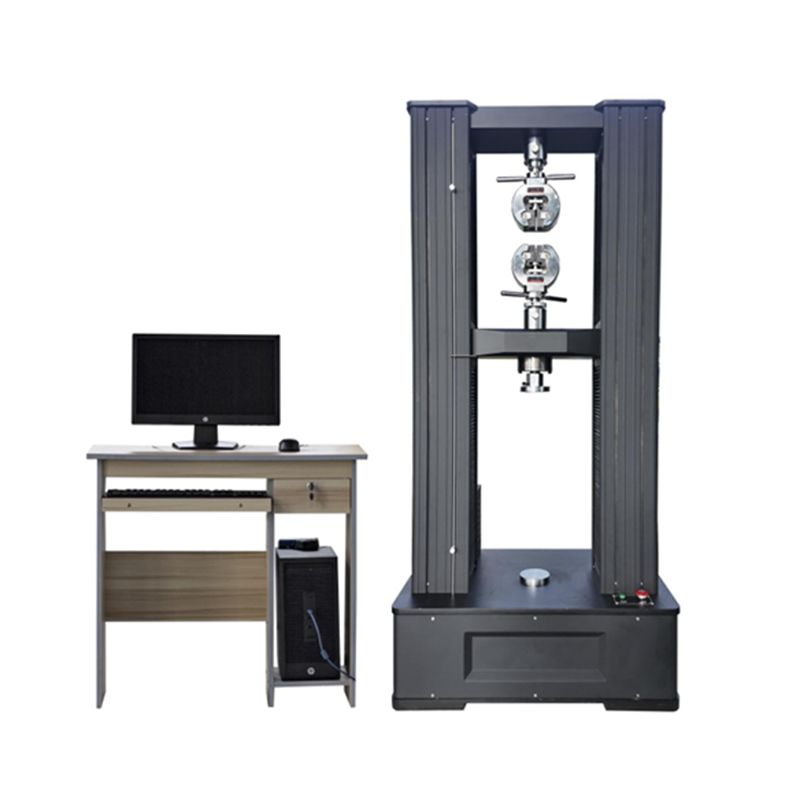

10ton Electronic Universal Material Testing Machine 100kn Wire Tensile Strength Tester
Product Descripton
Yuyang series electromechanical testing machines are with good appearance and stable performance, high stiffness, high control precision, high work efficiency, low noise, and energy saving. It provides a perfect security for from load nonmetallic biomaterials to big load high strength metal building materials test.
1. Perform tension, compression, flexure/bending and shearing for specimens. Suitable for metal and nonmetal material, such as iron, steel, steel bar, rebar, rod, spring steel, wire, cable and so on.
2. High stiffness of the leading screw and robust crosshead structure, maximum elimination the effection of loadframe deformation;
3. Matched with various test fixture, like peal, puncture, tear, pneumatic grip, belt tension etc., this UTM can be used to metal, non-metal, composite material like rubber, steel wire, plasitc, seat belt, textile character test.
4. Comply with ISO, BS, ASTM, JIS standard and so on.
Function and Application
This machine can do tensile, compression, bending, shear, peel, tear and other tests. It can test and analyze the mechanical properties of various metals, non-metals and composite materials, steel wires, steel bars, steel plates, rebars, bolts, nuts, cables, textiles, fibers, plastics, rubber, ceramics, food, medical packaging, aluminum-plastic pipes, plastic doors and windows, geotextiles, films, wood, paper.
According to GB, JIS, ASTM , DIN, ISO and other standards automatically obtain test data such as maximum test force value, breaking force value, yield strength, upper and lower yield strength, tensile strength, compressive strength, elongation at break, tensile elastic modulus, bending elastic modulus, etc.
Test Standards
GB/T 2611 General Technical Requirements for Testing Machines
GB/T 16491 Electronic Universal Testing Machine
GB/T 13634 Calibration of standard dynamometer for inspection of uniaxial testing machine
We can meet the requirements of national & international test standards, and comply with the data processing of GB, ISO, ASTM, DIN and other standards. It can meet the requirements of users and the standards provided. Such as below test standards:
ISO 527/1 Determination of tensile properties of plastics-Part 1: General principles
ISO 178 Plastics: Determination of bending properties
ISO 604 Plastics: Determination of Compressive Properties
ASTM E8 - 16 Standard Test Methods for Tension Testing of Metallic Materials
ISO 6892-1 Materials --tensile testing
ASTM A370-05 Standard Test Methods and Definitions for Mechanical Testing of steel product
Specification
|
Maximum test force
|
100 kN
|
100 kN
|
|
Loading force accuracy
|
Class 1.0
|
Class 0.5
|
|
Load cell Brand
|
China Brand
|
Imported USA Transcell Brand
|
|
Measurement range of loading force
|
2%-100% Full Scale
|
0.4%-100% Full Scale
|
|
Test force measurement accuracy
|
better than ±1%
|
better than ±0.5%
|
|
Test force resolution
|
1/300000
|
1/300000
|
|
Test force measurement repeatability error
|
≤±1%
|
≤±0.5%
|
|
Resolution of crosshead displacement
|
0.001mm
|
0.001mm
|
|
Displacement measurement accuracy:
|
Better than±1%
|
Better than±0.5%
|
|
Measurement error of displacement indication
|
≤±1%
|
≤±0.5%
|
|
Deformation Testing Accuracy
|
Better than±1.0%
|
Better than±0.5%
|
|
Deformation reading value relative error
|
<±1%
|
<±0.5%
|
|
Deformation Resolution
|
1/300000
|
1/300000
|
|
AC Servo Motor Brand
|
China Brand
|
Imported Japan Panasonic Brand
|
|
Testing Speed range
|
0.01-500mm/min
|
0.001-500mm/min
|
|
Testing speed accuracy
|
Better than±1%
|
Better than±1%
|
|
Maximum tensile test space
|
800mm
|
800mm
|
|
Maximum compression test space
|
800mm
|
800mm
|
|
Effective test width
|
400mm
|
400mm
|
|
Stress rate
|
0.005%~5%FS/s
|
|
Stress rate accuracy range
|
When rate < 0.05% FS/s, the precision± 2%
When rate ≥ 0.005%FS/s, the precision ±0.5%
|
|
Deformation rate
|
0.005%~5%FS/s
|
|
Deformation rate accuracy range
|
When rate < 0.05% FS/s, the precision± 1%
When rate ≥ 0.005%FS/s, the precision ±0.5%
|
|
Power supply power
|
Single phase 220V, 50Hz
|
Standard Tensile Grip:
Manual Wedge Tensile Fixture (Hydraulic Automatic Clamping Tensile Fixture is optional)
Round jaws diameter range: 4-9mm, 9-14mm, 14-21mm
