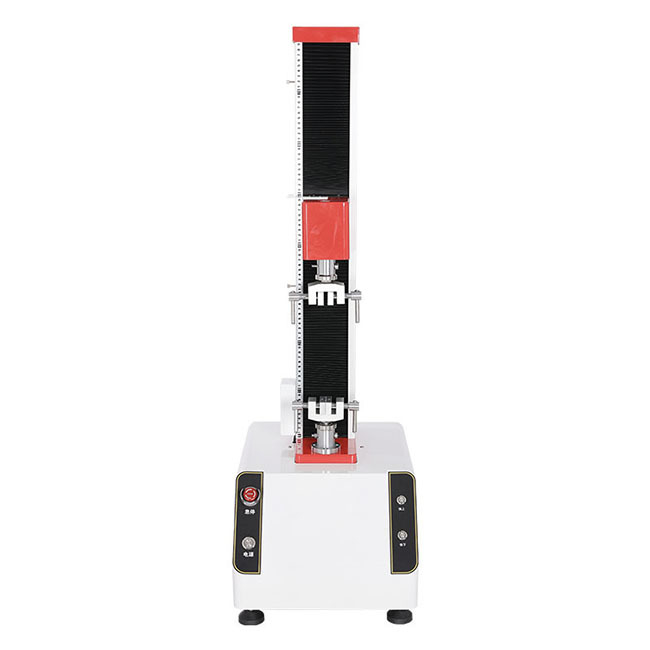

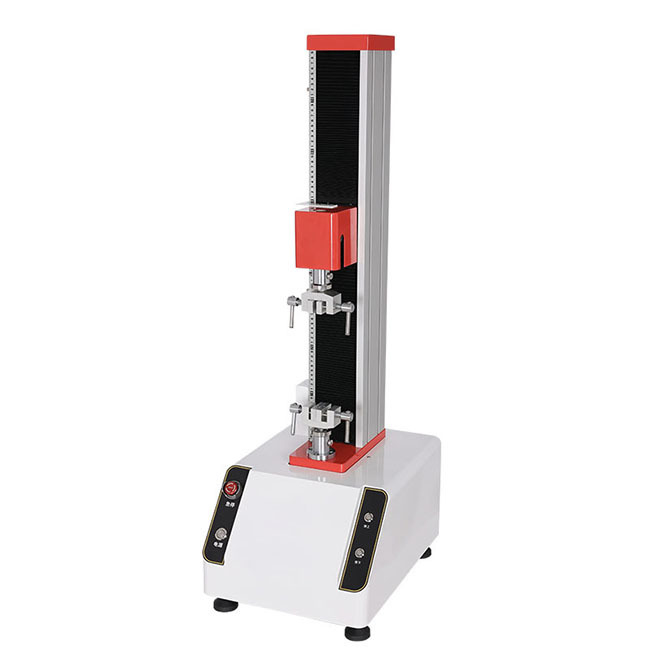

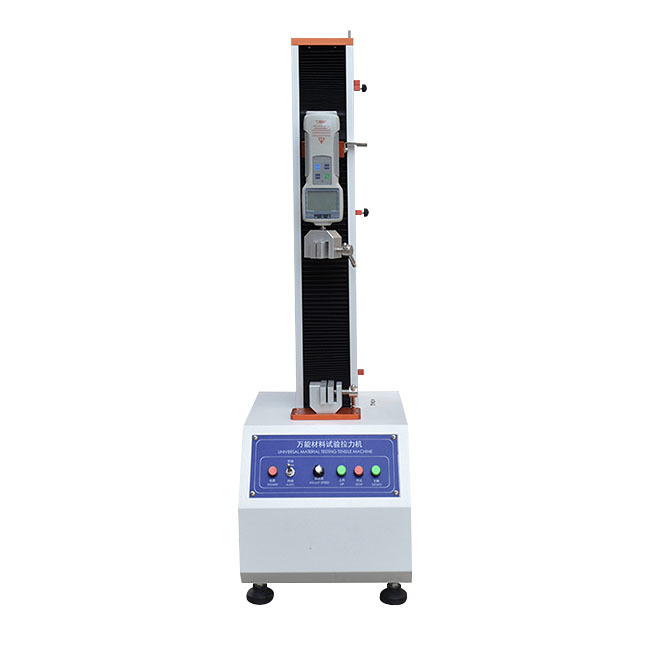

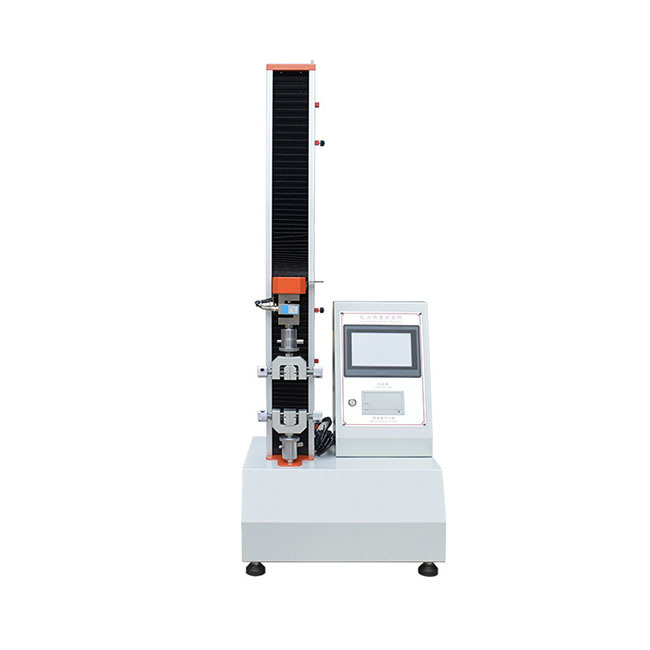

Microcomputer Control Tensile Testing Machine for Paper and Gold Foil with Stress and Strain Measurement

Microcomputer Control Tensile Testing Machine for Paper and Gold Foil with Stress and Strain Measurement

Technical Overview:
This advanced materials testing system integrates modern electronic control technology with precision mechanical transmission to deliver exceptional testing accuracy and repeatability. Designed for measuring both tear resistance and tensile strength, the equipment features a single-space structural design with bottom operational space for optimal testing convenience.

Key Features:

1. Precision Measurement System

   • High-accuracy load measurement (capacity <1kN)

   • Sensitive displacement control

   • Consistent loading rates

2. Wide Testing Capabilities

   • Suitable for both metallic and non-metallic materials

   • Paper tear resistance evaluation

   • Comprehensive tensile strength analysis

3. Advanced Computer Control

   • Multiple control modes: stress, strain, displacement

   • Real-time data acquisition

   • Automated test sequences

Measurable Parameters:

• Maximum force

• Tensile/bending/compressive strength

• Elastic modulus

• Elongation rate

• Yield strength

Technical Advantages:

• High sensitivity load cell

• Stable mechanical transmission system

• User-friendly operation interface

• Reliable test repeatability

Applications:

• Paper and packaging material testing

• Quality control for thin metallic foils

• Composite material evaluation

• Research and development laboratories

Main features:

1. Adopt Panasonic servo motor,the beam moves up and down to test the load through the transmission.

2. The whole control system is safe and high reliability.

3. Microcomputer control the whole testing process, real-time dynamic display the load values, displacement

values, deformation,testing speed and testing curves.

4. Microcomputer for data processing and analysis, testing results can be saved automatically, testing curvers

can be transferred out after the test, you can know the testing process through the testing curvers, or compare

with others curves, or amplify the curvers.

5. the testing software of the Window, with strong processed capabilities of data and graphics, it can

immediate print out a complete testing report and testing curves.

6. Has limit protection, overload protection, emergency stop and other safe protective functions.
