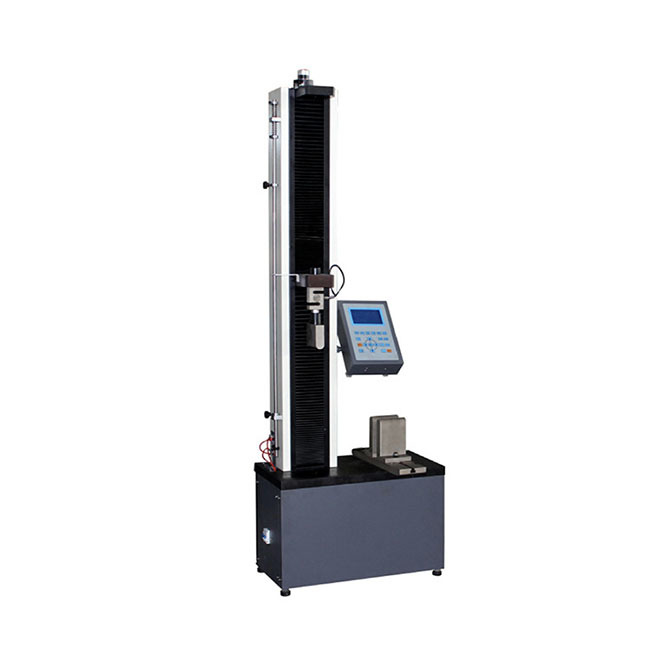

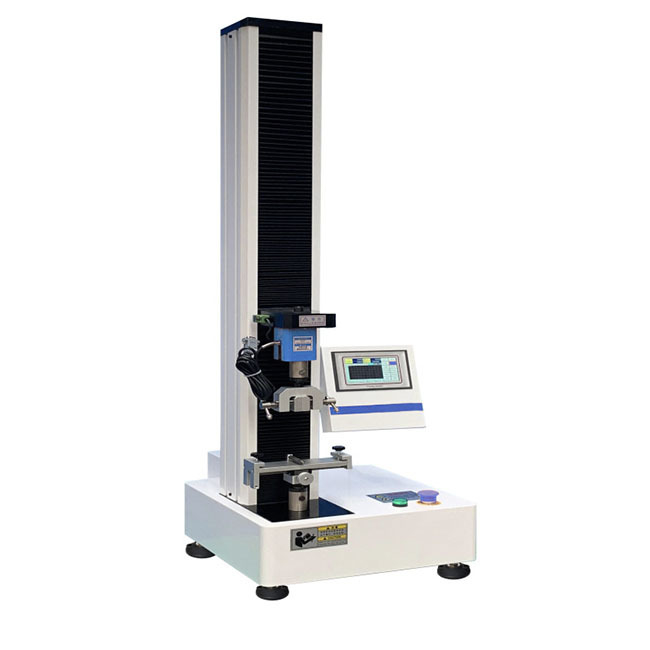

Automated Tensile Testing Machine for Precise Deformation and Load Analysis
Applications
1. Tested sample: laminated materials, wood, leather, rubber & plastic, metal material, etc.
2. Different test with different grips: tensile, peel, tear, heat seal, adhesive, bend and open force.
3. Deformation under defined load: Test deformation under defined load of tested sample
4. Load under defined deformation: Test load under defined deformation of tested sample
Software can issue word/excel report with results for max. force, elongation, tensile strength, peel strength, tear strength,
compression strength, etc.
Standard:
Including but not limited to ASTM,JIS,CE, ISO,EN,BS EN,SAE,FTM...etc.
Technical Specifications
1. Drive System
-
High-precision imported servo motor
-
Low-noise operation with precise motion control
-
Stable and reliable performance
2. Control & Display System
-
Computerized LCD interface
-
Chinese/English bilingual menu
-
Integrated HP printer for immediate results output
3. Real-Time Monitoring
-
Continuous display of test duration
-
Instantaneous maximum force measurement
-
Dynamic test progress visualization
4. Precision Measurement
-
Ultra-fine 0.001N resolution
-
Specialized 0-50N range for waterproof materials
-
Exceptional measurement accuracy
5. Intelligent Automation
-
Advanced microprocessor control
-
Automatic system reset function
-
Built-in data storage capacity
-
Comprehensive overload protection
-
Domestic and international premium components
6. Data Processing
-
Instant test result calculation
-
Comprehensive statistical analysis:
-
Mean values
-
Standard deviation
-
Coefficient of variation
-
One-touch report generation
7. Communication Interface
-
Standard RS232 serial port
-
Upper computer connectivity
-
Data transmission capability
-
Comprehensive reporting system integration
8. Flexible Configuration
-
Multi-functional testing platform
-
Adaptable for various materials:
-
Metal specimens
-
Non-metal samples
-
Customizable test configurations
-
Wide material compatibility
Key Advantages
-
Laboratory-grade measurement precision
-
Robust safety protection systems
-
Efficient automated operation
-
Versatile testing applications
-
Reliable data management
Parameter
| Model |
YYT020 |
| Max. Force |
2000 kg (20KN) |
| Load cell |
Germany brand load cell for high accuracy |
| Control system |
PC with windows 7 system |
| Motor |
Panasonic servo motor w/ DC variable speed drive system, high-precision mechanical ball screw rod |
| Force reading |
kgf, Ibf, N, KN, T etc |
| Stoke |
1200mm including fixture |
| Load cell Resolution |
1/250,000 |
| Load Precision |
≤0.5% |
| Test speed |
0.1~500mm/min (adjustable) |
| Test width |
400mm |
| Software |
TM 2101 |
| Host size |
750*520*1740mm (size can be customized) |
| Weight |
168kg |
| Power supply |
220V, 50Hz, 1.5kW
|
