Name: 40kw Ultra High Frequency Induction Heating Machine with 400-1800A Output and 0.08-0.16Mpa Cooling for Electrical Test Set
Brand: DONGGUAN YUYANG INSTRUMENT CO., LTD
SKU: YYS-40AB
Price: 2,000.00 USD
Availability: InStock

Home > Products > Electrical Test Set >

40kw Ultra High Frequency Induction Heating Machine with 400-1800A Output and 0.08-0.16Mpa Cooling for Electrical Test Set

400-1800A Induction Heating Machine

0.08-0.16Mpa Electrical Test Set

50C High Frequency Induction Heater

Place of Origin:

China

Brand Name:

YUYANG

Certification:

CE/CO

Model Number:

YYS-40AB

Request A Quote

Product Details

Model:

YYS-40AB(Three Phase)

Work Power:

340-430v

Input Current:

65A

Fluctuating Output Power:

10-50khz

Output Current:

400-1800A

The Flow Rate Of Cooling Water:

0.08-0.16Mpa 9L/Min

Water Temperature Protection Point:

50C

Product Size:

Main:780*3708620mm ; Transformer:510*260*410mm

Net Weight:

Main:54kg ; Transformer:32.5kg

Highlight:

400-1800A Induction Heating Machine

0.08-0.16Mpa Electrical Test Set

50C High Frequency Induction Heater

Payment & Shipping Terms

Minimum Order Quantity

1 Set

Price

1000~3000

Packaging Details

Plywood Box

Delivery Time

6-10 work days

Payment Terms

,T/T

Supply Ability

20 sets per month

120kw High Frequency Hardening Quenching Induction Heating Machine Digital Automatic Metal Manufacturing for Engine Pump Motor

Get Best Price

Video

Handheld Induction Heater Brazing Welding Copper Brass Pipe

Get Best Price

Automatic Electromagnetic Induction Heater Precise Temperature Control Competitive Price 220v/380v Power Supply Key Heating

Get Best Price

Medium Frequency Induction Heating Forging Machine for Metal Bar Bolt & Nut Heating with Steel Motor & Pump Core Components

Get Best Price

8613825721469

sales06@yuyangtest.com

86-769-26622869

Contact Now

Product Description

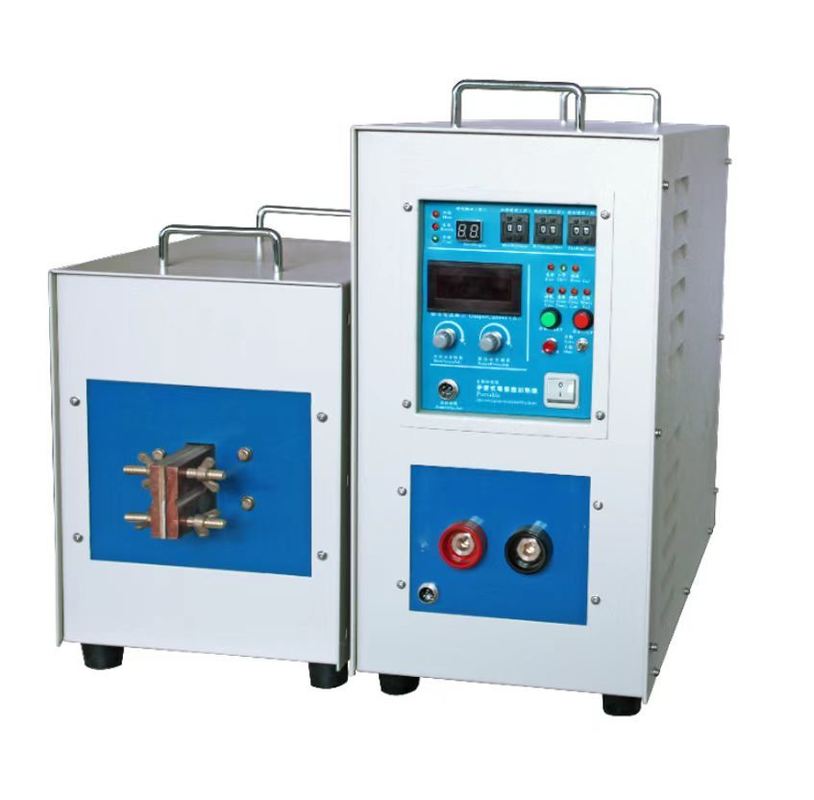

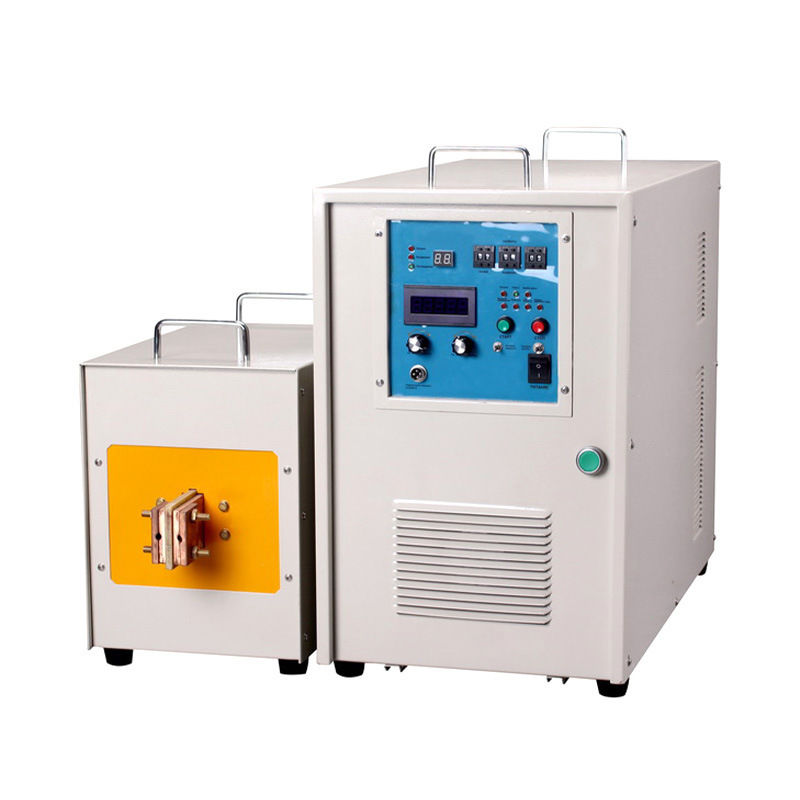

40kw Ultra High Frequency Induction Heating Machine Electrical Test Set

Integrating precise heating and electrical performance testing functions, it is specially designed for small and medium-sized metal workpieces, and is used to serve manufacturing, research and development, and quality inspection scenarios.

Technical Parameters

Parameter	Value
Max Fluctuating Power	40KW
Fluctuating Frequency	10-50KHZ
Heating Current	400-1800A
Input Voltage	(3Phase), 380V
The Flow Rate of Cooling Water	0.08-0.16Mpa, 9L/Min
Water Temperature Protecting Point	50°C

Product Features

Product line includes medium-frequency (15KVA～3000KVA) and high-frequency/ultra-high-frequency (3.2KVA～320KVA) equipment
Over 50 models available for various metal heating processes
Applications include quenching, surface heat treatment, annealing, welding, smelting, and more

Working Principle

Fully solid-state IGBT inverter module technology imported from Germany
Generates strong alternating magnetic field through induction coil
Eddy currents on workpiece surface enable rapid heating and instant temperature rise

Applications

Manufacturing: Surface hardening of gears/tooling, brazing of dissimilar metals, thermal assembly of micro-components
Quality Inspection: High-temperature testing of electrical terminals/motor windings
Research and Development: Thermal conductivity testing, small-scale melting of precious metals
