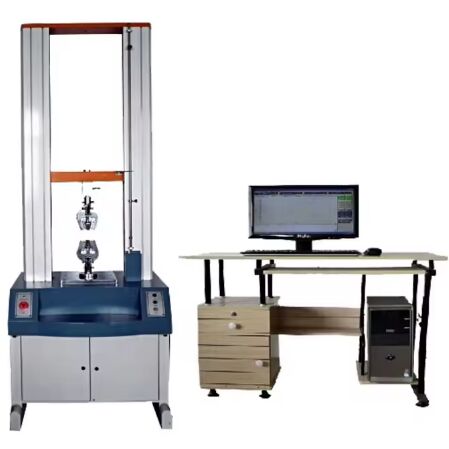

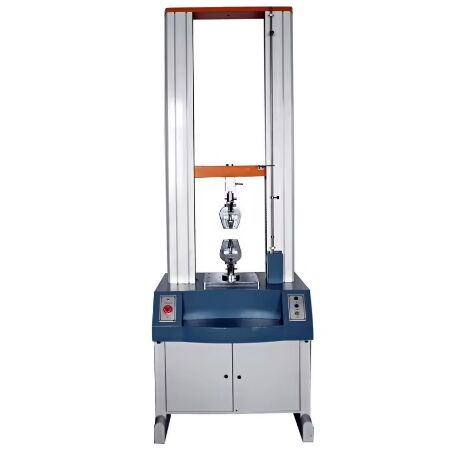

Name: YY-C003 20kN Universal Tensile Tester (ISO 7500/ASTM D412) - Multi-Material
Brand: DONGGUAN YUYANG INSTRUMENT CO., LTD
SKU: YY-C003
Price: 3,092.90 USD
Availability: InStock

Home > Products > Tensile Testing Machine >

YY-C003 20kN Universal Tensile Tester (ISO 7500/ASTM D412) - Multi-Material

20kN universal tensile tester

multi-material tensile testing machine

ISO 7500 tensile tester

Brand Name:

YUYANG

Model Number:

YY-C003

Request A Quote

Product Details

Capacity（kg）:

2000, 1000, 500, 200, 100

Accuracy:

0.5 Level, ±0.5%

Test Speed Range:

Servo: 0.5 ~ 500 Mm/min (configurable)

Speed Control Precision:

±0.2% (Class 0.5)

Power Consumption:

0.5 KVA

Power Supply:

1φ, 220 VAC, 50/60Hz

Dimensions:

65×55×220 Cm

Standard Accessories:

1 Pair Of Tension Fixtures, 1 Tool Set, 1 Manual, 1 Warranty Card

Highlight:

20kN universal tensile tester

multi-material tensile testing machine

ISO 7500 tensile tester

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

$1546.9-$4640.7

Customized Support ODM Steel Tensile Tension Tester Servo Material For UTM Tensile Strength Testing Machine LCD Display ASTM

Get Best Price

Video

10t Load Capacity Kraft Paper Tester Machine with Burst Strength Testing CE ISO Certification

Get Best Price

Video

220V Digital Universal Tensile Compression Strength Testing Machine Industrial Food Lab Equipment 1 Year Warranty Steel

Get Best Price

Video

100KN Maximum Test Force Speed Servo Electronic Universal Testing Machine For Metal Tubes

Get Best Price

8618938165008

sales11@yuyangtest.com

86-769-26622869

Contact Now

Product Description

YY-C003 20kN Universal Tensile Tester (ISO 7500/ASTM D412) - Multi-Material

Product Overview

YY-C003 Universal Tensile Testing Machine (0-20KN) compliant with ISO 7500 & ASTM D412 standards, designed for comprehensive material testing across multiple industries.

Testing Standards Compliance

GB16491-2008, HGT 3844-2008, QBT 11130-1991, GB 13022-1991, HGT 3849-2008, GB 6349-1986, GB/T 1040.2-2006 2411, ISO 4587, ISO/TS 11405, ISO 527, ASTM E4, BS 1610, DIN 52121, ISO 7500, EN 10002, ASTM D628, ASTM D638, ASTM D412

Applications

Suitable for industries including aerospace, petrochemicals, machinery manufacturing, metal materials & products, plastics, wires & cables, rubber, paper-plastic printing & packaging, adhesive tapes, luggage & bags, textile fibers, textiles, food, and pharmaceuticals.

Tests the physical properties of various materials, finished products, and semi-finished products. With different fixtures, it can perform tests including tension, compression, holding, pressure retention, bending, tearing, peeling, adhesion, and shearing.

Ideal testing and research device for factories, technical supervision departments, inspection institutions, research institutes, and universities.

Primarily used to test mechanical properties of metals (tension, compression, bending) and automatically calculates parameters such as tensile strength, yield strength, elongation, constant elongation stress, constant stress elongation, and modulus of elasticity according to standards like GB, JIS, ASTM, and DIN.

Key Features

Innovative material testing machine with fully computerized operation, evolved from conventional testing machines to eliminate bulkiness and complexity
Integrated panel and aluminum profile plate structure with high precision, low resistance, and seamless precision ball screws and guide columns for enhanced load efficiency and structural rigidity
Advanced servo motor drive system with servo driver for high transmission efficiency, stable operation, low noise, and accurate speed control
Computer-based control system with QCTech testing software for complete test parameter setting, status control, data collection & processing, result display, and printing
Dedicated testing system supporting tension, compression, bending, shearing, tearing, and peeling tests with comprehensive data processing capabilities

Technical Parameters & Specifications

Software Technical Parameters:

Software operating system language: English

Force units (N, KN, Kgf, Lbf) and length units (mm, cm, in) can be freely converted

Control Modes:

Computer software configures control methods for speed, load fracture, running time, etc.

Dedicated manual operation box facilitates calibration and positioning when loading and holding test specimens

Automatically detects material fracture, breakage, etc., and stops automatically; automatic return can be configured

Curve Types:

Load-displacement, Load-time, Displacement-time

Stress-strain, Strain-time, Stress-time

Horizontal and vertical coordinates of the curve can be set arbitrarily

Available Test Data:

Maximum strength, minimum strength, fracture value, upper/lower yield strength, tensile strength, compressive strength, modulus of elasticity, elongation, maximum value, minimum value, average value, etc. (Customers need to select these before ordering)

Safety Features:

Multiple protections including overload, overcurrent, overvoltage, undervoltage, overspeed, stroke limit, etc.

Data results follow the standard report format specified by the current standard.
