Water Spraying Rating Testing Equipment ISO 4920 AATCC 22 Fabric Electronic

Water Spraying Rating Testing Equipment ISO 4920 AATCC 22 Fabric Electronic

fabric water spray testing equipment

ISO 4920 electronic testing machine

AATCC 22 fabric rating tester

Place of Origin:

CHINA

Brand Name:

YUYANG

Certification:

CE

Model Number:

YY010

Contact Us
Request A Quote
Product Details
Highlight:

fabric water spray testing equipment

,

ISO 4920 electronic testing machine

,

AATCC 22 fabric rating tester

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
pending
Packaging Details
plywood case
Payment Terms
Western Union,T/T,L/C,Paypal
Product Description
Water Spraying Rating Testing Equipment ISO 4920 AATCC 22 Fabric Electronic
Product Overview

Professional fabric water repellent tester designed for spray rating tests and surface moisture resistance evaluation. This electronic testing equipment ensures precise measurements for fabric quality control.

Key Specifications
  • Product Model: Y-301C1 (steel ring); Y-301C2 (round cake)
  • Funnel: 150×200mm (capacity 500ml) × 200±10mm (adjustable)
  • Equipment Dimensions: 250 × 300 × 550mm
  • Sample Angle: 45° to the horizontal
  • Sample Holder Diameter: Φ 155+5mm
  • Nozzle to Sample Distance: 150mm
  • Nozzle Configuration: Φ 12 holes of 0.86mm
  • Equipment Weight: ≈ 5kg
Technical Features
45° Angle Precision

The sample is positioned at a precise 45° angle to the horizontal plane, ensuring compliance with international standards and delivering highly accurate test results.

Height Ruler Integration

Features an integrated height ruler to maintain the exact 150mm distance between the nozzle bottom and sample center, guaranteeing consistent testing conditions.

Nozzle Design
  • 6 holes arranged on a 10mm circle
  • 1 central hole of 0.86mm diameter
Product Attributes
Place of Origin Guangdong, China
Customized Support OEM, ODM, OBM
Power Type Electronic
Brand Name YUYANG
Warranty 1 Year
Model Number YY010
Product Name Fabric Water Spraying Rating Tester
Usage Spray Rating Test
Measuring Cup 500ml
Water Tray Size 500 × 400 × 30mm
Sample Placement 45° to the horizontal
Equipment Size 200 × 250 × 480mm
Compliance Standards

This equipment meets multiple international testing standards including AATCC 22, ISO 4920, JIS L1092, and GB/T 4745.

Product Images

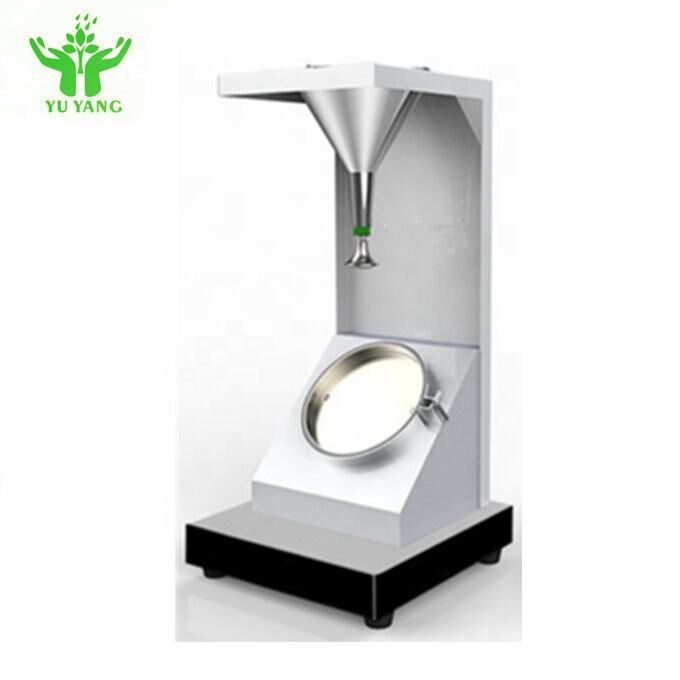

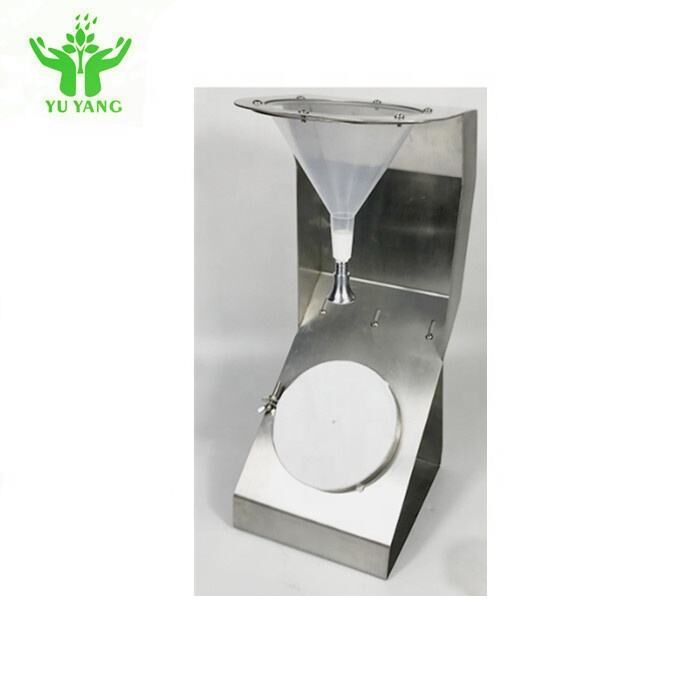

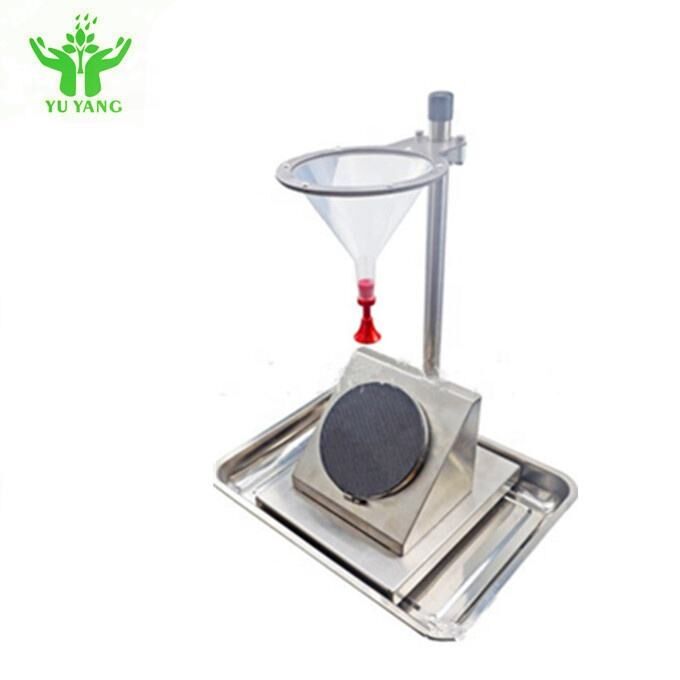

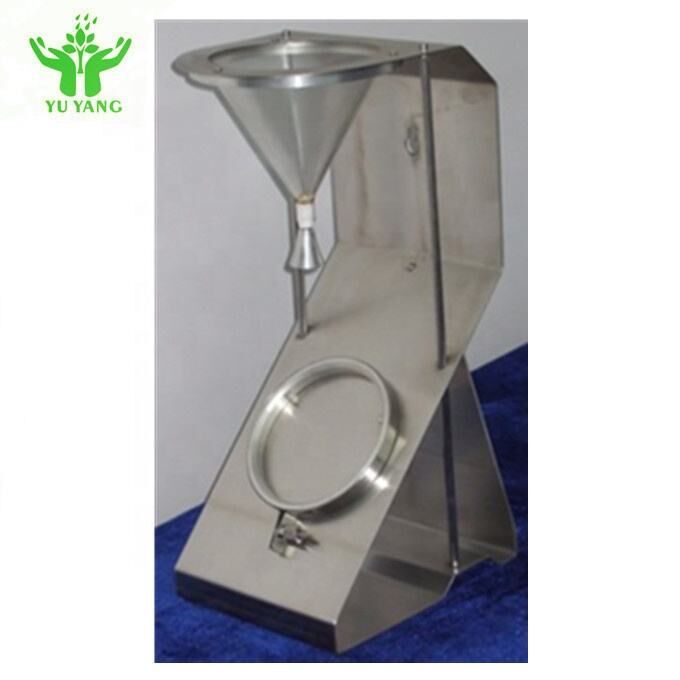

Water Spraying Rating Testing Equipment ISO 4920 AATCC 22 Fabric Electronic 0
Water Spraying Rating Testing Equipment ISO 4920 AATCC 22 Fabric Electronic 1
