Name: Electronic Digital Textile Yarn Wrap Reel Test Equipment
Brand: DONGGUAN YUYANG INSTRUMENT CO., LTD
SKU: YY001
Price: 25,000.00 USD
Availability: InStock

Home > Products > Tensile Testing Machine >

Electronic Digital Textile Yarn Wrap Reel Test Equipment

Place of Origin:

CHINA

Brand Name:

YUYANG

Certification:

Model Number:

YY001

Request A Quote

Electronic Digital Textile Yarn Wrap Reel Test Equipment

Product Details

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

pending

Packaging Details

plywood case

Payment Terms

Western Union,T/T,L/C,Paypal

Electronic Digital Textile Yarn Wrap Reel Test Equipment

Get Best Price

4 Head Martindale Abrasion Test Equipment Textile Friction Fabric Tester Machine

Get Best Price

Face Clothing Fabric Air Exchange Pressure Difference Tester

Get Best Price

Taber Abrasion Resistance Tester for Rubber Plastic Rubber Textile Electronic

Get Best Price

8618938576621

sales05@yuyangtest.com

86-769-26622869

Contact Now

Product Description

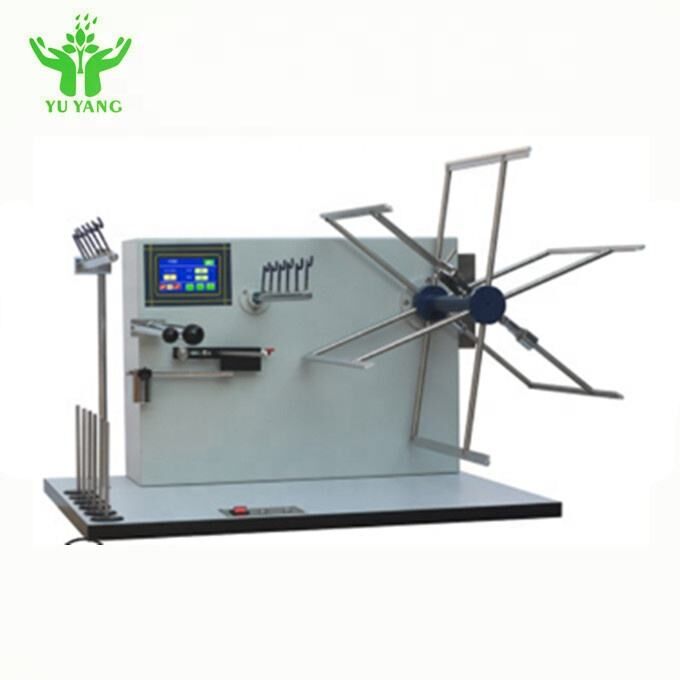

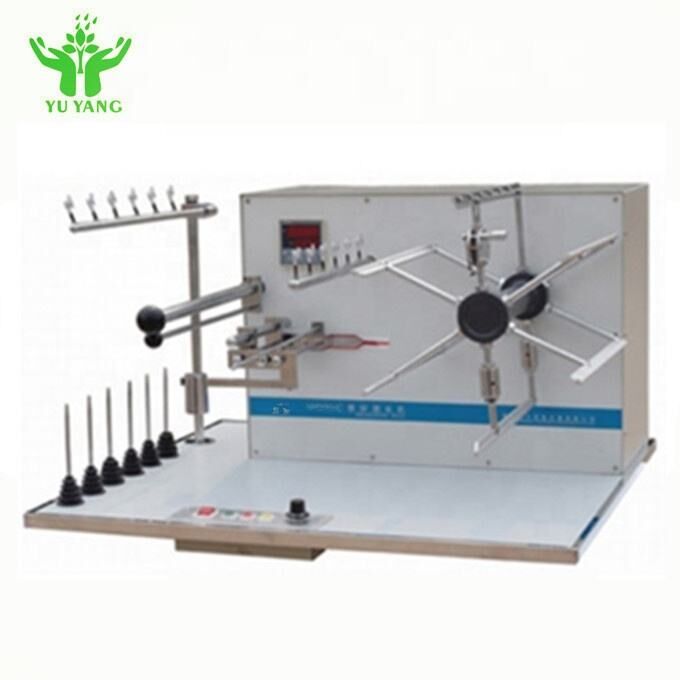

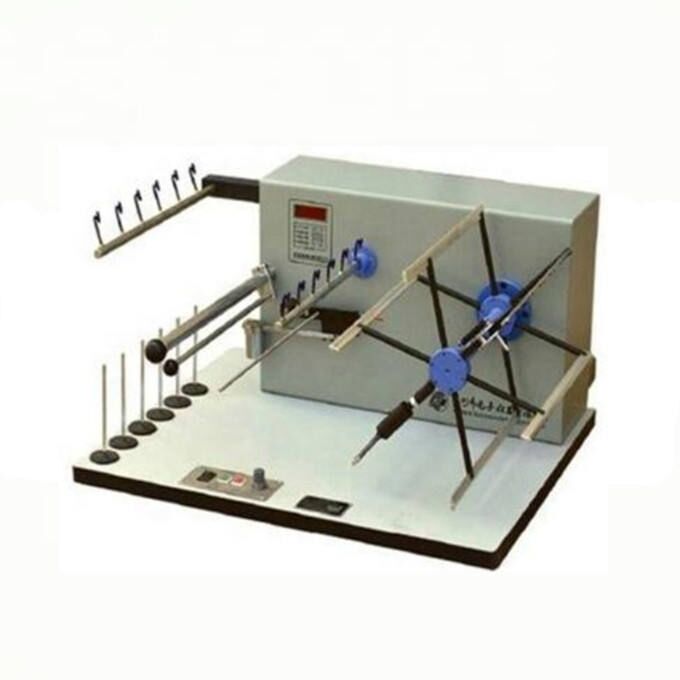

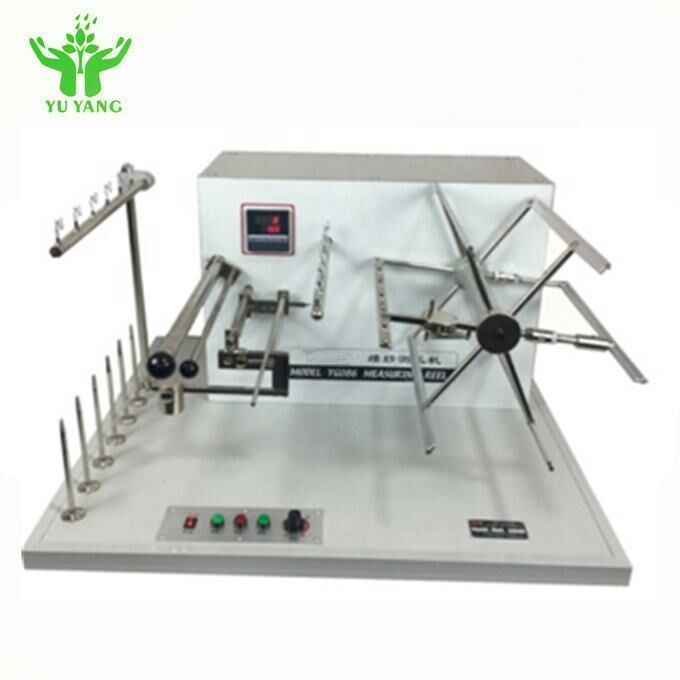

Electronic Digital Textile Yarn Wrap Reel Test Equipment

Usage

Electronic Wrap Reel is designed to produce skeins of yarn of a pre-determined length and number of turns for count and/or strength testing. Complete with yarn package stand and pre-tension device, fitted with pre-determined counter.

Standards Compliance

ASTM D1907 Textile Testing Equipment Standard Test Method for Linear Density of Yarn (Yarn Number) by the Skein Method
ASTM D2260 Tables of Conversion Factors and Equivalent Yarn Numbers Measured in Various Numbering Systems
ISO 2060 Textiles -- Yarn from packages -- Determination of linear density (mass per unit length) by the skein method
BS 2010 Method for determination of the linear density of yarns from packages
DIN 53830 Testing of textiles; determination of linear density of single and plied yarns (reel method)

Technical Characteristics

Electronic Wrap Reel uses MCU control unit, allowing numeric programming parameters (speed, bobbin number, reel presetting parameters) with auto tracking speed of reel
Two startup modes (hard startup, soft startup) ensure consistent and stable operation
Precision DC speed regulating motor with synchromesh belt for precise positioning
Numeric speed controlling panel for consistent and stable operation
Electronic limit trips, total revolution number and user programmable stops
Closed-loop controlled speed tracking system ensures even speed when voltage is variable

Technical Specifications

Model	YY821
Reel circumference	1000mm (metric system)
Revolution of reel	25-300 RPM (numeric pre-settable)
Interval of spindle	65cm
Number of wrap	2~9999 Rev (pre-settable)
Programmable stop	1~9 rev (pre-settable)
Traveling reciprocating distance	35mm±1mm
Reeling pre-tension	0~100cN (pre-settable)
Instrument Size	780×660×480mm
Instrument weight	50kg

Key Features

Timing cog belt of direct transmission, no-lap skid
Counting by Optocoupler
Import electronic tension sensors, dynamic display of yarn tension, no additional tension impact (B type)

Product Attributes

Type Testing Machine

Accuracy Custom

Place of Origin Guangdong, China

Customized Support OEM, ODM

Power Custom

Protection Class IP55

Voltage 220 V

Brand Name YUYANG

Warranty 1 year

Certification CE

Packaging and Delivery

Selling Units Single item

Single Package Size 78×66×48 cm

Single Gross Weight 47.000 kg

Product Images
