500 KW DSP fully digital control - Special equipment for melting and overall hot forging Forming Pipe /elbow/ Bolts Machine Induction Heating Machine

500 KW DSP fully digital control - Special equipment for melting and overall hot forging Forming Pipe /elbow/ Bolts Machine Induction Heating Machine

500 KW DSP digital control induction heater

induction heating machine for forging

industrial pipe forming heating equipment

Place of Origin:

China

Brand Name:

YUYANG

Certification:

CE, ISO

Model Number:

YYD-500AB

Contact Us
Request A Quote
500 KW DSP fully digital control - Special equipment for melting and overall hot forging Forming Pipe /elbow/ Bolts Machine Induction Heating Machine
500 KW DSP fully digital control - Special equipment for melting and overall hot forging Forming Pipe /elbow/ Bolts Machine Induction Heating Machine
Product Details
Rated Power Output:
500Kw
Frequency Rang:
1-10 KHZ
Current Input:
750 A
Product Size:
Main Machine : 1750x850x1800 Mm; Transformer : 1270*480*850MM
Net Weight:
Main : 620kg；transformer : 210kg
Gross Weight:
40C
Duty Cycle:
100%
Brand:
YUYANG
The Flow Rate Of Cooling Water::
0.15-0.3Mpa 25L/Min
Work Power:
340V-430V
Highlight:

500 KW DSP digital control induction heater

,

induction heating machine for forging

,

industrial pipe forming heating equipment

Payment & Shipping Terms
Minimum Order Quantity
Set/Sets
Price
US $ 20000-30000
Packaging Details
1160 x 1040 x 1320mm
Delivery Time
5-15 days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100 sets per month
RELATED PRODUCTS
Good price 100kw DSP fully digital control - Special equipment for melting and overall hot forging Induction Heating LGBT High Quality online Video

100kw DSP fully digital control - Special equipment for melting and overall hot forging Induction Heating LGBT High Quality

Get Best Price
Good price Touchscreen Frequency Induction Heating 300kw LGBT High Quality Heat Automatic Sealing Machine Shaft Quenching Machine online Video

Touchscreen Frequency Induction Heating 300kw LGBT High Quality Heat Automatic Sealing Machine Shaft Quenching Machine

Get Best Price
Good price Touchscreen Frequency Induction Heating 200kw LGBT High Quality HeatFor Pipeline Surface Induction Heat Treatment Machine online Video

Touchscreen Frequency Induction Heating 200kw LGBT High Quality HeatFor Pipeline Surface Induction Heat Treatment Machine

Get Best Price
Good price Touchscreen Frequency Induction Heating 120kw LGBT High Quality Heat Treatment Machine From Professional Manufacturer online Video

Touchscreen Frequency Induction Heating 120kw LGBT High Quality Heat Treatment Machine From Professional Manufacturer

Get Best Price
Contact Us
8613825721469
sales06@yuyangtest.com
86-769-26622869
Contact Now
Product Description

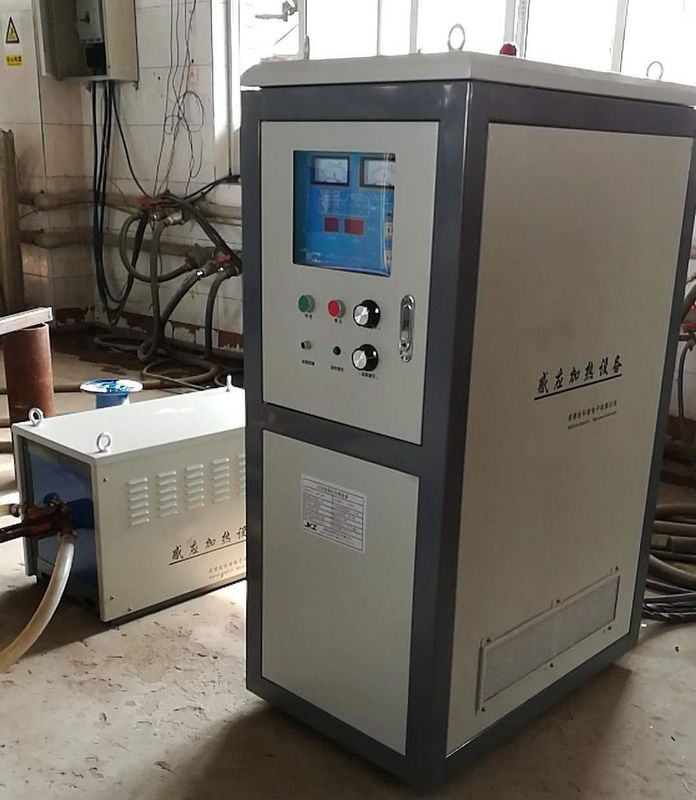

500 KW DSP Fully Digital Control Induction Heating Machine
Special equipment for melting and overall hot forging forming pipe, elbow, and bolts machine applications.
Product Overview
This advanced induction heating equipment features DSP fully digital control and IGBT inverter circuits in parallel connection, offering exceptional load adaptability and operational efficiency.
Key Features
  • High power output with fast heating speed
  • Compact design saving 90% production space
  • Safe operation without high-voltage equipment requirements
  • 24-hour continuous operation capability
  • Energy efficient with significant material savings
  • Easy to operate with improved production environment
Technical Advantages
The DSP+FPGA all-digital metal induction heating equipment incorporates innovative fast IGBT drive circuits that improve waveform quality, reduce dead time, and minimize switching losses.
  • Individual IGBT drive with short-circuit and under-voltage protection
  • 260,000-color true-color display with four-wire resistive touch panel
  • USB storage support for data import/export functionality
  • Accurate touch accuracy with extended operational lifespan
Application Scope
Heating Applications
  • Hot forging for shaping work pieces using punch press and forging machines
  • Hot fitting for metal connections and composite materials
  • Smelting for melting metals into liquid form
Heat Treatment (Surface Quench)
  • Quenching for tools, automotive parts, electric tools, and machine tools
  • Quench for various hardware metal parts and machined components
  • Quench for hardware molds, small-size molds, and mold accessories
  • Hardening of mechanical parts, gears, shafts, and mold components
Welding Applications
  • Braze welding, silver soldering, and brazing operations
  • Welding of cutting tools, mechanical gadgets, and composite materials
  • Specialized applications for pot bottom welding and heating elements
Annealing Processes
  • Annealing of various stainless steel products including basins, tubes, and tableware
  • Annealing of metal work pieces such as golf ball heads, brass locks, and aluminum products
Machine Specifications
Advanced Power Technology
Utilizes imported high-quality IGBT solid power modules with advanced frequency conversion technology.
Continuous Operation
Advanced cooling system enables 24-hour continuous operation at maximum power capacity.
Efficient Control
Constant current and power control functions for improved heating efficiency and energy conservation.
Easy Installation
Simple setup process - operational after connecting to 380V power and water supply connections.
Programmable Operation
Programmable timing function with adjustable heating time, heat-preservation time, and current settings.
Comprehensive Protection
Integrated self-diagnosis system with multi-level protection against overvoltage, overcurrent, overheating, and phase loss.
Industry Applications
  • Metal glasses manufacturing
  • Connector welding in electrical and electronic industries
  • Small relay non-contact welding
  • Refrigeration industry high-pressure welding
  • Component welding in jewelry industry
  • Metal jewelry and metal craft manufacturing
