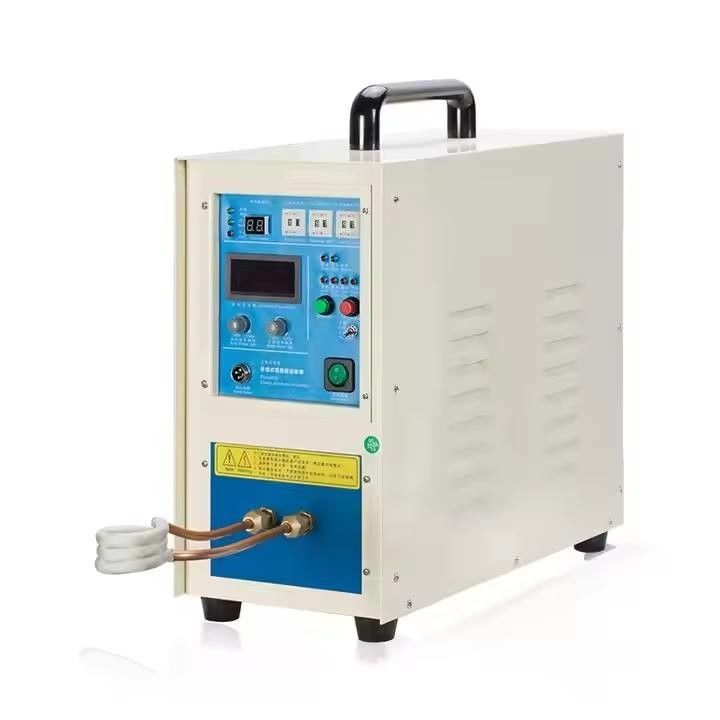

Name: High Frequency Induction Heating Machine 15KW with 200-600A Metal Forging Machine Cooling for Electrical Test Set
Brand: DONGGUAN YUYANG INSTRUMENT CO., LTD
SKU: YY-15AB
Price: 700.00 USD
Availability: InStock

Home > Products > Electrical Test Set >

High Frequency Induction Heating Machine 15KW with 200-600A Metal Forging Machine Cooling for Electrical Test Set

15KW high frequency induction heater

metal forging machine with cooling

electrical test set induction heating

Place of Origin:

China

Brand Name:

YUYANG

Certification:

CE/CO

Model Number:

YY-15AB

Request A Quote

Product Details

Model:

YY-15AB(Three Phase)

Work Power:

180-250v

Input Current:

35A

Fluctuating Output Power:

30-100khz

Output Current:

200-600A

The Flow Rate Of Cooling Water:

0.06-0.12Mpa 7.5L/Min

Water Temperature Protection Point:

40C

Product Size:

Main : 530x225x450mm；transformer : 370x210x370mm

Net Weight:

Main: 18 Kg ; Transformer: 15 Kg

Highlight:

15KW high frequency induction heater

metal forging machine with cooling

electrical test set induction heating

Payment & Shipping Terms

Minimum Order Quantity

1 Set

Price

500~900

Packaging Details

Plywood Box

Delivery Time

6-10 work days

Payment Terms

,T/T

Supply Ability

200 sets per month

100kw DSP fully digital control - Special equipment for melting and overall hot forging Induction Heating LGBT High Quality

Get Best Price

Video

Touchscreen Frequency Induction Heating 300kw LGBT High Quality Heat Automatic Sealing Machine Shaft Quenching Machine

Get Best Price

Video

Touchscreen Frequency Induction Heating 200kw LGBT High Quality HeatFor Pipeline Surface Induction Heat Treatment Machine

Get Best Price

Video

Touchscreen Frequency Induction Heating 120kw LGBT High Quality Heat Treatment Machine From Professional Manufacturer

Get Best Price

8613825721469

sales06@yuyangtest.com

86-769-26622869

Contact Now

Product Description

High Frequency Induction Heating Machine 15KW

This 15KW high-frequency induction heating machine with 200-600A output and 0.06-0.12Mpa cooling system integrates precise heating and electrical performance testing functions. Specifically designed for metal workpieces, it serves manufacturing, research and development, and quality inspection applications.

Technical Specifications

Parameter	Value
Max Fluctuating Power	15KW
Fluctuating Frequency	30-100KHZ
Heating Current	200-600A
Input Voltage	Single Phase, 380V
Flow Rate of Cooling Water	0.06-0.12Mpa, 7.5L/Min
Water Temperature Protecting Point	40°C

Key Features

IGBT inverter circuit in parallel connection for high load adaptability
High power output with fast heating speed and high efficiency
Compact design saves production space by 10 times
Safe operation without high-voltage equipment requirements
Comprehensive full load design for 24-hour continuous operation
Product line includes medium-frequency (15KVA-3000KVA) and high-frequency/ultra-high-frequency (3.2KVA-320KVA) equipment
Over 60 models available for various metal heating processes

Working Principle

Utilizing fully solid-state IGBT inverter module technology imported from Germany, the equipment generates a strong alternating magnetic field through the induction coil. This creates eddy currents on the workpiece surface, enabling rapid heating and instant temperature rise.

Applications

Heat Treatment

Surface quenching, annealing, tempering, and modulation of metal components

Welding & Joining

Braze welding, silver soldering, and brazing of dissimilar metals

Manufacturing Processes

Hot forging, hot fitting, smelting, and thermal assembly of micro-components

Testing & Quality Control

High-temperature testing of electrical terminals, motor windings, and thermal conductivity analysis

Economic Benefits

Compared to other heating methods, this induction heating system significantly improves economic benefits by enhancing workpiece quality, saving energy and materials, reducing labor intensity, and creating a better production environment.
