Name: Portable High Frequency Induction Heating Machine 40KW Automatic Induction Sealing Machine For Bottle for Electrical Test Set
Brand: DONGGUAN YUYANG INSTRUMENT CO., LTD
SKU: YY-40AC
Price: 2,000.00 USD
Availability: InStock

Home > Products > Electrical Test Set >

Portable High Frequency Induction Heating Machine 40KW Automatic Induction Sealing Machine For Bottle for Electrical Test Set

40KW induction sealing machine

portable high frequency heating machine

automatic bottle sealing machine

Place of Origin:

China

Brand Name:

YUYANG

Certification:

CE/CO

Model Number:

YY-40AC

Request A Quote

Product Details

Model:

YY-40AC

Work Power:

340V-430V Three Phase

Input Current:

41A

Fluctuating Output Power:

30-80khz

Output Current:

200-1800A

The Flow Rate Of Cooling Water:

0.08-0.16 Mpa 7.6L/Min

Water Temperature Protection Point:

40C

Product Size:

Main :780x370x620 Mm

Net Weight:

Main: 45 Kg ; Flexible Transformer: 6.5 Kg

Flexible Cable Length:

5 Meter

Highlight:

40KW induction sealing machine

portable high frequency heating machine

automatic bottle sealing machine

Payment & Shipping Terms

Minimum Order Quantity

1 Set

Price

1000~3000

Packaging Details

Plywood Box

Delivery Time

6-10 work days

Payment Terms

,T/T

Supply Ability

200 sets per month

100kw DSP fully digital control - Special equipment for melting and overall hot forging Induction Heating LGBT High Quality

Get Best Price

Video

Touchscreen Frequency Induction Heating 300kw LGBT High Quality Heat Automatic Sealing Machine Shaft Quenching Machine

Get Best Price

Video

Touchscreen Frequency Induction Heating 200kw LGBT High Quality HeatFor Pipeline Surface Induction Heat Treatment Machine

Get Best Price

Video

Touchscreen Frequency Induction Heating 120kw LGBT High Quality Heat Treatment Machine From Professional Manufacturer

Get Best Price

8613825721469

sales06@yuyangtest.com

86-769-26622869

Contact Now

Product Description

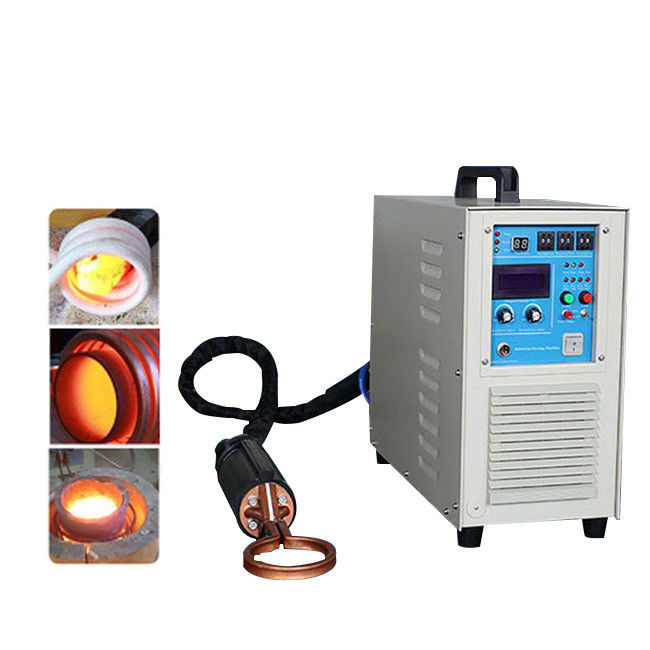

Portable High Frequency Induction Heating Machine 40KW

This 40KW automatic induction sealing machine for bottles and electrical test sets features advanced IGBT inverter technology in parallel connection, delivering exceptional load adaptability, high power output, rapid heating speeds, and operational efficiency.

Technical Specifications

Parameter	Value
Max Fluctuating Power	40KVA
Fluctuating Frequency	30-80KHZ
Heating Current	200-1800A
Input Voltage	Three Phase, 340V-430V
Flow Rate of Cooling Water	0.08-0.16Mpa, 7.6L/Min
Water Temperature Protecting Point	40°C

Key Features

IGBT inverter circuit in parallel connection for superior load adaptability
Comprehensive product line including medium-frequency (15KVA-3000KVA) and high-frequency/ultra-high-frequency (3.2KVA-320KVA) equipment
Over 60 models available for diverse metal heating processes
Compact design saves production space by 10 times compared to conventional equipment
Safe operation without high-voltage requirements
Full load design supports 24-hour continuous operation
High efficiency with fast heating speeds and energy savings

Working Principle

Utilizing fully solid-state IGBT inverter module technology imported from Germany, this equipment generates a strong alternating magnetic field through its induction coil. This creates eddy currents on the workpiece surface, enabling rapid heating and instant temperature rise for efficient thermal processing.

Industrial Applications

Hot Fitting & Thermal Assembly

Connects different metals or metals with nonmetals through heating based on thermal expansion principles. Applications include embedded welding of copper cores with aluminum sheets, compound of steel and plastic tubes, aluminum foil sealing, and motor rotor assembly.

Welding Applications

Brazing, silver soldering, and various welding processes
Hardware tools including diamond tools, abrasive tools, drilling tools, alloy saw blades, and cutting tools
Milling cutters, reamers, planning tools, and solid center bits

Heat Treatment

Surface hardening of gears, tooling, and mechanical components
Quenching for hardware tools including pliers, wrenches, hammers, axes, and cutting tools
Automotive and motorcycle components including crankshafts, connecting rods, piston pins, and valves
Electric tools including gears and axles

Annealing & Tempering

Stainless steel products including basins, cans, sinks, tubes, and tableware
Metal modulation and tempering processes

Additional Applications

Manufacturing: Thermal assembly of micro-components and brazing of dissimilar metals
Quality Inspection: High-temperature testing of electrical terminals and motor windings
Research & Development: Thermal conductivity testing and small-scale precious metal melting
Hot forging and smelting processes

This induction heating machine significantly enhances economic benefits, improves workpiece quality, saves energy and materials, reduces labor intensity, and improves production environments.
