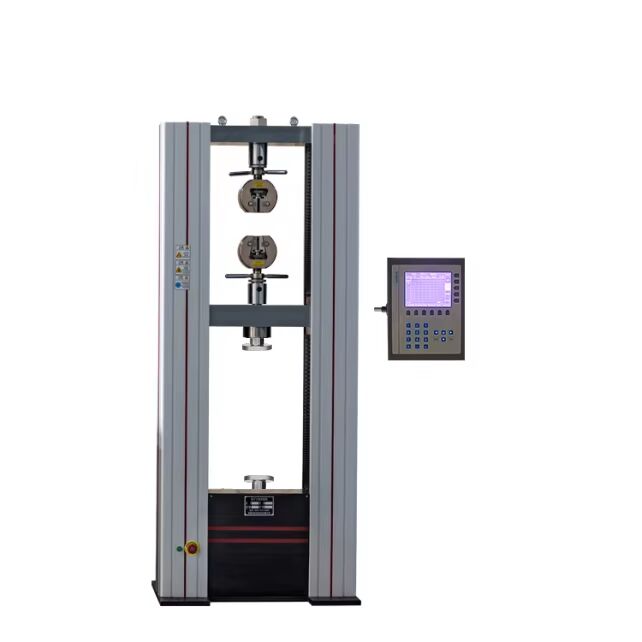

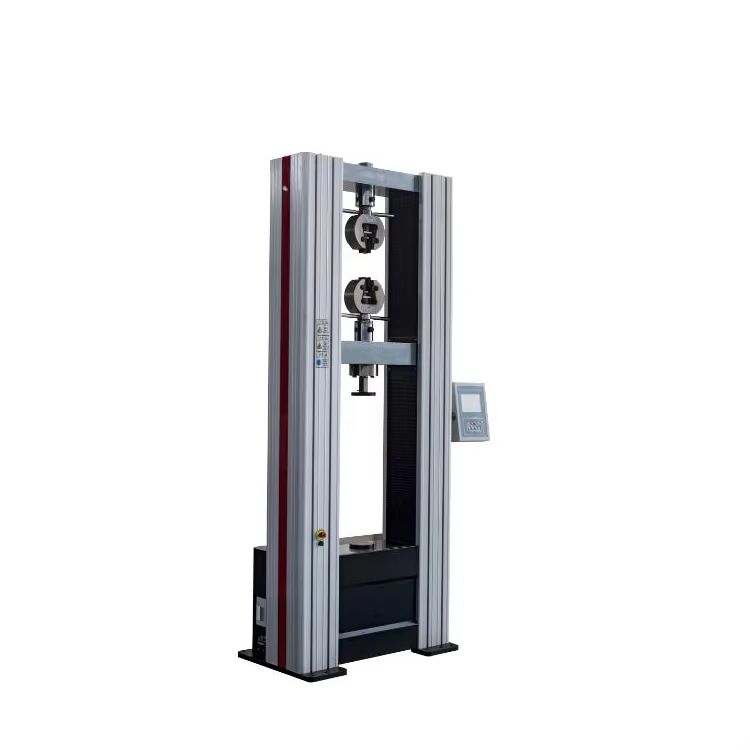

100kN Max Test Force Universal Testing Machine with Touch Screen Control and Computerized Digital Display

100kN Max Test Force Universal Testing Machine with Touch Screen Control and Computerized Digital Display

Place of Origin:

China

Brand Name:

YUYANG

Certification:

QB/T 2918-2007

Model Number:

YY1311

Contact Us
Request A Quote
Product Details
Application:
Tensile, Compression
Max Test Force:
100KN
Speed Range:
0.01-300mm/min
Driver Type:
Motor Load
Test Range:
1%-100%FS
Displacement Resolution:
0.01mm
Power:
220V 50Hz
Highlight:
100kn Universal Tensile Testing Machine, Tensile Compression Strength Universal Testing Machine, Touch Screen Utm 100 Kn Machine
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
Negotiable
Packaging Details
Plywood Case
Delivery Time
7-30 Days
Payment Terms
T/T,Western Union
Supply Ability
50 sets per month
Product Description
Product Description
100kN Max Test Force Universal Testing Machine with Touch Screen Control and Computerized Digital Display 0
100kN Max Test Force Universal Testing Machine with Touch Screen Control and Computerized Digital Display 1
Application:
This series material testing machine product group was primarily developed for standardized tests on ma- terials and
components. Used in conjunction with the intuitive measure and control software. Test Typical: wide range of tension, compression, bending, shearing and low cycle test. include metal, building components, rubber, plastic, spring, high strength steel (HSS),aerospace and automotive structures, screws, nuts,large fasteners, wood products etc.

Standards:
ASTMA370, ASTME4, ASTME8, ASTME9,
ASTM D638, ASTM D882, ASTM D3039,ASTM D3479, ASTM E517,ASTM D695,ASTM D6641, ASTM D3410, ASTM D7791, ASTM D412, ISO6892, ISO527-3, ISO527-4, ISO7438, ISO7500-1, etc.

Safety Divice: Stroke protection: Machinery,computer double protection, prevent over preset;

Force protection: system setting Emergency stop device: handing emergencies
Specification
100kN Max Test Force Universal Testing Machine with Touch Screen Control and Computerized Digital Display 2
Control Mode
Digital Display System
Model
YYS-5D
YYS-10D
YYS-20D
YYS-30D
YYS-50D
YYS-100D
Max Load
5KN
10KN
20KN
30KN
50KN
100KN
Load Accuracy
Grade 1
Test Range
2-100%FS
Tensile/
Compression Space
800mm
789mm
750mm
650mm
Test Width
300mm
315mm
400mm
410mm
Deformation Accuracy
≤±1%
Displacement Resolution
0.01m
Crosshead Speed Range
0.001~500mm/min
Overall Dimensions (L*W*H)
420*300*1500mm
663*430*1700mm
770*500*1830mm
800*500*1950mm
Power
0.3kw
0.75kw
1kw
Operating Temperature
0 to +38°C (+32 to +100°F)
Humidity Range
10% to 90% non-condensing
NOTE:
1. Extra wide and/or extra height frames are available.
2. Power supply system is completely customizable.
100kN Max Test Force Universal Testing Machine with Touch Screen Control and Computerized Digital Display 3


YYS-5D 5kN Digital Display Electronic Tensile Testing Machine
100kN Max Test Force Universal Testing Machine with Touch Screen Control and Computerized Digital Display 4


YYS-10D 10kN Digital Display Electronic Tensile Testing Machine
100kN Max Test Force Universal Testing Machine with Touch Screen Control and Computerized Digital Display 5


YYS-20D 20kN Digital Display Electronic Tensile Testing Machine
100kN Max Test Force Universal Testing Machine with Touch Screen Control and Computerized Digital Display 5
YYS-30D 30kN Digital Display Electronic Tensile Testing Machine
100kN Max Test Force Universal Testing Machine with Touch Screen Control and Computerized Digital Display 5
YYS-50D 50kN Digital Display Electronic Tensile Testing Machine
100kN Max Test Force Universal Testing Machine with Touch Screen Control and Computerized Digital Display 8
YYS-100D 100kN Digital Display Electronic Tensile Testing Machine

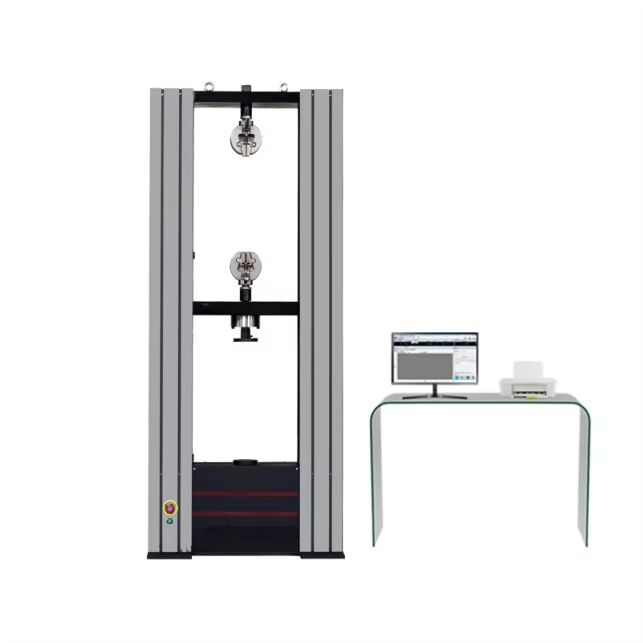

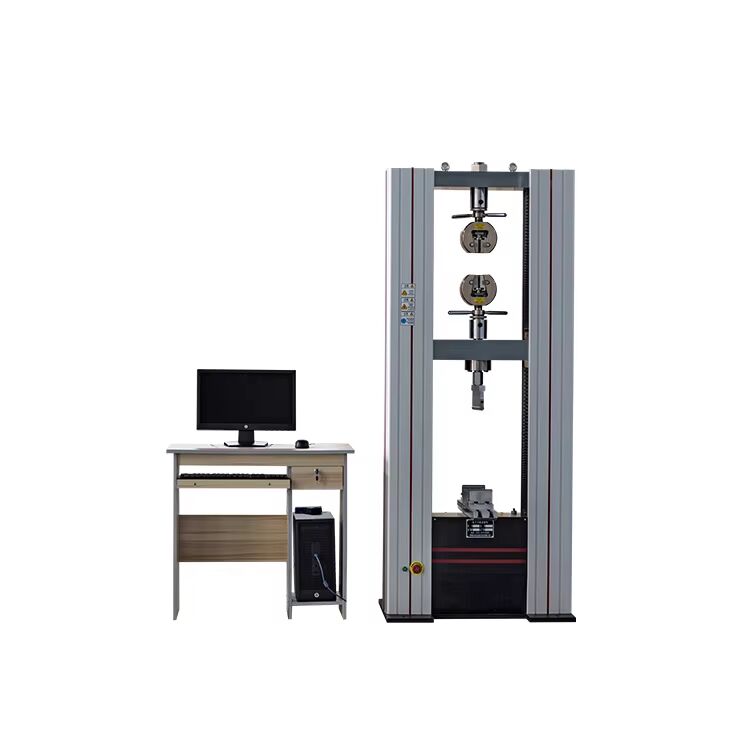

Control Mode
Computer Control System
Model
YYD-5D
YYD-10D
YYD-20D
YYD-30D
YYD-50D
YYD-100D
Max Load
5kn
10kn
20kn
30kn
50kn
100kn
Load Accuracy
Grade 1 or Grade 0.5
Test Range
2-100%FS or 0.4-100%FS
Load Resolution
1/500000FS
Test Control Mode
3 closed loop control, stress, strain and displacement
Tensile/
Compression Space
800mm
789mm
750mm
650mm
Test Width
300mm
315mm
400mm
410mm
Deformation Accuracy
≤±1%
Displacement Resolution
0.01mm
Crosshead Speed Range
0.001~500mm/min
Overall Dimensions (L*W*H)
420*300*1500mm
663*430*1700mm
770*500*1830mm
800*500*1950mm
Power
0.3kw
0.75kw
1kw
Supply Voltage
1P 220V±10%,50-60HZ,500W
N.W.
90kg
150kg
300kg
500kg
Operating Temperature
0 to +38°C (+32 to +100°F)
Humidity Range
10% to 90% non-condensing
NOTE:
1. Extra wide and/or extra height frames are available.
2. Power supply system is completely customizable.
100kN Max Test Force Universal Testing Machine with Touch Screen Control and Computerized Digital Display 9
YYD-5D 5kN Digital Display Electronic Tensile Testing Machine
100kN Max Test Force Universal Testing Machine with Touch Screen Control and Computerized Digital Display 10
YYD-10D 10kN Digital Display Electronic Tensile Testing Machine
100kN Max Test Force Universal Testing Machine with Touch Screen Control and Computerized Digital Display 11
YYD-20D 20kN Digital Display Electronic Tensile Testing Machine
100kN Max Test Force Universal Testing Machine with Touch Screen Control and Computerized Digital Display 11
YYD-30D 30kN Digital Display Electronic Tensile Testing Machine
100kN Max Test Force Universal Testing Machine with Touch Screen Control and Computerized Digital Display 11
YYD-50D 50kN Digital Display Electronic Tensile Testing Machine
100kN Max Test Force Universal Testing Machine with Touch Screen Control and Computerized Digital Display 11
YYD-100D 100kN Digital Display Electronic Tensile Testing Machine
