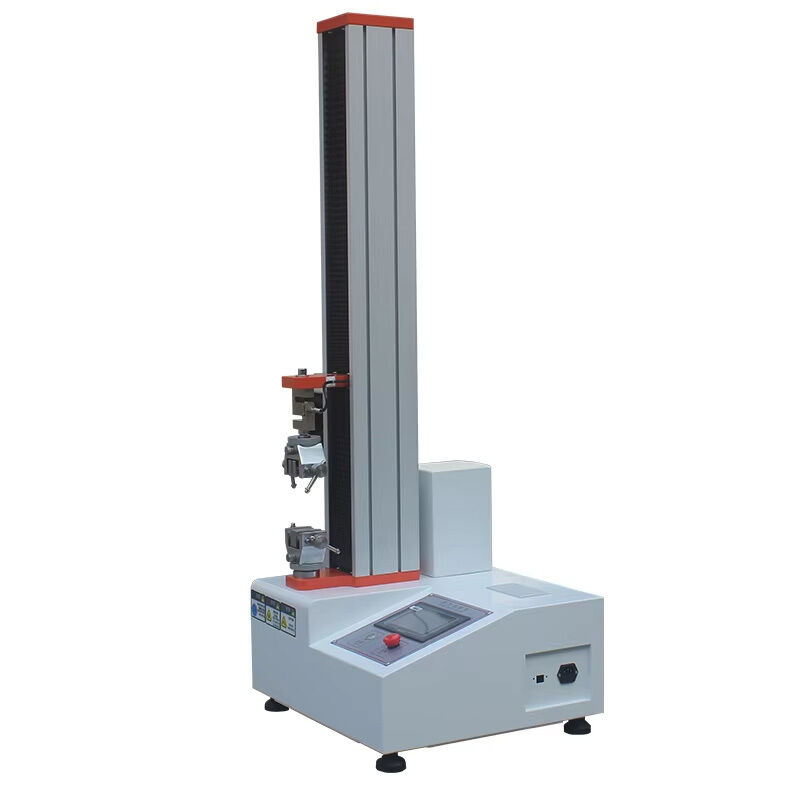

Single Column Electric Micro-Computer Universal Testing Machine
Advanced fabric tensile strength tester for comprehensive material testing applications across multiple industries.
Product Applications
Suitable for plastic film, composite film, adhesive, adhesive tape, medical patch, protective film, release paper, rubber, artificial leather, paper fiber and other products tensile strength, peeling strength, deformation rate, breaking force, peeling force, opening force and other performance tests.
Testing Standards Compliance
GB16491-2008, HGT 3844-2008, QBT 11130-1991, GB 13022-1991, HGT 3849-2008, GB 6349-1986, GB/T 1040.2-2006 2411, ISO 4587, ISO/TS 11405, ISO 527, ASTM E4, BS 1610, DIN 52121, ISO 7500, EN 10002, ASTM D628, ASTM D638, ASTM D412
Industry Applications
Suitable for industries including aerospace, petrochemicals, machinery manufacturing, metal materials & products, plastics, wires & cables, rubber, paper-plastic printing & packaging, adhesive tapes, luggage & bags, textile fibers, textiles, food, and pharmaceuticals.
Testing Capabilities
- Tests physical properties of various materials, finished products, and semi-finished products

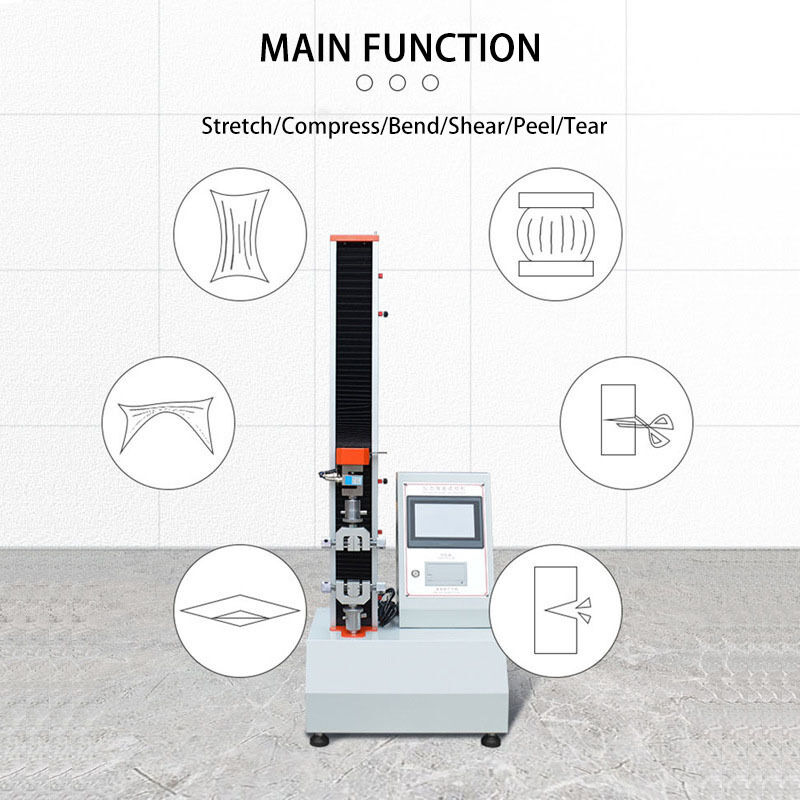

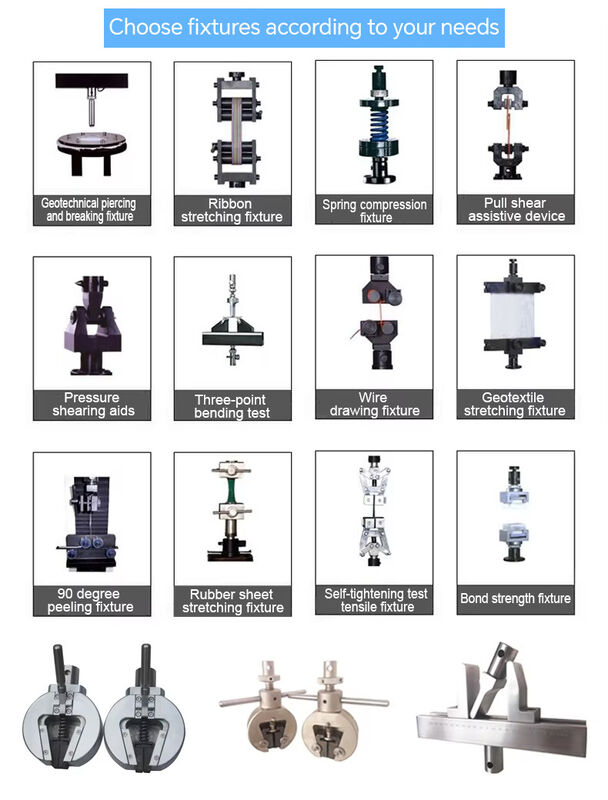

- With different fixtures, performs tension, compression, holding, pressure retention, bending, tearing, peeling, adhesion, and shearing tests
- Primarily tests mechanical properties of metals (tension, compression, bending)
- Automatically calculates parameters including tensile strength, yield strength, elongation, constant elongation stress, constant stress elongation, and modulus of elasticity
Key Features
- Innovative material testing machine with fully computerized operation
- Integrated panel and aluminum profile plate structure with high precision ball screws and guide columns
- Advanced servo motor drive system with stable operation and accurate speed control
- Computer-based control system with QCTech testing software for complete test parameter management
- Dedicated testing system supporting comprehensive data processing capabilities
Technical Specifications
Software Parameters
Software operating system language: English
Force units (N, KN, Kgf, Lbf) and length units (mm, cm, in) can be freely converted
Control Modes
- Computer software configures control methods for speed, load fracture, running time
- Dedicated manual operation box for calibration and positioning
- Automatic detection of material fracture and breakage with automatic stop
Available Test Data
Maximum strength, minimum strength, fracture value, upper/lower yield strength, tensile strength, compressive strength, modulus of elasticity, elongation, maximum value, minimum value, average value (select before ordering)
Safety Features
Multiple protections including overload, overcurrent, overvoltage, undervoltage, overspeed, and stroke limit
Data results follow the standard report format specified by current testing standards.
