High Precision Automatic Factory Price Intelligent Digital All-metal Detectors Food Production Line Metal Detector Conveyor Belt

High Precision Automatic Factory Price Intelligent Digital All-metal Detectors Food Production Line Metal Detector Conveyor Belt

all-metal food production detector

intelligent digital metal detector conveyor

high precision automatic metal detector

Place of Origin:

China

Brand Name:

YUYANG

Certification:

CE

Model Number:

YY056

Contact Us
Request A Quote
High Precision Automatic Factory Price Intelligent Digital All-metal Detectors Food Production Line Metal Detector Conveyor Belt
High Precision Automatic Factory Price Intelligent Digital All-metal Detectors Food Production Line Metal Detector Conveyor Belt High Precision Automatic Factory Price Intelligent Digital All-metal Detectors Food Production Line Metal Detector Conveyor Belt High Precision Automatic Factory Price Intelligent Digital All-metal Detectors Food Production Line Metal Detector Conveyor Belt High Precision Automatic Factory Price Intelligent Digital All-metal Detectors Food Production Line Metal Detector Conveyor Belt
Product Details
Detected Height(mm):
300
Belt Width(mm):
400
Belt Length:
1500
Detector Sensitivity(mm):
Fe 1.0mm SUS 2.0mm N-Fe 1.5mm
Speed Of Belt:
25M/min (Fixed Speed) ; If You Need Adjust 5-40 M/min , Please Inform Us Before Order
Load Ability:
20KG
Count:
100
Warning Method:
Sound And Light Alarm ; The Belt Can Be Stopped, Continue Run Or Belt Return ( The Option You Can Selected In PLC Controller)
Reject Ways:
No Auto-reject System ,belt Continue And Rejecting The Goods
Application:
Non-package ,plastic Package ,paper Bag Or Box (non-metallic) Product
Work Environment:
Temperature -10℃-40℃ ,relative Humility 30-90%
Highlight:

all-metal food production detector

,

intelligent digital metal detector conveyor

,

high precision automatic metal detector

Payment & Shipping Terms
Minimum Order Quantity
1PCS
Price
$2350-$2798
Delivery Time
7-30 Days
Payment Terms
T/T
RELATED PRODUCTS
Good price High Precision Automatic Factory Price Intelligent Digital All-metal Detectors Food Production Line Metal Detector Conveyor Belt online Video

High Precision Automatic Factory Price Intelligent Digital All-metal Detectors Food Production Line Metal Detector Conveyor Belt

Get Best Price
Good price Weight Packing Machine Metal Detector for Food Metal Detector Machine online Video

Weight Packing Machine Metal Detector for Food Metal Detector Machine

Get Best Price
Good price Rohs Certified High Sensitivity Digital Metal Detector Machine Precise Location Backlight for Industrial Metal Detector online Video

Rohs Certified High Sensitivity Digital Metal Detector Machine Precise Location Backlight for Industrial Metal Detector

Get Best Price
Good price Industrial Metal Detector Machine Wet and Dry Food Metal Detector with High Sensitivity for Various Applications online Video

Industrial Metal Detector Machine Wet and Dry Food Metal Detector with High Sensitivity for Various Applications

Get Best Price
Contact Us
8618938165008
sales11@yuyangtest.com
86-769-26622869
Contact Now
Product Description

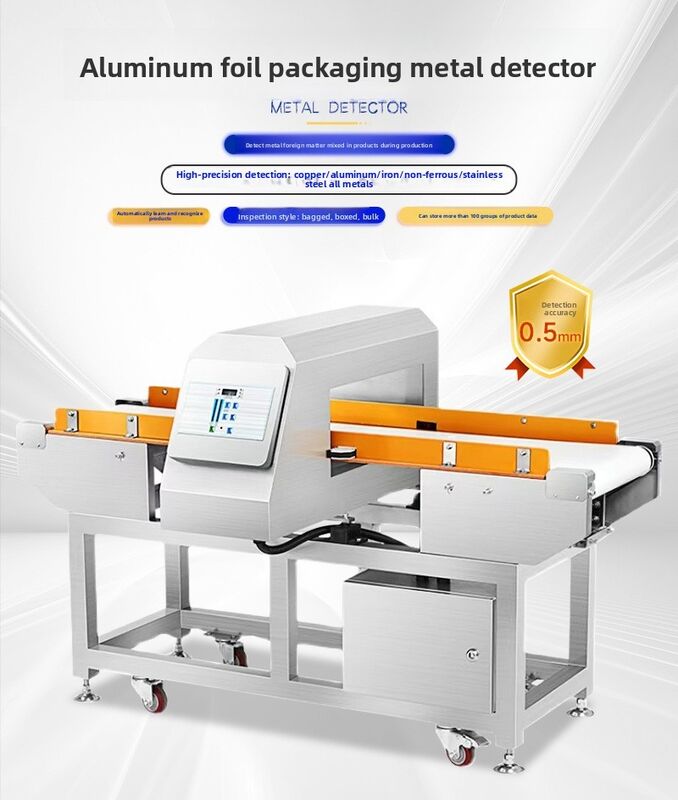

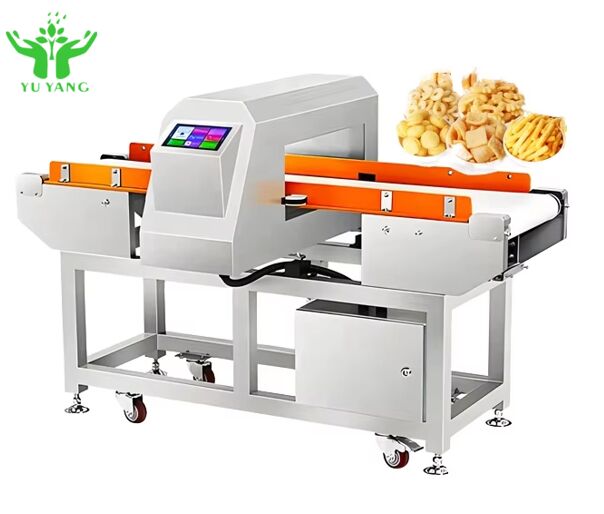

High Precision Automatic Digital Metal Detector
High sensitivity industrial metal detector with precise location backlight for accurate metal detection in various applications.
High Precision Automatic Factory Price Intelligent Digital All-metal Detectors Food Production Line Metal Detector Conveyor Belt 0 High Precision Automatic Factory Price Intelligent Digital All-metal Detectors Food Production Line Metal Detector Conveyor Belt 1
Product Specifications
Material Stainless steel
Machine Length 1600mm
Model Number YY056
Speed of Belt 25M/min (Fixed speed)
Speed of Transmission 18-40 meter/minute
Customized Support OEM, ODM, OBM
Type Laboratory equipment
Sample Plate Angle 0~70°
Dimension 72*53*56cm
Test Accuracy ±2％
Working Speed 0-18 rotate/min can be adjustable
Pressure Source Air pressure more than Min.5kg/cm²
Size Customized
Applications & Industries
The transmission-type all-digital metal detection machine is a new-generation intelligent metal detector based on microcomputer technology. With its high sensitivity and stable performance, it overcomes the technical hurdle that restricts most equipment to sensitive responses only to magnetic materials. Notably, it provides excellent performance in detecting moisture-rich and frozen products. The device can identify both ferrous and non-ferrous metals, making it a versatile choice for metal detection in quality-critical applications.
Primary Use Cases
Primarily used for: sauces, sausages, dumplings, ham, soup, sugar products, pickled foods, salted foods, fast food and other non-food industries. Features high detection sensitivity, anti-interference ability and waterproof standard for hard-working conditions. Detects mixed or lost needles, wires, or lead, copper, aluminium, tin, stainless steel and other kinds of metal in food, raw materials or products.
Key Features
  • Dual-circuit electromagnetic wave detection with analog and digital circuit combination
  • Enhanced detection sensitivity and greater reliability
  • Touch screen input with large-scale integrated circuitry
  • Higher detection intelligence with liquid crystal display
  • User-friendly interface design with multi-language operation
  • Dynamic zero point voltage tracking with automatic learning detection
  • Wide adjustable range of sensitivity with reverse detection function
  • Sound, light and alarm activation when metal is detected

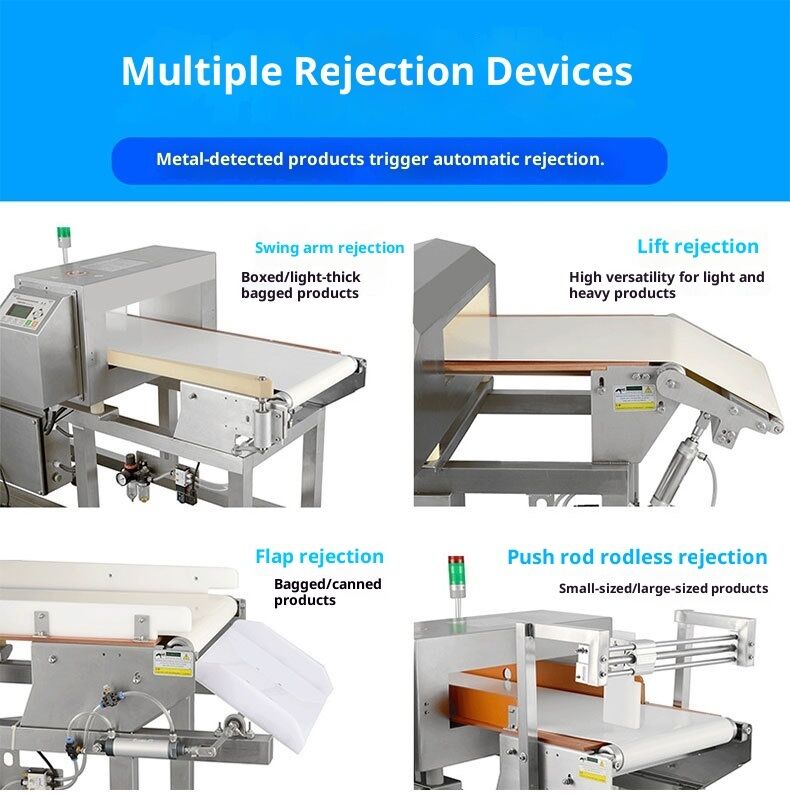

  • Option to stop machine or kick out unqualified products
Technical Parameters
Detected Height (mm) Belt Width (mm) Belt Length Fe Sensitivity (mm) SUS Sensitivity (mm) N-Fe Sensitivity (mm)
80 250 1500 0.8 1.0 1.0
100 250 1.0 2.0 1.5
150 400 1.2 2.5 2.0
200 400 1.5 2.5 2.0
250 400 2.0 3.0 2.5
300 400 2.5 3.5 3.0
350 400 3.0 4.0 3.5
Additional Specifications
  • Speed of belt: 25M/min (Fixed speed); Adjustable 5-40 M/min available upon request
  • Load ability: 20KG
  • Count: 100
  • Warning method: Sound and light alarm with PLC controller options
  • Reject Ways: Auto-reject system with continuous belt operation
  • Application: Non-package, plastic package, paper bag or box (non-metallic) products
  • Work Environment: Temperature -10℃-40℃, relative humidity 30-90%
Advanced Technology Features
  • Balance theory implementation for enhanced reliability
  • Phase-adapted technology to effectively eliminate product effect
  • Self-learning function with automatic digital learning and storage of product features
  • Easy operation without manual adjustment of technical parameters
