108L 270L 480L 600L Laboratory Salt Spray Test Chamber for Corrosion Test Environmental Climate Test Chamber

108L 270L 480L 600L Laboratory Salt Spray Test Chamber for Corrosion Test Environmental Climate Test Chamber

108L salt spray test chamber

270L corrosion test chamber

600L environmental climate chamber

Place of Origin:

China

Brand Name:

YUYANG

Certification:

CE,ISO: 3768, 3769, 3770; ASTM: 8117

Model Number:

YY60

Contact Us
Request A Quote
Product Details
Model:
YY60
Test Chamber:
600*450*400mm (W*D*H)mm
Outside Box Size:
1070*600*1180mm (W*D*H)mm
Power:
220V
Supply:
Single Phase:2KW 50HZ
Standard:
ISO 9227、ASTM B-117
Saline Spray Test:
NSS(neutral)
Test Room:
35℃±1℃ 47℃±1℃
Pressure Air Barrel:
CASS(copper Acetate)
Corrosion Resistance Test:
50℃±1℃ 63℃±1℃
Highlight:

108L salt spray test chamber

,

270L corrosion test chamber

,

600L environmental climate chamber

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
$655
Packaging Details
Plywood Case
Delivery Time
15-20 work days
Payment Terms
T/T
Supply Ability
100 sets per month
Product Description
Laboratory Salt Spray Test Chamber for Corrosion Testing
108L 270L 480L 600L Laboratory Salt Spray Test Chamber for Corrosion Test Environmental Climate Test Chamber 0
Product Overview
Our laboratory salt spray test chambers are designed to meet international testing standards including ASTM B117, ISO 9227, ISO 7253, and ASTM G85. These chambers provide reliable corrosion testing for various materials and surface treatments.
Testing Standards Compliance
The chambers comply with multiple international standards: CNS 3627, 3385, 4159, 7669, 8886; JIS D0201, H8502, H8610, K5400, Z2371; ISO 3768, 3769, 3770; ASTM 8117, B268.
Application Scope
Ideal for testing corrosion resistance of various surface treatments including coatings, electroplating, organic and inorganic films, anodize treatments, anti-rust oils, and other anti-corrosion treatments to establish product quality.

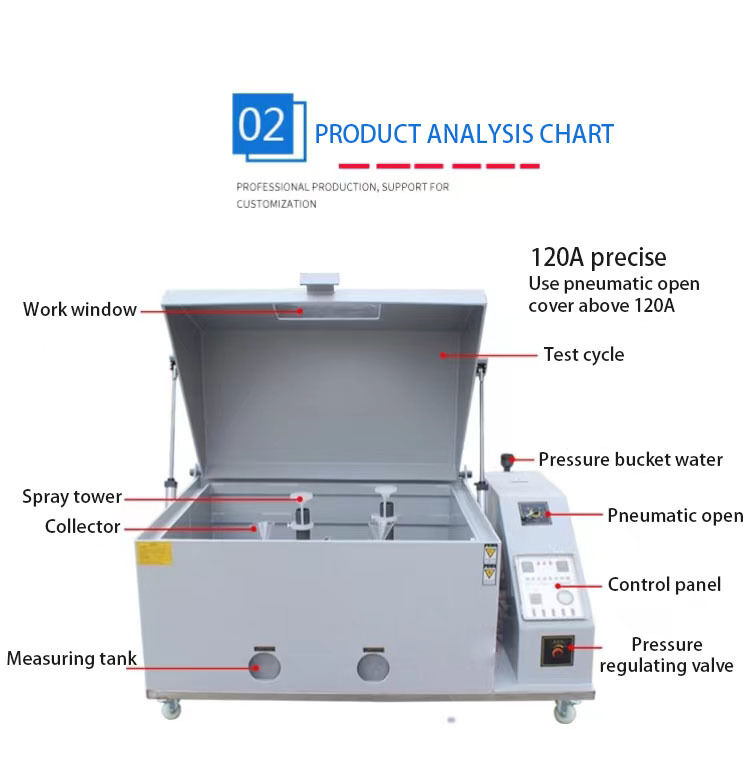

Chamber Design Features
  • Transparent chamber cover for clear sample observation
  • Waterproof structure prevents salt spray overflow
  • Tower spraying system with salt solution filtration
  • Non-crystal nozzles for even salt spray distribution
  • Adjustable settlement control
Technical Specifications
Model YY1015-60 YY1015-90 YY1015-120
Inner Box Size (L×W×H) cm 60×40×45 90×60×50 120×100×50
Lab Volume 108L 270L 600L
Temperature Range 35°C~55°C
Temperature Precision ±1°C
Spray Quantity 1.0~2.0 ml/80cm²/hr
Brine Tank Capacity 15L 25L 40L
Power Requirements 1AC220V, 10A 1AC220V, 15A AC 1, 220V, 30A
Key Features
  • Durable hard PVC construction with anti-corrosion properties
  • Low loading threshold for ergonomic operation
  • Easy-open pneumatically operated canopy with safety interlock
  • Dry seal gasket prevents operator clothing wetting
  • Timed canopy lock and automatic purge system
  • Accessible salt spray atomizers in transparent acrylic
  • External portable salt solution tank for easy cleaning
  • Central viewing window for unobstructed observation
  • Mobility features with castors and fork lift runners
  • Multiple safety protection devices
Warranty & Support: Includes 1-year warranty, calibration certificate, consumables spares kit, and fallout measuring kit.
