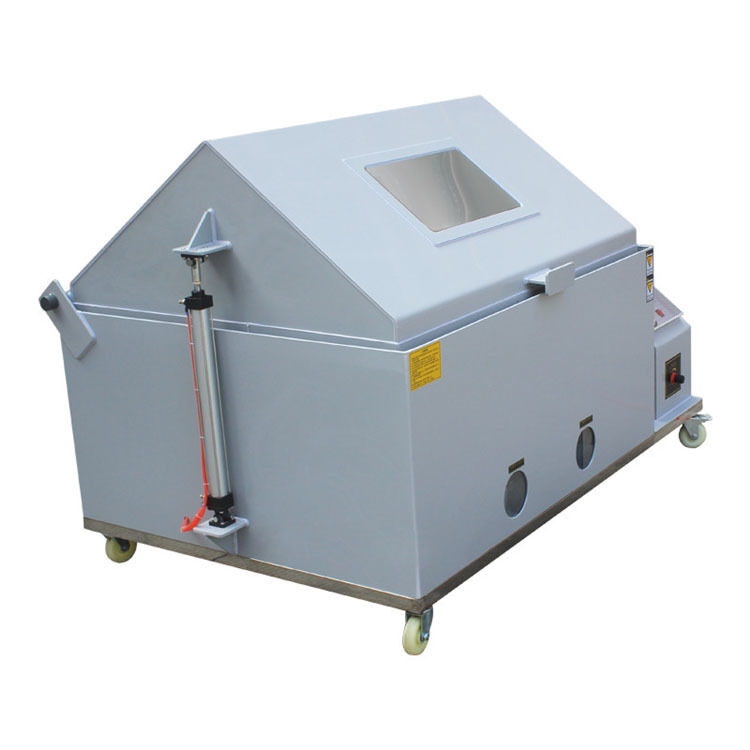

Economic Stainless Steel Automatic Industrial Salt Spray Tester Machine
This ASTM standard compliant salt spray test machine is designed for electronic laboratory use and corrosion testing applications. The equipment meets rigorous international standards for salt spray corrosion testing procedures.
Testing Standards Compliance
The salt spray cabinet is engineered to meet ASTM B117 testing standards, along with ISO 9227, ISO 7253, and ASTM G85 requirements. These are the most widely recognized standards for salt spray cabinet testing periods in industrial applications.
Note: ASTM B117 establishes the standard practice for operating salt spray (fog) equipment and defines operational parameters, but does not specify test specimen requirements or result interpretation guidelines.
Application Scope
Suitable for salt spray corrosive testing of protection layers on components, parts, electronic and electrical components, metal materials, and various industrial products including:
- Zinc plating corrosion resistance testing
- Salt water resistant spray paint evaluation
- Powder coating salt spray testing
- Stainless steel corrosion resistance verification
- Paint coating durability assessment
Design Standards
CNS: 3627, 3385, 4159, 7669, 8886
JIS: D0201, H8502, H8610, K5400, Z2371
ISO: 3768, 3769, 3770
ASTM: 8117, B268

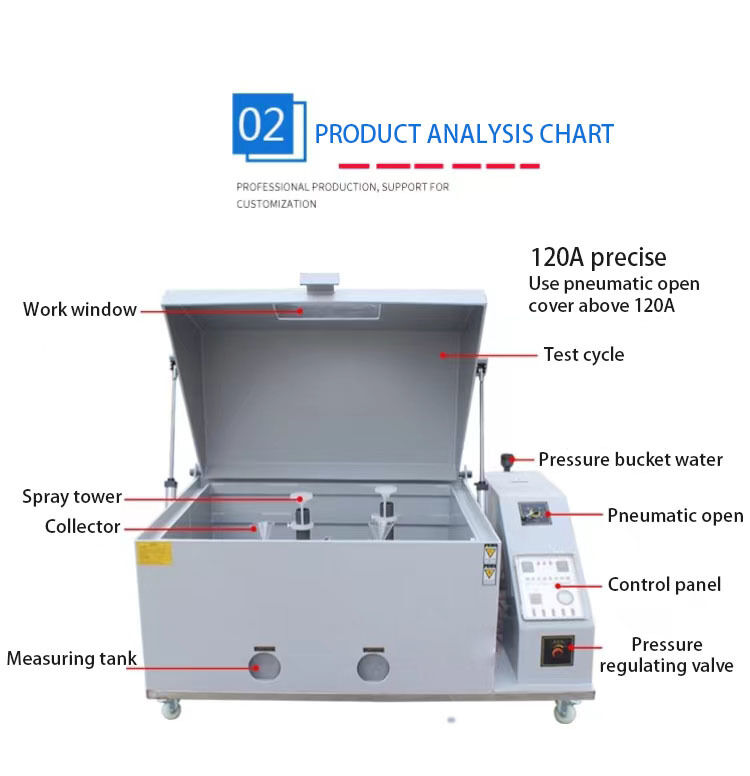

Chamber Structure Features
Transparent Cover: Made of transparent materials for clear visibility of tested samples and spray distribution
Waterproof Design: Advanced waterproof structure between cover and body prevents salt spray overflow

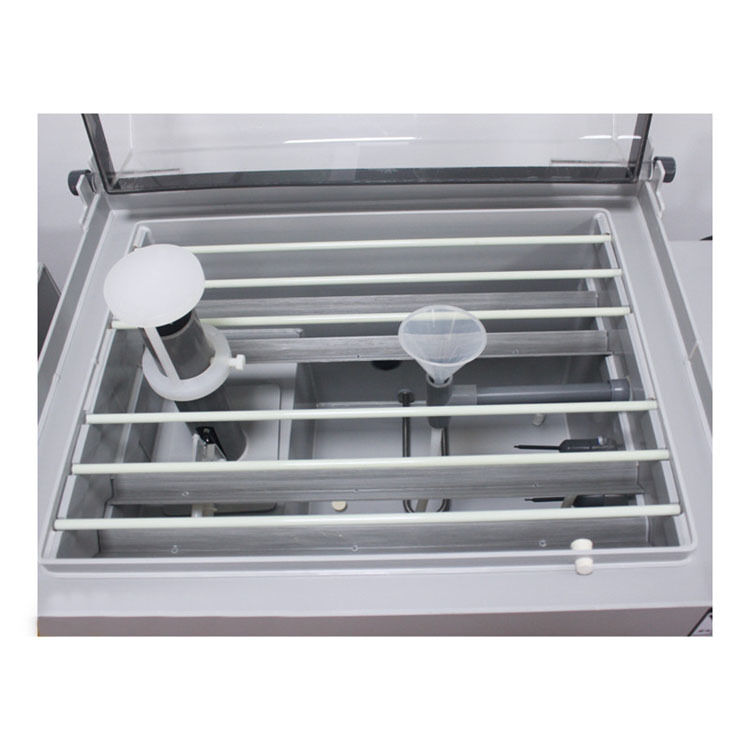

Tower Spray System: Equipped with salt solution filtration and non-crystal nozzles for uniform spray distribution
Technical Specifications
| Parameter |
YY1015-60 |
YY1015-90 |
YY1015-120 |
| Inner Box Size (L×W×H) cm |
60×40×45 |
90×60×50 |
120×100×50 |
| Outside Box Size (L×W×H) cm |
107×60×118 |
141×88×128 |
190×130×140 |
| Lab Volume |
108L |
270L |
600L |
| Brine Tank Capacity |
15L |
25L |
40L |
| Power Requirements |
1AC220V, 10A |
1AC220V, 15A |
AC 1, 220V, 30A |
Performance Specifications
Temperature Range: 35°C~55°C
Temperature Fluctuations: ≤±0.5°C
Temperature Uniformity: ≤±2°C
Temperature Precision: ±1°C
Spray Quantity: 1.0~2.0 ml/80cm²/hr
Test Chamber Temperature: NSS ACSS 35±1°C, CASS: 50±1°C
Saturated Air Barrel Temperature: NSS ACSS 47±1°C, CASS 63±1°C
Brine Temperature: 35°C±1°C
Key Features
- Low loading threshold for ergonomic loading and unloading
- "Easy Open" pneumatically operated canopy with safety interlock
- Dry seal gasket to prevent operator clothing wetting
- Timed canopy lock and automatic purge system
- Accessible salt spray atomizers in transparent acrylic
- External portable salt solution tank for easy cleaning
- Central viewing window for unobstructed visual access
- Base castors and integrated forklift runners for mobility
- Multiple safety protection devices (water shortage, over temperature, phase protection)
Construction & Warranty
Material: Durable hard PVC construction with imported P.V.C. rigid plastic board for both internal and external components
Properties: Anti-corrosion, easy to clean and operate
Warranty: 1 year comprehensive warranty
Standard Accessories: Test salt, measure bucket, tools, and consumables spares kit included
