Name: Touch Screen Economical Salt Spray Test Chamber Salt Spray Test Chamber
Brand: DONGGUAN YUYANG INSTRUMENT CO., LTD
SKU: YY60
Price: 655 USD
Availability: InStock

Home > Products > Environmental Test Chamber >

Touch Screen Economical Salt Spray Test Chamber Salt Spray Test Chamber

touch screen salt spray chamber

economical salt spray test chamber

environmental test chamber with warranty

Place of Origin:

China

Brand Name:

YUYANG

Certification:

CE,ISO: 3768, 3769, 3770; ASTM: 8117

Model Number:

YY60

Request A Quote

Touch Screen Economical Salt Spray Test Chamber Salt Spray Test Chamber

Product Details

Model:

YY60

Test Chamber:

600*450*400mm (W*D*H）mm

Outside Box Size:

1070*600*1180mm (W*D*H）mm

Power:

220V

Supply:

Single Phase:2KW 50HZ

Standard:

ISO 9227、ASTM B-117

Saline Spray Test:

NSS(neutral)

Test Room:

35℃±1℃ 47℃±1℃

Pressure Air Barrel:

CASS（copper Acetate）

Corrosion Resistance Test:

50℃±1℃ 63℃±1℃

Highlight:

touch screen salt spray chamber

economical salt spray test chamber

environmental test chamber with warranty

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

$655

Packaging Details

Plywood Case

Delivery Time

15-20 work days

Payment Terms

T/T

Supply Ability

100 sets per month

Lab Programmable Digital UV Accelerated Aging Test Chamber 220V Electronic Power 1 Year Warranty Plastic Glass Construction

Get Best Price

Video

Constant Temperature and Humidity Testing Equipment Stability Environmental for Test Chamber

Get Best Price

Climate Chamber Constant Temperature and Humidity Testing Chamber

Get Best Price

Video

Constant Temperature and Humidity Test Equipment High and Low Temperature Testing Chamber Simulated Environmental Test Chamber

Get Best Price

8618938165008

sales11@yuyangtest.com

86-769-26622869

Contact Now

Product Description

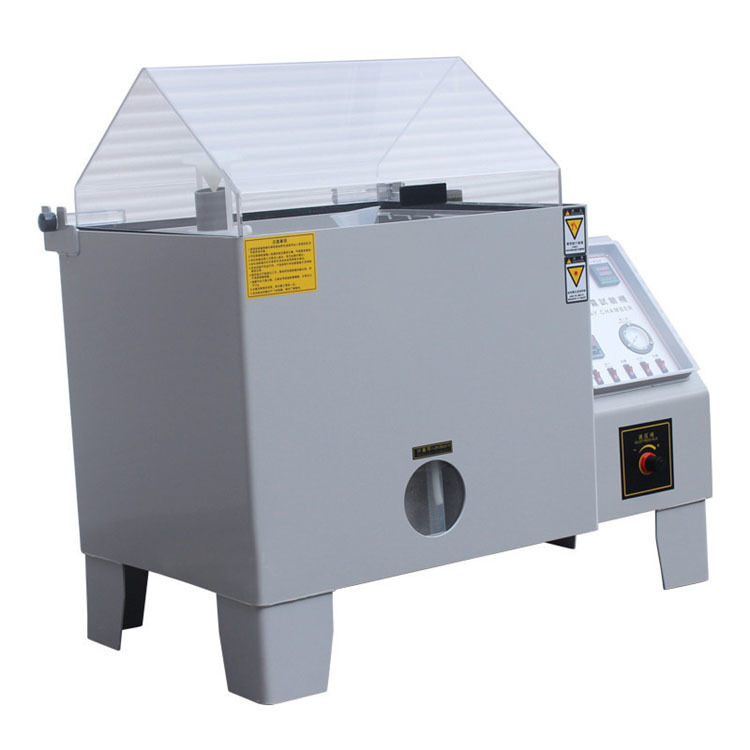

Touch Screen Economical Salt Spray Test Chamber

Product Overview

This salt spray test chamber is designed to meet popular international testing standards including ASTM B117, ISO 9227, ISO 7253, and ASTM G85. While ASTM B117 establishes the operational parameters for salt spray test equipment, our chamber provides the reliable platform needed for comprehensive corrosion resistance testing.

Testing Applications

Ideal for evaluating corrosion resistance of various surface treatments including zinc plating, salt-resistant spray paint, powder coating, stainless steel, anti-rust oils, electroplating, organic and inorganic films, and anodize treatments.

Compliance Standards

Supported Testing Standards: CNS: 3627, 3385, 4159, 7669, 8886
JIS: D0201, H8502, H8610, K5400, Z2371
ISO: 3768, 3769, 3770
ASTM: 8117, B268

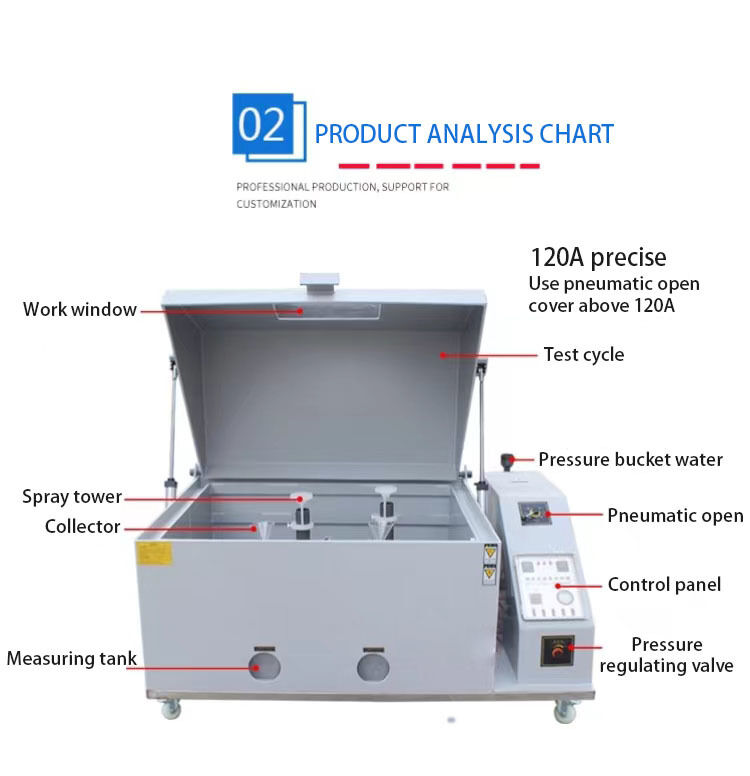

Chamber Design Features

Transparent chamber cover for clear sample visibility during testing
Waterproof structure prevents salt spray overflow
Tower spraying system with salt solution filtration
Non-crystal nozzles for uniform salt spray distribution
Settlement adjustment capability

Technical Specifications

Construction	Durable hard PVC construction
Corrosion Resistance	Anti-corrosion design
Operation	Easy clean & operate
Warranty	1 year warranty

Key Operational Features

Low loading threshold for ergonomic sample handling
"Easy Open" pneumatically operated canopy with safety interlock
Dry seal gasket prevents operator clothing contamination
Timed canopy lock and automatic purge system
Accessible salt spray atomizers in transparent acrylic
External portable salt solution tank for easy cleaning
Central viewing window for unobstructed interior observation
Base castors and integrated forklift runners for mobility
Customizable canopy color options
Includes calibration certificate and consumables spares kit
Fallout measuring kit included

Intended Use

This salt spray test machine is specifically designed for corrosion testing of protective layers on components, parts, electronic and electrical components, metal materials, and various industrial products to establish product quality and durability.
