Name: Salt Spray Testing Equipment,Salt Spray Test Chamber Tester Machine
Brand: DONGGUAN YUYANG INSTRUMENT CO., LTD
SKU: YY60
Price: 655 USD
Availability: InStock

Home > Products > Environmental Test Chamber >

Salt Spray Testing Equipment,Salt Spray Test Chamber Tester Machine

salt spray test chamber machine

salt spray testing equipment with warranty

environmental test chamber for corrosion

Place of Origin:

China

Brand Name:

YUYANG

Certification:

CE,ISO: 3768, 3769, 3770; ASTM: 8117

Model Number:

YY60

Request A Quote

Salt Spray Testing Equipment,Salt Spray Test Chamber Tester Machine

Product Details

Model:

YY60

Test Chamber:

600*450*400mm (W*D*H）mm

Outside Box Size:

1070*600*1180mm (W*D*H）mm

Power:

220V

Supply:

Single Phase:2KW 50HZ

Standard:

ISO 9227、ASTM B-117

Saline Spray Test:

NSS(neutral)

Test Room:

35℃±1℃ 47℃±1℃

Pressure Air Barrel:

CASS（copper Acetate）

Corrosion Resistance Test:

50℃±1℃ 63℃±1℃

Highlight:

salt spray test chamber machine

salt spray testing equipment with warranty

environmental test chamber for corrosion

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

$655

Packaging Details

Plywood Case

Delivery Time

15-20 work days

Payment Terms

T/T

Supply Ability

100 sets per month

Lab Programmable Digital UV Accelerated Aging Test Chamber 220V Electronic Power 1 Year Warranty Plastic Glass Construction

Get Best Price

Video

Constant Temperature and Humidity Testing Equipment Stability Environmental for Test Chamber

Get Best Price

Climate Chamber Constant Temperature and Humidity Testing Chamber

Get Best Price

Video

Constant Temperature and Humidity Test Equipment High and Low Temperature Testing Chamber Simulated Environmental Test Chamber

Get Best Price

8618938165008

sales11@yuyangtest.com

86-769-26622869

Contact Now

Product Description

Salt Spray Testing Equipment

Professional salt spray test chamber tester machine for corrosion resistance testing of various materials and surface treatments.

Product Overview

This salt spray testing equipment meets international standards including ASTM B117, ISO 9227, ISO 7253, and ASTM G85. The chamber is designed for conducting salt spray corrosion tests on various materials and protective coatings.

Testing Applications

Ideal for salt spray testing of zinc plating, salt-resistant spray paint, powder coating, stainless steel, anti-rust oil, and other corrosion protection treatments. Helps establish product quality and durability.

Design Standards Compliance

CNS: 3627, 3385, 4159, 7669, 8886
JIS: D0201, H8502, H8610, K5400, Z2371
ISO: 3768, 3769, 3770
ASTM: B117

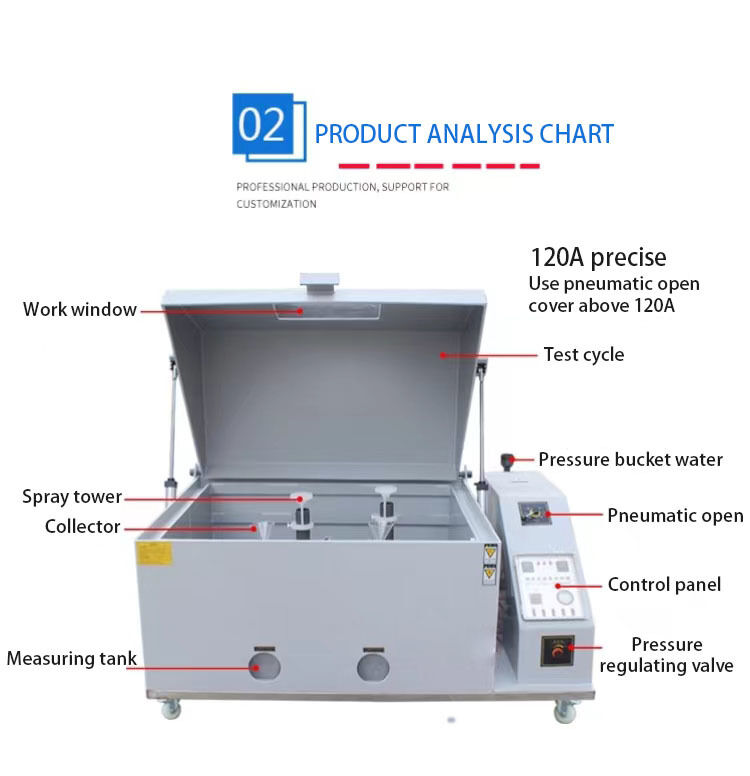

Chamber Construction Features

Transparent chamber cover for clear visibility of test samples and spray distribution
Waterproof structure between cover and body prevents salt spray overflow
Tower spraying system with salt solution filtration and non-crystal nozzles
Adjustable salt spray distribution and settlement control

Technical Specifications

Model	YY1015-60	YY1015-90	YY1015-120
Inner Box Size (L×W×H) cm	60×40×45	90×60×50	120×100×50
Outside Box Size (L×W×H) cm	107×60×118	141×88×128	190×130×140
Lab Volume	108L	270L	600L
Brine Tank Capacity	15L	25L	40L
Power Supply	1AC220V, 10A	1AC220V, 15A	AC 1, 220V, 30A

Temperature Parameters

Temperature Range: 35°C~55°C
Temperature Fluctuations: ≤±0.5°C
Temperature Uniformity: ≤±2°C
Temperature Precision: ±1°C
Test Chamber Temperature: NSS ACSS 35±1°C, CASS: 50±1°C
Saturated Air Barrel Temperature: NSS ACSS 47±1°C, CASS 63±1°C
Brine Temperature: 35°C±1°C
Spray Quantity: 1.0~2.0 ml/80cm²/hr
PH: NSS ACSS 6.5~7.2, CASS 3.0~3.2

Key Features

Durable hard PVC construction with anti-corrosion properties
Low loading threshold for ergonomic loading and unloading
Easy-open pneumatically operated canopy with safety interlock
Dry seal gasket to prevent operator clothing wetting
Timed canopy lock and automatic purge system
Accessible salt spray atomizers in transparent acrylic
External portable salt solution tank for easy cleaning
Central viewing window for unobstructed visibility
Base castors and integrated forklift runners for mobility
Choice of canopy colors available

Warranty & Maintenance

Easy to clean and operate with 1-year warranty included. Designed for low maintenance and long-term reliability in industrial testing environments.
