Name: 108L 270L Salt Spray Cyclic Corrosion Test Chamber Test Equipment for Electronics
Brand: DONGGUAN YUYANG INSTRUMENT CO., LTD
SKU: YY60
Price: 655 USD
Availability: InStock

Home > Products > Environmental Test Chamber >

108L 270L Salt Spray Cyclic Corrosion Test Chamber Test Equipment for Electronics

108L salt spray corrosion test chamber

270L cyclic corrosion test equipment

electronics environmental test chamber

Place of Origin:

China

Brand Name:

YUYANG

Certification:

CE,ISO: 3768, 3769, 3770; ASTM: 8117

Model Number:

YY60

Request A Quote

108L 270L Salt Spray Cyclic Corrosion Test Chamber Test Equipment for Electronics

Product Details

Model:

YY60

Test Chamber:

600*450*400mm (W*D*H）mm

Outside Box Size:

1070*600*1180mm (W*D*H）mm

Power:

220V

Supply:

Single Phase:2KW 50HZ

Standard:

ISO 9227、ASTM B-117

Saline Spray Test:

NSS(neutral)

Test Room:

35℃±1℃ 47℃±1℃

Pressure Air Barrel:

CASS（copper Acetate）

Corrosion Resistance Test:

50℃±1℃ 63℃±1℃

Highlight:

108L salt spray corrosion test chamber

270L cyclic corrosion test equipment

electronics environmental test chamber

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

$655

Packaging Details

Plywood Case

Delivery Time

15-20 work days

Payment Terms

T/T

Supply Ability

100 sets per month

Lab Programmable Digital UV Accelerated Aging Test Chamber 220V Electronic Power 1 Year Warranty Plastic Glass Construction

Get Best Price

Video

Constant Temperature and Humidity Testing Equipment Stability Environmental for Test Chamber

Get Best Price

Climate Chamber Constant Temperature and Humidity Testing Chamber

Get Best Price

Video

Constant Temperature and Humidity Test Equipment High and Low Temperature Testing Chamber Simulated Environmental Test Chamber

Get Best Price

8618938165008

sales11@yuyangtest.com

86-769-26622869

Contact Now

Product Description

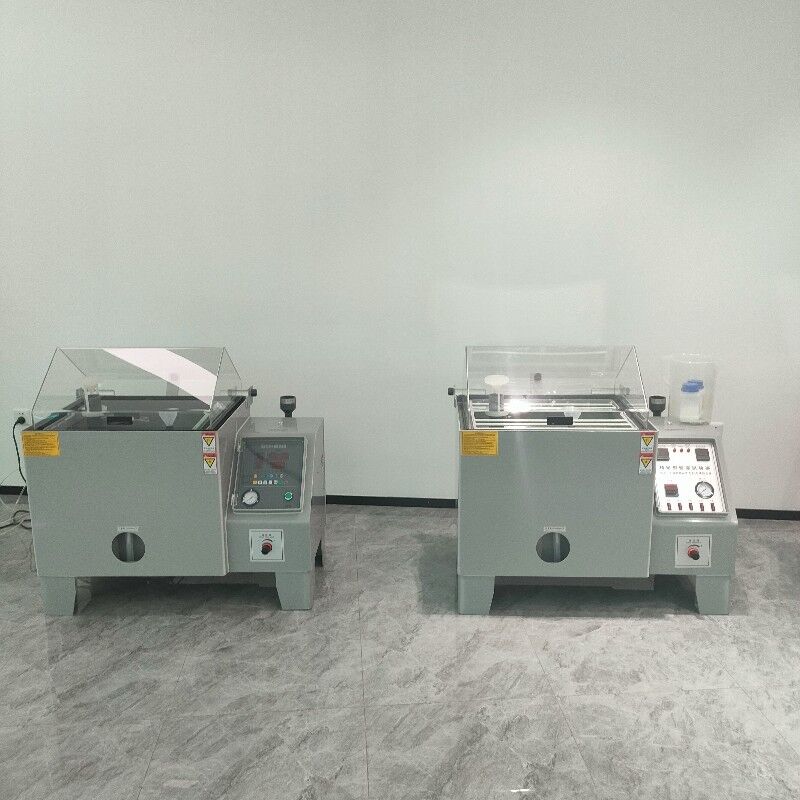

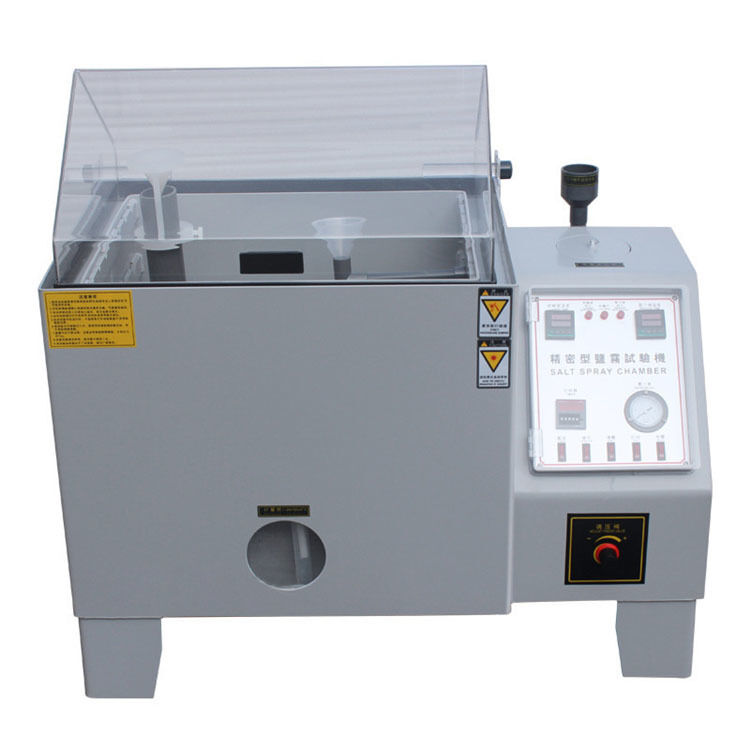

108L 270L Salt Spray Cyclic Corrosion Test Chamber

Professional test equipment for evaluating corrosion resistance of electronics and various materials.

Product Overview

This salt spray test chamber is designed for surface treatment evaluation of various materials including paint, electroplating, organic and inorganic coatings, anode processing, and anti-rust oils. It tests the corrosion resistance of products after anti-corrosive treatments.

Application Scope

The saltwater spray testing machine evaluates corrosion resistance for various material surface treatments including coatings, electroplating, organic and inorganic films, anodize treatments, anti-rust oils, and other anti-corrosion processes to establish product quality standards.

Design Standards Compliance

Standard	Specifications
CNS	3627, 3385, 4159, 7669, 8886
JIS	D0201, H8502, H8610, K5400, Z2371
ISO	3768, 3769, 3770
ASTM	8117, B268

Intended Purpose

This salt spray test machine is specifically designed for salt spray corrosive testing of protection layers on components, parts, electronic and electrical parts, metal materials, and industrial products.

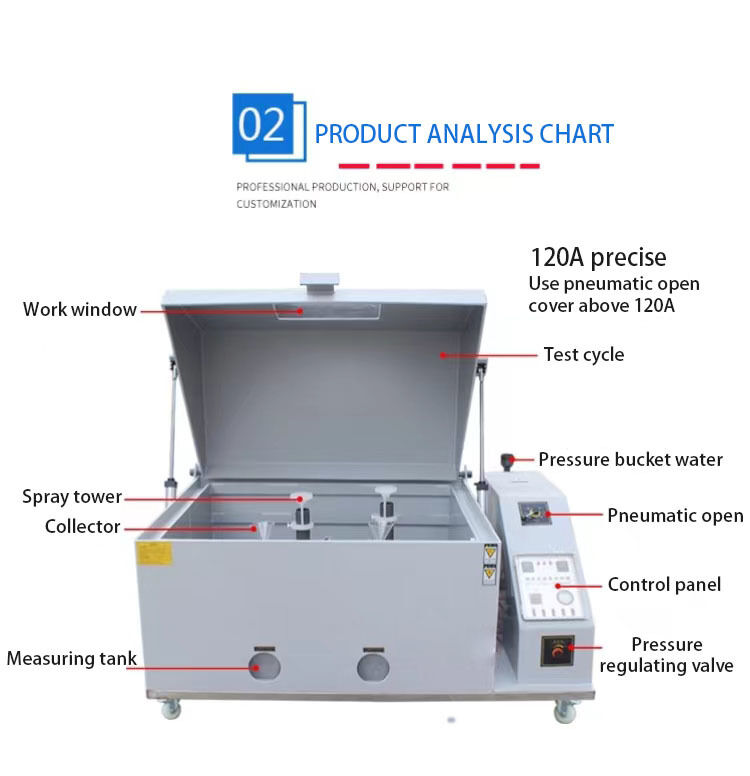

Chamber Structure Features

Transparent chamber cover provides clear visibility of test samples and spray distribution
Waterproof structure between cover and body prevents salt spray overflow
Tower spraying system with salt solution filtration and non-crystal nozzle for even salt spray distribution and adjustable settlement

Technical Specifications

Durable hard PVC construction
Anti-corrosion design
Easy clean & operate
1 year warranty

Key Features

Low loading threshold for ergonomic loading and unloading
"Easy Open" pneumatically operated canopy with safety interlock
Dry seal gasket to prevent operator clothing wetting
Timed canopy lock and automatic purge system
Easily accessible salt spray atomizers in transparent acrylic
External portable salt solution tank for easy cleaning
Central viewing window for unimpeded visual access
Base castors and integrated forklift runners for transportation
Choice of canopy color
Calibration certificate included
Consumables spares kit
Fallout Measuring Kit
