Name: Salt Spray Test Sst Machine Salt Fog Corrosion Testing Machine Salt Spray Test Chamber
Brand: DONGGUAN YUYANG INSTRUMENT CO., LTD
SKU: YY60
Price: 655 USD
Availability: InStock

Home > Products > Environmental Test Chamber >

Salt Spray Test Sst Machine Salt Fog Corrosion Testing Machine Salt Spray Test Chamber

salt spray test chamber corrosion testing

salt fog corrosion testing machine

environmental test chamber salt spray

Place of Origin:

China

Brand Name:

YUYANG

Certification:

CE,ISO: 3768, 3769, 3770; ASTM: 8117

Model Number:

YY60

Request A Quote

Salt Spray Test Sst Machine Salt Fog Corrosion Testing Machine Salt Spray Test Chamber

Product Details

Model:

YY60

Test Chamber:

600*450*400mm (W*D*H）mm

Outside Box Size:

1070*600*1180mm (W*D*H）mm

Power:

220V

Supply:

Single Phase:2KW 50HZ

Standard:

ISO 9227、ASTM B-117

Saline Spray Test:

NSS(neutral)

Test Room:

35℃±1℃ 47℃±1℃

Pressure Air Barrel:

CASS（copper Acetate）

Corrosion Resistance Test:

50℃±1℃ 63℃±1℃

Highlight:

salt spray test chamber corrosion testing

salt fog corrosion testing machine

environmental test chamber salt spray

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

$655

Packaging Details

Plywood Case

Delivery Time

15-20 work days

Payment Terms

T/T

Supply Ability

100 sets per month

Lab Programmable Digital UV Accelerated Aging Test Chamber 220V Electronic Power 1 Year Warranty Plastic Glass Construction

Get Best Price

Video

Constant Temperature and Humidity Testing Equipment Stability Environmental for Test Chamber

Get Best Price

Climate Chamber Constant Temperature and Humidity Testing Chamber

Get Best Price

Video

Constant Temperature and Humidity Test Equipment High and Low Temperature Testing Chamber Simulated Environmental Test Chamber

Get Best Price

8618938165008

sales11@yuyangtest.com

86-769-26622869

Contact Now

Product Description

Salt Spray Test Machine - Corrosion Testing Chamber

The salt spray test chamber is designed for evaluating the corrosion resistance of various materials after surface treatments including paint, electroplating, organic and inorganic coatings, anode processing, and anti-rust oil applications.

Application Scope

This saltwater spray testing machine assesses corrosion resistance for multiple material surface treatments including coatings, electroplating, organic and inorganic films, anodize treatments, anti-rust oil, and other anti-corrosion processes to establish product quality standards.

Design Standards Compliance

CNS: 3627, 3385, 4159, 7669, 8886
JIS: D0201, H8502, H8610, K5400, Z2371
ISO: 3768, 3769, 3770
ASTM: 8117, B268

Testing Purpose

The salt spray test machine performs corrosive testing on protection layers for components, parts, electronic and electrical components, metal materials, and industrial products.

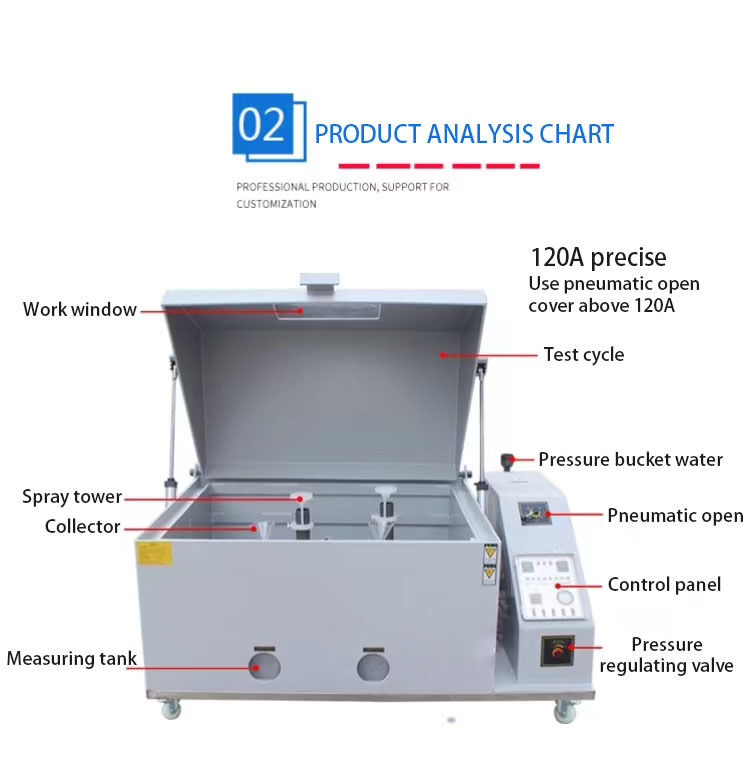

Chamber Structure Features

Transparent chamber cover for clear visibility of tested samples and spray status
Waterproof structure between cover and body prevents salt spray overflow
Tower spraying system with salt solution filtration and non-crystal nozzle for even distribution and adjustable settlement

Technical Specifications

Construction Material	Durable hard PVC
Corrosion Resistance	Anti-corrosion design
Operation	Easy clean & operate
Warranty	1 year warranty

Key Operational Features

Low loading threshold for ergonomic loading and unloading
"Easy Open" pneumatically operated canopy with safety interlock
Dry seal gasket prevents operator clothing from getting wet
Timed canopy lock and automatic purge system with fresh air after testing
Easily accessible salt spray atomizers in transparent acrylic for maintenance
External portable salt solution tank for easy cleaning (115L for 300L, 73L for 450L, 90L for 1000L+ chambers)
Central viewing window for unobstructed visual access to chamber interior and test materials
