Name: Quartz Glass Nozzle Salt Spray Chamber Titanium Heater Easy Clean No Leakage Test Machine
Brand: DONGGUAN YUYANG INSTRUMENT CO., LTD
SKU: YY60
Price: 655 USD
Availability: InStock

Home > Products > Environmental Test Chamber >

Quartz Glass Nozzle Salt Spray Chamber Titanium Heater Easy Clean No Leakage Test Machine

Quartz glass nozzle salt spray chamber

Titanium heater test machine

No leakage environmental test chamber

Place of Origin:

China

Brand Name:

YUYANG

Certification:

CE,ISO: 3768, 3769, 3770; ASTM: 8117

Model Number:

YY60

Request A Quote

Quartz Glass Nozzle Salt Spray Chamber Titanium Heater Easy Clean No Leakage Test Machine

Product Details

Model:

YY60

Test Chamber:

600*450*400mm (W*D*H）mm

Outside Box Size:

1070*600*1180mm (W*D*H）mm

Power:

220V

Supply:

Single Phase:2KW 50HZ

Standard:

ISO 9227、ASTM B-117

Saline Spray Test:

NSS(neutral)

Test Room:

35℃±1℃ 47℃±1℃

Pressure Air Barrel:

CASS（copper Acetate）

Corrosion Resistance Test:

50℃±1℃ 63℃±1℃

Highlight:

Quartz glass nozzle salt spray chamber

Titanium heater test machine

No leakage environmental test chamber

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

$655

Packaging Details

Plywood Case

Delivery Time

15-20 work days

Payment Terms

T/T

Supply Ability

100 sets per month

Lab Programmable Digital UV Accelerated Aging Test Chamber 220V Electronic Power 1 Year Warranty Plastic Glass Construction

Get Best Price

Video

Constant Temperature and Humidity Testing Equipment Stability Environmental for Test Chamber

Get Best Price

Climate Chamber Constant Temperature and Humidity Testing Chamber

Get Best Price

Video

Constant Temperature and Humidity Test Equipment High and Low Temperature Testing Chamber Simulated Environmental Test Chamber

Get Best Price

8618938165008

sales11@yuyangtest.com

86-769-26622869

Contact Now

Product Description

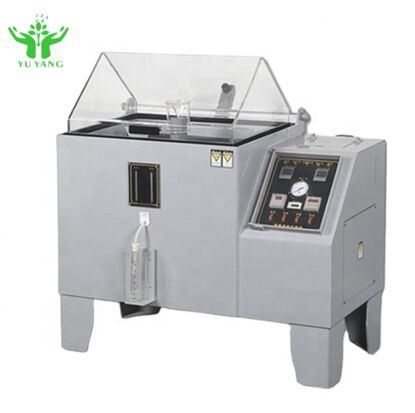

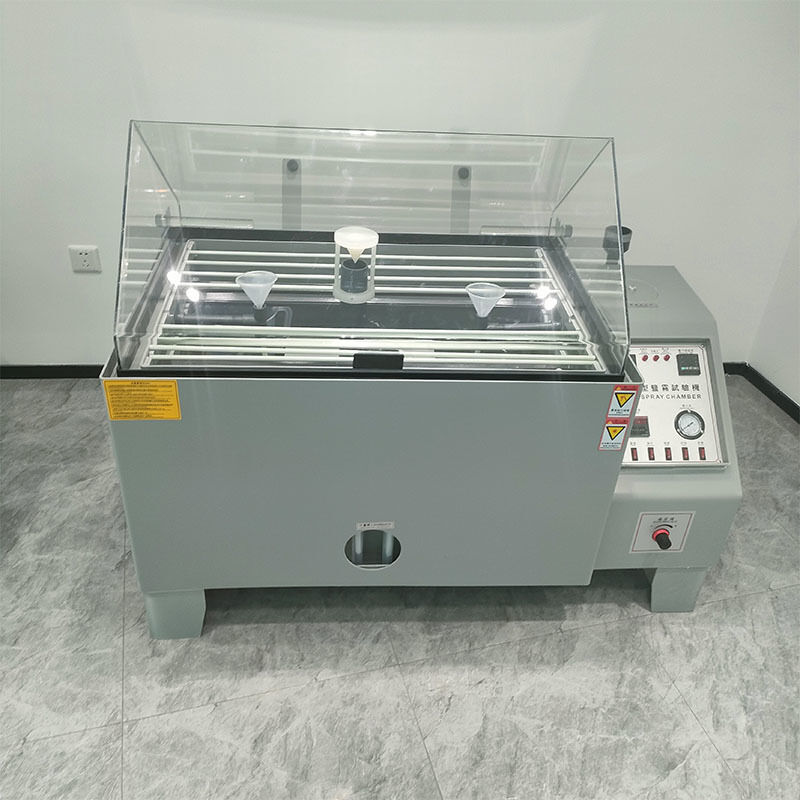

Quartz Glass Nozzle Salt Spray Chamber with Titanium Heater

This advanced salt spray test chamber is designed for evaluating the corrosion resistance of various materials after surface treatment. Featuring quartz glass nozzles and titanium heaters, the machine ensures easy cleaning and leak-free operation for reliable testing results.

Application Scope

The salt spray testing machine is used for various material surface treatments including coatings, electroplating, organic and inorganic films, anodize treatments, anti-rust oils, and other anti-corrosion treatments to test corrosion resistance and establish product quality standards.

Design Standards Compliance

CNS: 3627, 3385, 4159, 7669, 8886

JIS: D0201, H8502, H8610, K5400, Z2371

ISO: 3768, 3769, 3770

ASTM: 8117, B268

Testing Purpose

This salt spray test machine is applicable for salt spray corrosive testing of protection layers on components, parts, electronic and electrical parts, metal materials, and industrial products.

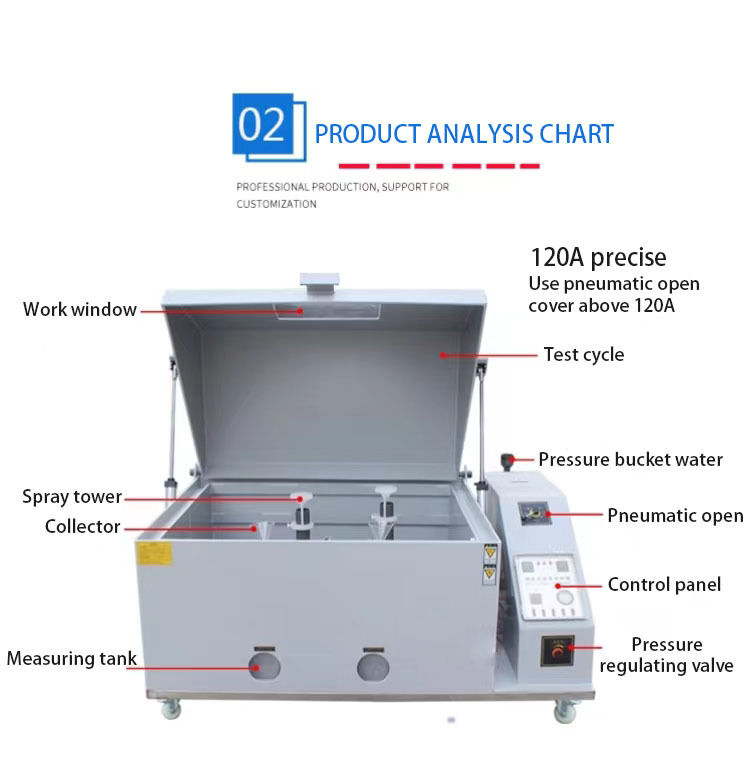

Chamber Structure Features

Transparent cover allows visual inspection of test specimens and spraying conditions
Waterproof structure between cover and body prevents salt spray leakage
Tower spraying configuration with salt solution filtration system
Non-crystal nozzle enables uniform salt spray distribution and adjustable settlement

Technical Specifications

Construction Material	Durable hard PVC
Corrosion Resistance	Anti-corrosion design
Operation	Easy clean & operate
Warranty	1 year warranty

Key Features

Low loading threshold for ergonomic loading and unloading
"Easy Open" pneumatically operated canopy with safety interlock
Dry seal gasket prevents operator clothing from getting wet
Timed canopy lock and automatic purge system
Easily accessible salt spray atomizers in transparent acrylic
External portable salt solution tank for easy cleaning
Central viewing window for unimpeded visual access
Base castors and integrated forklift runners for transportation
Choice of canopy colors available
