Name: Microcomputer Electrical Porcelain Insulator Horizontal Universal Tensile Testing Machine
Brand: DONGGUAN YUYANG INSTRUMENT CO., LTD
SKU: YYD100
Price: 1100 USD
Availability: InStock

Home > Products > Tensile Testing Machine >

Microcomputer Electrical Porcelain Insulator Horizontal Universal Tensile Testing Machine

electrical porcelain insulator testing machine

universal tensile testing machine

horizontal microcomputer tensile tester

Place of Origin:

China

Brand Name:

YUYANG

Certification:

QB/T 2918-2007

Model Number:

YYD100

Request A Quote

Microcomputer Electrical Porcelain Insulator Horizontal Universal Tensile Testing Machine

Product Details

Unit (switchable):

N, KN, Kgf, Lbf, Mpa, Lbf/In2, Kgf/mm2

Max Load:

100kn

Load Accuracy:

±0.25%

Speed Accuracy:

±0.5%

Net Weight:

550kg

Testing Method:

Tensile; Peel Strength

Country:

China

Unit Switchover:

G, KG, N, LB

Warranty:

1 Year

Highlight:

electrical porcelain insulator testing machine

universal tensile testing machine

horizontal microcomputer tensile tester

Payment & Shipping Terms

Minimum Order Quantity

Price

$1100

Packaging Details

plywood case

Payment Terms

Western Union, T/T, L/C,Paypal

Supply Ability

3pcs /week

Fabric Breaking Universal Tensile Strength Compression Testing Machine

Get Best Price

High Precision Tensile Testing Machine For Packaging

Get Best Price

100KG Spring Elasticity Intelligent Pull Machine Electronic Strap Tensile Testing Machine

Get Best Price

Vertical Manual Tensile Testing Machine Manual Digital Universal Tensile Strength Testing Machine

Get Best Price

Contact Now

Product Description

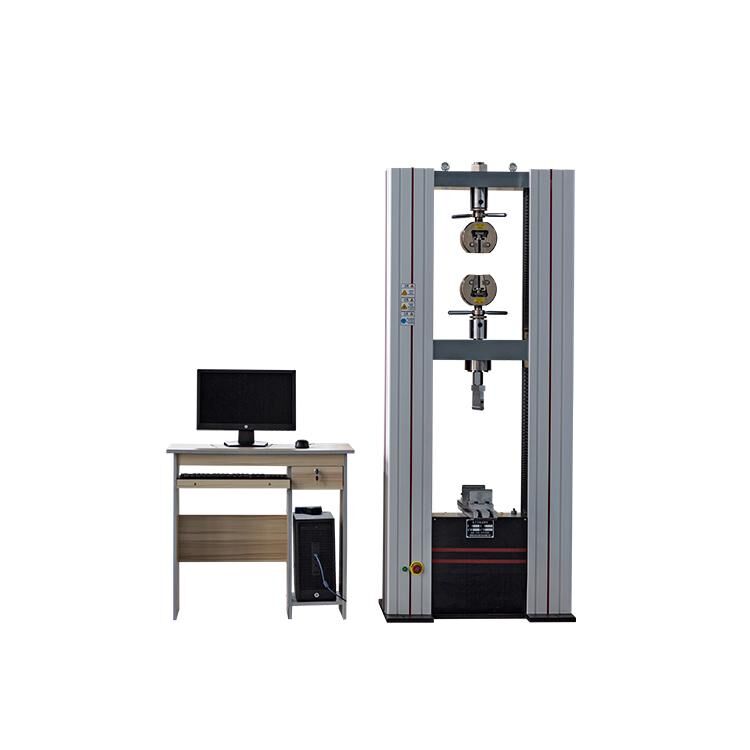

Microcomputer Electrical Porcelain Insulator Horizontal Universal Tensile Testing Machine

The YYD100 Microcomputer Electrical Porcelain Insulator Horizontal Universal Tensile Testing Machine represents the latest generation of microcomputer-controlled electronic universal testing equipment. This advanced system is engineered for comprehensive mechanical performance testing of metals, non-metals, and composite materials.

Key Functions and Features

Microcomputer closed-loop control system for precise operation
Wide and accurate loading speed and force measurement range
High precision and sensitivity in load and displacement measurement
Beautiful design with convenient operation and stable, reliable performance
Low noise, high efficiency, and pollution-free operation
Wedge-shaped translational structure with manual rotary clamping
Sample clamping without additional force application
Convenient, reliable clamping that prevents slippage

Applications

Ideal for manufacturing industries including metals, adhesives, pipes, profiles, aerospace, petrochemical, waterproof materials, wires and cables, textiles, fibers, rubber, ceramics, food, medical packaging, geotextiles, films, wood, paper, and quality supervision departments. Also suitable for teaching demonstrations in colleges and universities.

Technical Specifications

Parameter	Specification
Maximum Load	100 kN
Accuracy	Grade 1
Testing Range	2% - 100% F.S (Max Load)
Maximum Tensile/Compression Space	650 mm
Maximum Test Width	400 mm
Displacement Control Speed Range	0.001 - 500 mm/min
Measuring Accuracy	Better than ±1% of Indicator
Resolution of Effort	1/300,000 of Full Scale
Displacement Accuracy	±1%
Displacement Error	Within ±1% of Indicator
Deformation Resolution	0.001 mm
Deformation Relative Error	Within ±1%
Host Size (L×W×H)	815 × 500 × 1975 mm (Customizable)
Net Weight	550 kg
Power Supply	Single-phase, 220V, 50Hz
Tensile Test Flat Jaw Range	0-7 mm, 7-14 mm, 14-20 mm
Tensile Test Round Jaw Range	4-9 mm, 9-14 mm, 14-20 mm
Power	1.5 kW

Product Configuration

Test Accessories

Tensile Fixture
Compression Fixture
Point Bending Fixture (Optional)

Documentation and Support

Operating instructions including user manual, packing list, warranty certificate, and factory inspection certificate
Software usage instructions: 1 paper version and 1 software backup CD
Random data documentation for original purchased components (computers, printers, etc.)
