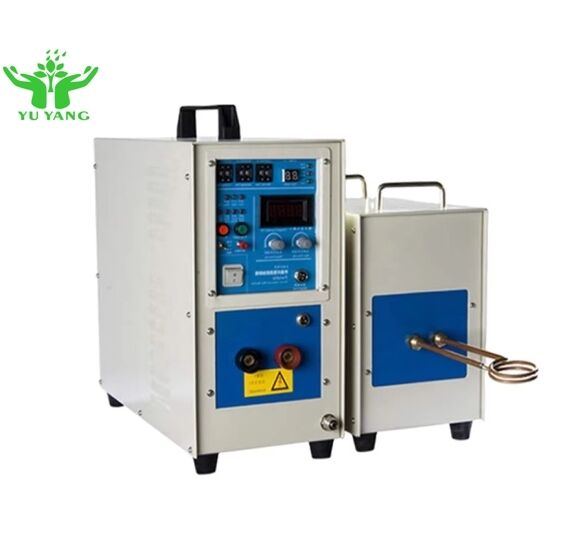

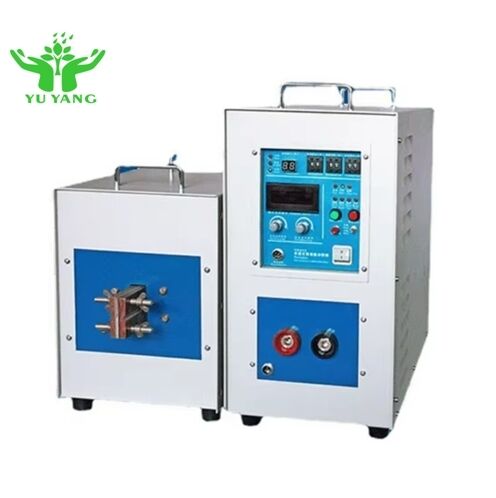

Handheld Heater Machine Quenching Welding Equipment Forging Soldering High Frequency Induction Heating Machine

Handheld Heater Machine Quenching Welding Equipment Forging Soldering High Frequency Induction Heating Machine

handheld induction heating machine

high frequency welding equipment

quenching forging heater machine

Place of Origin:

China

Brand Name:

YUYANG

Certification:

CE

Model Number:

YY-15AB

Contact Us
Request A Quote
Handheld Heater Machine Quenching Welding Equipment Forging Soldering High Frequency Induction Heating Machine
Handheld Heater Machine Quenching Welding Equipment Forging Soldering High Frequency Induction Heating Machine Handheld Heater Machine Quenching Welding Equipment Forging Soldering High Frequency Induction Heating Machine Handheld Heater Machine Quenching Welding Equipment Forging Soldering High Frequency Induction Heating Machine
Product Details
Max Fluctuating Power:
15KW
Work Power:
180V-250V
Input Current:
35A
Fluctuating Output Power:
15KVA
Fluctuating Frequency:
30-100KHZ
Output Current:
200-600A
The Flow Rate Of Cooling Water:
0.06-0.12Mpa 7.5L/Min
Water Temperature Protection Point:
40C
Product Size:
570x230x450mm
Net Weight:
27.5kg
Highlight:

handheld induction heating machine

,

high frequency welding equipment

,

quenching forging heater machine

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
$2000
Packaging Details
Plywood Box
Delivery Time
5-10 work days
Payment Terms
T/T, L/C, Western Union
Supply Ability
200 sets per month
RELATED PRODUCTS
Good price High Frequency Electromagnetic Induction Heating Generator for Steel Bar in Metal & Metallurgy Machinery online Video

High Frequency Electromagnetic Induction Heating Generator for Steel Bar in Metal & Metallurgy Machinery

Get Best Price
Good price Mini Automatic Plastic Glass Jar Sealing Machine Handheld Aluminum Foil Heat Hot Induction Packaging with Cap Lid 220v online Video

Mini Automatic Plastic Glass Jar Sealing Machine Handheld Aluminum Foil Heat Hot Induction Packaging with Cap Lid 220v

Get Best Price
Good price 15KW High Frequency Induction Heating Machine New Metal Copper Pipe Wire Welding Manufacturing Plants Construction Motor Engine online Video

15KW High Frequency Induction Heating Machine New Metal Copper Pipe Wire Welding Manufacturing Plants Construction Motor Engine

Get Best Price
Good price 20-100mm Aluminum Foil Lid Plastic Jar Sealing Heat Machine Handheld Induction Bottle Foil Sealer Metal Metallurgy Machinery online Video

20-100mm Aluminum Foil Lid Plastic Jar Sealing Heat Machine Handheld Induction Bottle Foil Sealer Metal Metallurgy Machinery

Get Best Price
Contact Us
8613265296009
sales13@yuyangtest.com
86-769-26622869
Contact Now
Product Description
High Frequency Induction Heating Machine
Portable handheld heater machine for quenching, welding, forging, and soldering applications with advanced high-frequency induction technology.
Key Characteristics
  • IGBT inverting device with automatic frequency tracking
  • High-frequency rapid heating with 20-30% lower power consumption than electronic tube induction heating
  • Secure voltage operation for enhanced safety and reliability
  • Manual and automatic regulation with comprehensive protection against over voltage, over current, water shortage, phase failure, and overheating
  • No open flame, noise, or pollution - environmentally friendly and fire-safe
  • Recommended for brazing, welding, forging, hot cooperation, melting, quenching, and annealing
Advanced Features
Utilizes advanced electrical components and innovative techniques for rapid, localized metal heating. Capable of penetrating non-metal materials to heat metals until fusion without direct contact, providing safe, economical, and pollution-free technical solutions.
Product Advantages
  • Portable design: Integrated construction saves over 80% space and 75% weight compared to traditional transformers
  • Monolithic shell design with resistance to weak acids and alkalis
  • Amorphous magnetic core material for wider frequency range and superior heating of complex, irregular shaped workpieces
  • Efficient heating with 8-second warm-up time, ideal for air conditioning and refrigerator industry copper pipe welding
  • Stable magnetic field output ensures consistent long-term heating performance
Technical Parameters
Model YY-15A (Single phase)
Work Power 180V-250V
Input Current 35A
Output Power 15KVA
Frequency 30-100KHZ
Output Current 200-600A
Cooling Water Flow 0.06-0.12Mpa 7.5L/Min
Water Temperature Protection 40°C
Product Size 570x230x450mm
Net Weight 27.5kg
Applications
  • Brazing: Copper and brass, tungsten steel and stainless steel, iron and copper, aluminum and copper
  • Glasses welding, fishing tool welding, hardware appliances welding
  • Carbide saw and saw-tooth welding, carbide blade welding
  • Jewelry and watches welding
  • Electronic industry: Motor rotor hot-cooperate, electrode silver and tin soldering
  • Metal implants, bulbs fight electrode
  • Band accessory soldering, golf head, pipe welding
  • Communication equipment soldering, copper coaxial cable connector soldering
Handheld Heater Machine Quenching Welding Equipment Forging Soldering High Frequency Induction Heating Machine 0 Handheld Heater Machine Quenching Welding Equipment Forging Soldering High Frequency Induction Heating Machine 1
