Name: Handheld Induction Heating Equipment Copper Tube Welding High Frequency Heating Machine
Brand: DONGGUAN YUYANG INSTRUMENT CO., LTD
SKU: YYM-25AB
Price: 2000 USD
Availability: InStock

Home > Products > Electrical Test Set >

Handheld Induction Heating Equipment Copper Tube Welding High Frequency Heating Machine

handheld induction heating machine

copper tube welding equipment

high frequency heating machine

Place of Origin:

China

Brand Name:

YUYANG

Certification:

Model Number:

YYM-25AB

Request A Quote

Product Details

Max Fluctuating Power:

25KW

Work Power:

340v-430v

Maximum Input Current:

42A

Output Power:

25kw

Fluctuating Frequency:

1-20khz

Output Current:

200-1800A

The Flow Rate Of Cooling Water:

0.08-0.16Mpa 9L/Min

Water Temperature Protection Point:

50C

Product Size:

640x280x550 Mm

Net Weight :

37.5 Kg

Highlight:

handheld induction heating machine

copper tube welding equipment

high frequency heating machine

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

$2000

Packaging Details

Plywood Box

Delivery Time

5-10 work days

Payment Terms

T/T, L/C, Western Union

Supply Ability

200 sets per month

High Frequency Electromagnetic Induction Heating Generator for Steel Bar in Metal & Metallurgy Machinery

Get Best Price

Video

Mini Automatic Plastic Glass Jar Sealing Machine Handheld Aluminum Foil Heat Hot Induction Packaging with Cap Lid 220v

Get Best Price

Video

15KW High Frequency Induction Heating Machine New Metal Copper Pipe Wire Welding Manufacturing Plants Construction Motor Engine

Get Best Price

Video

20-100mm Aluminum Foil Lid Plastic Jar Sealing Heat Machine Handheld Induction Bottle Foil Sealer Metal Metallurgy Machinery

Get Best Price

8613265296009

sales13@yuyangtest.com

86-769-26622869

Contact Now

Product Description

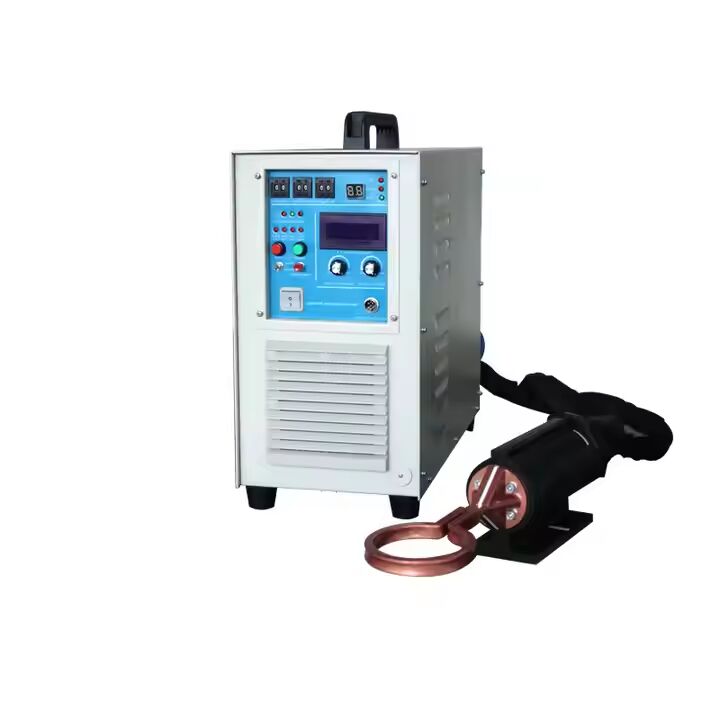

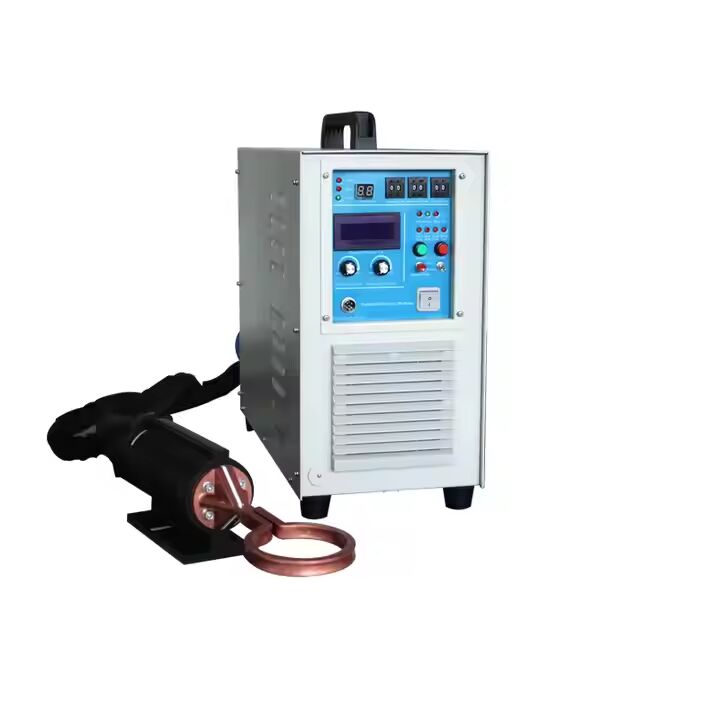

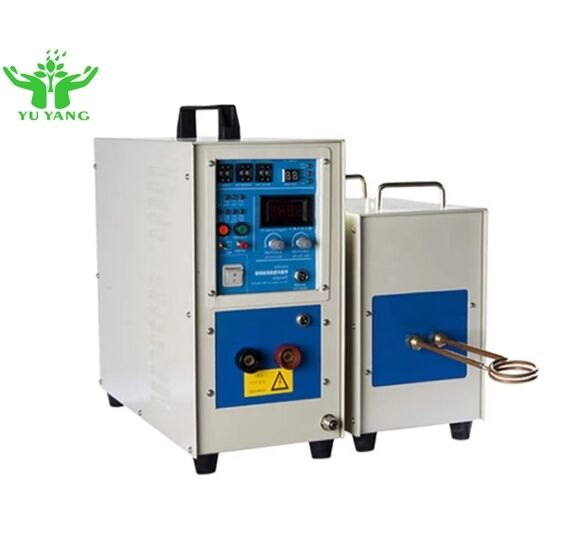

Handheld Induction Heating Equipment

High Frequency Induction Heating Machine for Copper Tube Welding and Industrial Heating Applications

Key Characteristics

IGBT inverting device with automatic frequency tracking
High frequency heating with rapid operation - consumes only 20-30% of power compared to electronic tube induction machines
Safe and reliable operation with secure voltage protection
Manual and automatic regulation with comprehensive protection against over voltage, over current, water shortage, phase failure, and overheating
Environmentally friendly operation - no open flame, noise, or pollution
Recommended for brazing, welding, forging, hot cooperation, melting, quenching, and annealing applications

Advanced Features

Utilizes advanced electronic components and innovative techniques for rapid, localized metal heating. Capable of penetrating non-metal materials to heat metals to fusion temperatures without direct contact, providing safe, economical, and pollution-free technical solutions.

Product Advantages

Portable Design: Integrated construction saves over 80% space and 75% weight compared to traditional transformers, providing exceptional flexibility with monolithic shell design resistant to weak acids and alkalis
Complex Metal Heating: Hand-held head with amorphous magnetic core material offers wider frequency range for irregular shaped workpieces with superior heating effects
Efficient Operation: Rapid heating within 8 seconds, ideal for air conditioning and refrigerator industry copper pipe welding, with stable magnetic field output ensuring consistent long-term performance

Technical Specifications

Model	YYM-25AB (Three phase)
Work Power	340v-430v
Maximum Input Current	42A
Output Power	25kw
Fluctuating Frequency	1-20khz
Output Current	200-1800A
Cooling Water Flow Rate & Pressure	0.08-0.16Mpa 9L/Min
Water Temperature Protection Point	50°C
Product Dimensions	Main Unit: 640x280x550 mm Transformer: 510x260x410 mm
Net Weight	Main Unit: 37.5 kg Transformer: 32.5 kg

Application Areas

Brazing materials: copper and brass, tungsten steel and stainless steel, iron and copper, aluminum and copper, and other metal brazing
Glasses welding, fishing tool welding, hardware appliances welding
Carbide saw and saw-tooth welding, carbide blade welding
Jewelry and watches welding
Electronic industry: motor rotor hot-cooperation, electrode silver soldering and tin soldering
Metal implants, bulbs fight electrode
Band accessory soldering, golf head, pipe welding
Communication equipment soldering, copper coaxial cable connector soldering

Frequently Asked Questions

Company Background: Based in Guangdong, China since 2018, serving global markets including South Asia, Eastern Asia, Domestic Market, Southeast Asia, Eastern Europe, North America, Oceania, and Western Europe
Quality Assurance: Pre-production samples before mass production and final inspection before shipment ensure consistent quality
Product Range: Specialized in Fire Testing Equipment, Environmental Test Chambers, Textile Testing Equipment, Toys Testing Equipment, and Wire and Cable Test Machines
Competitive Advantage: High-tech enterprise focused on developing and manufacturing specialized testing equipment with comprehensive technical expertise
Service Support: Accepts FOB, CFR, CIF, EXW delivery terms; multiple payment currencies and methods including T/T, L/C, D/P D/A, Credit Card, Western Union, Cash; English and Chinese language support
