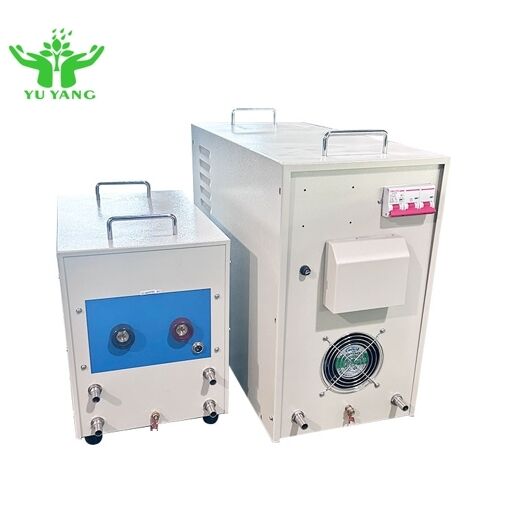

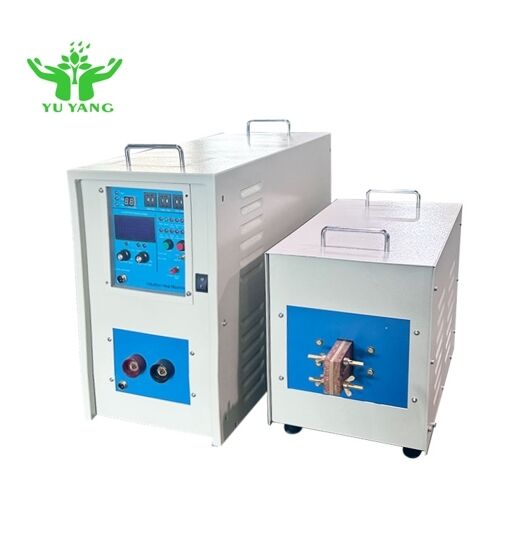

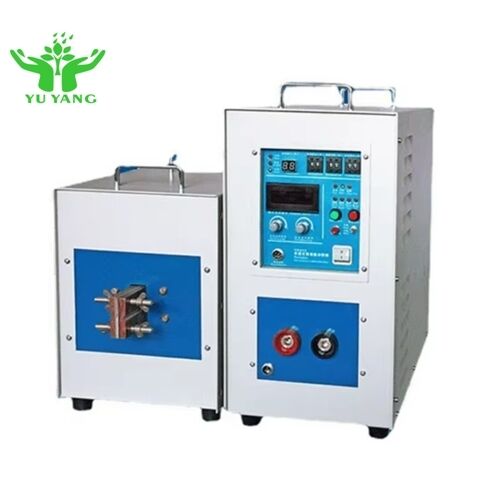

High Frequency Heating Machine Gear Quenching Melting Welding Heat Treatment High Frequency Induction Heating Machine

High Frequency Heating Machine Gear Quenching Melting Welding Heat Treatment High Frequency Induction Heating Machine

high frequency induction heating machine

gear quenching heat treatment machine

welding heat treatment equipment

Place of Origin:

China

Brand Name:

YUYANG

Certification:

CE

Model Number:

YY-25AB

Contact Us
Request A Quote
High Frequency Heating Machine Gear Quenching Melting Welding Heat Treatment High Frequency Induction Heating Machine
High Frequency Heating Machine Gear Quenching Melting Welding Heat Treatment High Frequency Induction Heating Machine High Frequency Heating Machine Gear Quenching Melting Welding Heat Treatment High Frequency Induction Heating Machine High Frequency Heating Machine Gear Quenching Melting Welding Heat Treatment High Frequency Induction Heating Machine
Product Details
Max Fluctuating Power:
25KW
Work Power:
340V-430V
Input Current:
25A
Fluctuating Output Power:
25KW
Fluctuating Frequency:
30-80KHZ
Output Current:
200-1200A
The Flow Rate Of Cooling Water:
0.06-0.12Mpa 7.5L/Min
Water Temperature Protection Point:
40C
Product Size:
550x225x480mm
Net Weight:
21.5 Kg
Highlight:

high frequency induction heating machine

,

gear quenching heat treatment machine

,

welding heat treatment equipment

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
$2000
Packaging Details
Plywood Box
Delivery Time
5-10 work days
Payment Terms
T/T, L/C, Western Union
Supply Ability
200 sets per month
RELATED PRODUCTS
Good price High Frequency Electromagnetic Induction Heating Generator for Steel Bar in Metal & Metallurgy Machinery online Video

High Frequency Electromagnetic Induction Heating Generator for Steel Bar in Metal & Metallurgy Machinery

Get Best Price
Good price Mini Automatic Plastic Glass Jar Sealing Machine Handheld Aluminum Foil Heat Hot Induction Packaging with Cap Lid 220v online Video

Mini Automatic Plastic Glass Jar Sealing Machine Handheld Aluminum Foil Heat Hot Induction Packaging with Cap Lid 220v

Get Best Price
Good price 15KW High Frequency Induction Heating Machine New Metal Copper Pipe Wire Welding Manufacturing Plants Construction Motor Engine online Video

15KW High Frequency Induction Heating Machine New Metal Copper Pipe Wire Welding Manufacturing Plants Construction Motor Engine

Get Best Price
Good price 20-100mm Aluminum Foil Lid Plastic Jar Sealing Heat Machine Handheld Induction Bottle Foil Sealer Metal Metallurgy Machinery online Video

20-100mm Aluminum Foil Lid Plastic Jar Sealing Heat Machine Handheld Induction Bottle Foil Sealer Metal Metallurgy Machinery

Get Best Price
Contact Us
8613265296009
sales13@yuyangtest.com
86-769-26622869
Contact Now
Product Description
High Frequency Induction Heating Machine
Advanced industrial heating equipment for gear quenching, melting, welding, and heat treatment applications with high efficiency and environmental compliance.
Key Characteristics
  • IGBT inverting device with automatic frequency tracking
  • High-frequency operation with 70-80% energy savings compared to electronic tube induction heating
  • Secure voltage operation with comprehensive safety features
  • Manual and automatic regulation with over-voltage, over-current, water deficiency, phase failure, and overheating protection
  • No open flame, noise, or pollution - environmentally compliant and fire-safe
  • Recommended for brazing, welding, forging, hot cooperation, melting, quenching, and annealing
Technical Features
Utilizes advanced electrical components and innovative techniques for rapid, localized metal heating. Capable of penetrating non-metal materials to heat metals to fusion point without direct contact, providing safe, economical, and pollution-free technical solutions.
Operational Advantages
  • Portable design: 80% space savings and 75% weight reduction compared to traditional transformers
  • Monolithic shell design with resistance to weak acids and alkalis
  • Amorphous magnetic core material for wider frequency range and superior heating of complex, irregular workpieces
  • Efficient heating with 8-second warm-up, ideal for air conditioning and refrigerator industry copper pipe welding
  • Stable magnetic field output ensures consistent long-term heating performance
Technical Specifications
ModelYY-25AB (Three phase)
Work Power340V-430V
Input Current25A
Output Power25KW
Frequency Range30-80KHZ
Output Current200-1200A
Cooling Water Flow0.06-0.12Mpa 7.5L/Min
Water Temperature Protection40°C
Main Unit Dimensions550×225×480mm
Transformer Dimensions350×215×380mm
Main Unit Weight21.5 kg
Transformer Weight17 kg
Industrial Applications
  • Brazing: copper-brass, tungsten steel-stainless steel, iron-copper, aluminum-copper, and other metal combinations
  • Glasses welding, fishing tool welding, hardware appliances welding
  • Carbide saw and saw-tooth welding, carbide blade welding
  • Jewelry and watch manufacturing welding
  • Electronic industry: motor rotor hot-cooperation, electrode silver and tin soldering
  • Metal implants, bulb electrode manufacturing
  • Band accessory soldering, golf head production, pipe welding
  • Communication equipment soldering, copper coaxial cable connector soldering
