Portable Handheld 10kw Induction Heating Machine for Copper Tube Welding

Portable Handheld 10kw Induction Heating Machine for Copper Tube Welding

10kw portable induction heating machine

handheld copper tube welding machine

induction heating machine with warranty

Place of Origin:

China

Brand Name:

YUYANG

Certification:

CE

Model Number:

YY-30AB

Contact Us
Request A Quote
Portable Handheld 10kw Induction Heating Machine for Copper Tube Welding
Portable Handheld 10kw Induction Heating Machine for Copper Tube Welding Portable Handheld 10kw Induction Heating Machine for Copper Tube Welding Portable Handheld 10kw Induction Heating Machine for Copper Tube Welding
Product Details
Max Fluctuating Power:
30KW
Work Power:
340V-430V
Input Current:
31A
Fluctuating Output Power:
30KVA
Fluctuating Frequency:
30-80KHZ
Output Current:
300-1500A
The Flow Rate Of Cooling Water:
0.08-0.16Mpa 7.6L/Min
Water Temperature Protection Point:
40C
Product Size:
640x260x520 Mm
Net Weight:
26.5 Kg
Highlight:

10kw portable induction heating machine

,

handheld copper tube welding machine

,

induction heating machine with warranty

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
$2000
Packaging Details
Plywood Box
Delivery Time
5-10 work days
Payment Terms
T/T, L/C, Western Union
Supply Ability
200 sets per month
RELATED PRODUCTS
Good price High Frequency Electromagnetic Induction Heating Generator for Steel Bar in Metal & Metallurgy Machinery online Video

High Frequency Electromagnetic Induction Heating Generator for Steel Bar in Metal & Metallurgy Machinery

Get Best Price
Good price Mini Automatic Plastic Glass Jar Sealing Machine Handheld Aluminum Foil Heat Hot Induction Packaging with Cap Lid 220v online Video

Mini Automatic Plastic Glass Jar Sealing Machine Handheld Aluminum Foil Heat Hot Induction Packaging with Cap Lid 220v

Get Best Price
Good price 15KW High Frequency Induction Heating Machine New Metal Copper Pipe Wire Welding Manufacturing Plants Construction Motor Engine online Video

15KW High Frequency Induction Heating Machine New Metal Copper Pipe Wire Welding Manufacturing Plants Construction Motor Engine

Get Best Price
Good price 20-100mm Aluminum Foil Lid Plastic Jar Sealing Heat Machine Handheld Induction Bottle Foil Sealer Metal Metallurgy Machinery online Video

20-100mm Aluminum Foil Lid Plastic Jar Sealing Heat Machine Handheld Induction Bottle Foil Sealer Metal Metallurgy Machinery

Get Best Price
Contact Us
8613265296009
sales13@yuyangtest.com
86-769-26622869
Contact Now
Product Description

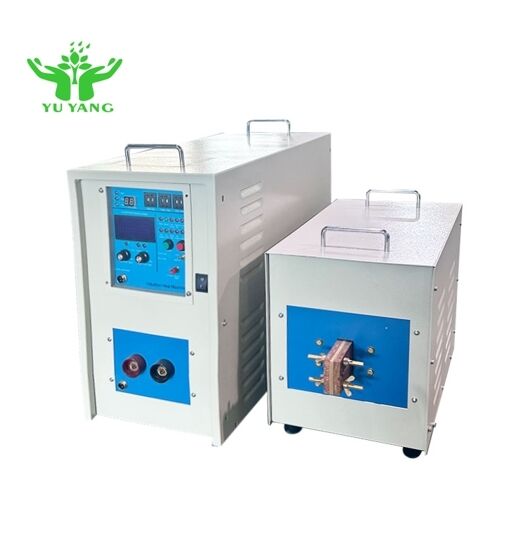

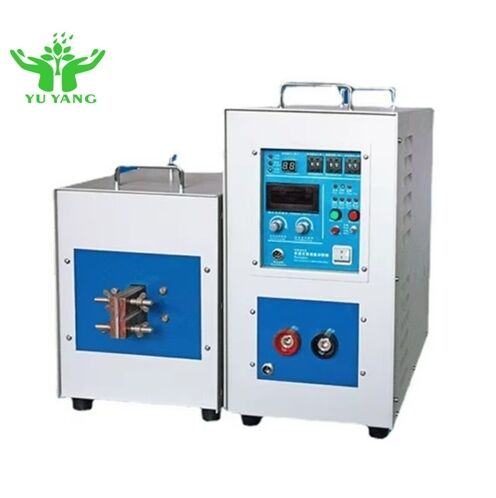

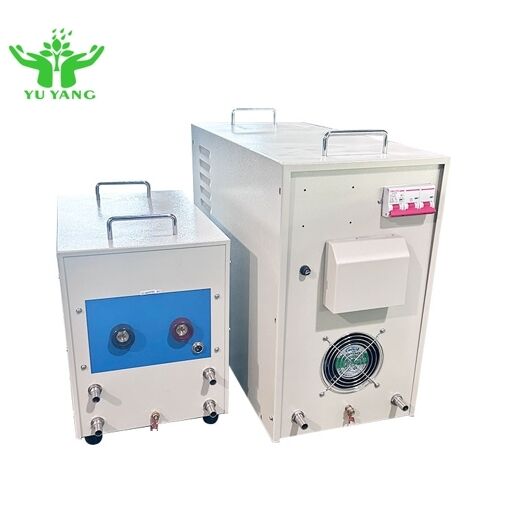

Portable Handheld 10kw Induction Heating Machine for Copper Tube Welding
Product Overview
This portable handheld 10kw induction heating machine is specifically designed for copper tube welding applications, offering advanced heating technology with exceptional efficiency and safety features.
Key Characteristics
  • IGBT inverting device with automatic frequency tracking
  • High-frequency heating with rapid operation and low power consumption (20-30% of traditional electronic tube machines)
  • Secure voltage operation for enhanced safety
  • Manual and automatic regulation with comprehensive protection against over voltage, over current, water shortage, phase failure, and overheating
  • No open flame, noise, or pollution - environmentally friendly and fire-safe
  • Recommended for brazing, welding, forging, hot cooperation, melting, quenching, and annealing
Advanced Features
Utilizing the most advanced electrical components and unique high-tech techniques, this induction heating machine provides rapid, localized metal heating. It can penetrate non-metal materials to heat metals until fusion occurs without direct contact, solving technical challenges safely and economically without pollution.
Product Advantages
  • Portable design: Integrated construction saves over 80% space and 75% weight compared to traditional transformers
  • Enhanced flexibility: Monolithic shell design with no exposed metal, resistant to weak acids and alkalis
  • Complex metal heating: Hand-held head with amorphous magnetic core material for wider frequency range and superior heating of irregular shaped workpieces
  • Efficient operation: 8-second heating speed, ideal for copper pipe welding in air conditioning and refrigerator industries
  • Stable magnetic field output ensures consistent long-term heating performance
Technical Parameters
ModelYY-30AB (Three phase)
Work Power340V-430V
Input Current31A
Fluctuating Output Power30KVA
Fluctuating Frequency30-80KHZ
Output Current300-1500A
Cooling Water Flow Rate0.08-0.16Mpa 7.6L/Min
Water Temperature Protection40°C
Main Unit Dimensions640x260x520 mm
Transformer Dimensions440x260x410 mm
Main Unit Net Weight26.5 kg
Transformer Net Weight20.5 kg
Applications
  • Brazing materials: Copper and brass, tungsten steel and stainless steel, iron and copper, aluminum and copper, and other metal brazing
  • Glasses welding, fishing tool welding, hardware appliances welding
  • Carbide saw and saw-tooth welding, carbide blade welding
  • Jewelry and watches welding
  • Electronic industry: Motor rotor hot-cooperation, electrode silver soldering and tin soldering
  • Metal implants, bulbs fight electrode
  • Band accessory soldering, golf head, pipe welding
  • Communication equipment soldering, copper coaxial cable connector soldering
Portable Handheld 10kw Induction Heating Machine for Copper Tube Welding 0 Portable Handheld 10kw Induction Heating Machine for Copper Tube Welding 1
Company Information
Based in Guangdong, China since 2018, we serve global markets including South Asia, Eastern Asia, Domestic Market, Southeast Asia, Eastern Europe, North America, Oceania, and Western Europe.
Quality Assurance
  • Pre-production samples before mass production
  • Final inspection before shipment
Product Range
Fire Testing Equipment, Environmental Test Chambers, Textile Testing Equipment, Toys Testing Equipment, Wire and Cable Test Machines
Why Choose Us
We are a high-tech enterprise specializing in developing and manufacturing fire testing equipment, building material fire testers, wire and cable fire testers, environmental test chambers, textile testing equipment, and toys testing equipment.
Services Provided
  • Delivery Terms: FOB, CFR, CIF, EXW
  • Payment Currency: USD, EUR, JPY, AUD, HKD, GBP, CNY
  • Payment Methods: T/T, L/C, D/P D/A, Credit Card, Western Union, Cash
  • Languages: English, Chinese
