Name: Utrahigh Frequency Induction Heating Machine (MOSFET Control)
Brand: DONGGUAN YUYANG INSTRUMENT CO., LTD
SKU: YY-40AB
Price: 2000 USD
Availability: InStock

Home > Products > Electrical Test Set >

Utrahigh Frequency Induction Heating Machine (MOSFET Control)

MOSFET control induction heating machine

Ultrahigh frequency heating equipment

Electrical test set induction heater

Place of Origin:

China

Brand Name:

YUYANG

Certification:

Model Number:

YY-40AB

Request A Quote

Product Details

Max Fluctuating Power:

40KW

Work Power:

340V-430V

Max Input Current:

41A

Fluctuating Output Power:

40KVA

Fluctuating Frequency:

30-80KHZ

Output Current:

200-1800A

The Flow Rate Of Cooling Water:

0.08-0.16Mpa 7.6L/Min

Water Temperature Protection Point:

40C

Product Size:

620x250x530mm

Net Weight:

34.5kg

Highlight:

MOSFET control induction heating machine

Ultrahigh frequency heating equipment

Electrical test set induction heater

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

$2000

Packaging Details

Plywood Box

Delivery Time

5-10 work days

Payment Terms

T/T, L/C, Western Union

Supply Ability

200 sets per month

High Frequency Electromagnetic Induction Heating Generator for Steel Bar in Metal & Metallurgy Machinery

Get Best Price

Video

Mini Automatic Plastic Glass Jar Sealing Machine Handheld Aluminum Foil Heat Hot Induction Packaging with Cap Lid 220v

Get Best Price

Video

15KW High Frequency Induction Heating Machine New Metal Copper Pipe Wire Welding Manufacturing Plants Construction Motor Engine

Get Best Price

Video

20-100mm Aluminum Foil Lid Plastic Jar Sealing Heat Machine Handheld Induction Bottle Foil Sealer Metal Metallurgy Machinery

Get Best Price

8613265296009

sales13@yuyangtest.com

86-769-26622869

Contact Now

Product Description

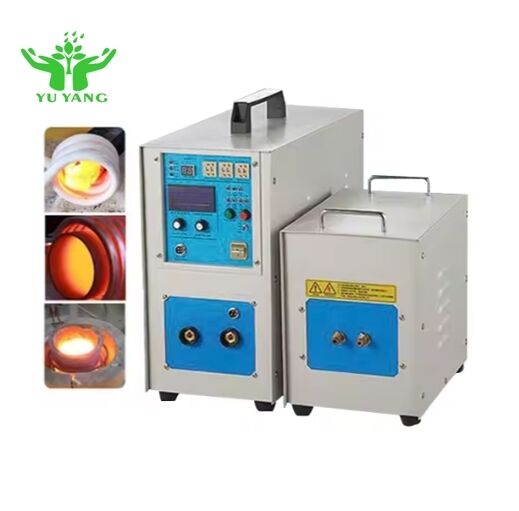

Ultrahigh Frequency Induction Heating Machine (MOSFET Control)

Advanced induction heating system featuring MOSFET control technology for efficient, precise metal heating applications.

Key Characteristics

IGBT inverting device with automatic frequency tracking
High-frequency operation with rapid heating and 20-30% lower power consumption compared to electronic tube systems
Secure voltage operation for enhanced safety and reliability
Manual and automatic regulation with comprehensive protection against over voltage, over current, water shortage, phase failure, and overheating
No open flame, noise, or pollution - environmentally friendly and fire-safe operation
Ideal for brazing, welding, forging, hot cooperation, melting, quenching, and annealing applications

Advanced Features

Utilizes state-of-the-art electrical components and innovative techniques for rapid, localized metal heating. Capable of penetrating non-metal materials to heat metals to fusion temperatures without direct contact, providing safe, economical, and pollution-free technical solutions.

Product Advantages

Portable design: 80% space savings and 75% weight reduction compared to traditional transformers
Monolithic shell design with resistance to weak acids and alkalis
Advanced amorphous magnetic core material for complex metallic heating applications
Wide frequency range suitable for irregular shaped workpieces
Efficient heating with 8-second warm-up time
Stable magnetic field output for consistent long-term performance
Ideal for air conditioning, refrigeration, and complex welding applications

Technical Parameters

Model	YY-40AB (Three phase)
Work Power	340V-430V
Max Input Current	41A
Fluctuating Output Power	40KVA
Fluctuating Frequency	30-80KHZ
Output Current	200-1800A
Cooling Water Flow Rate	0.08-0.16Mpa 7.6L/Min
Water Temperature Protection	40°C

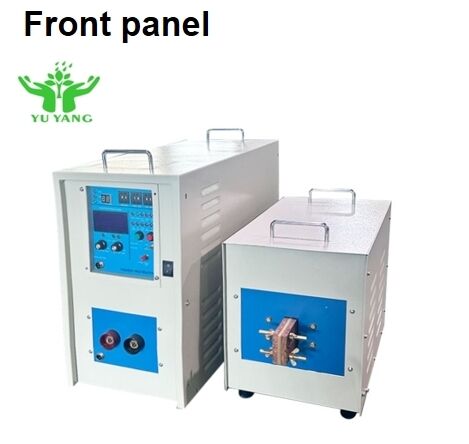

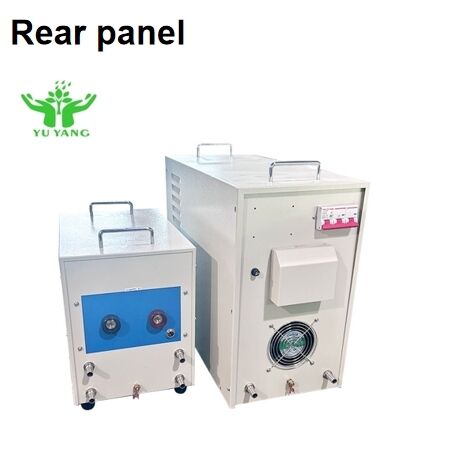

Main Unit Dimensions	620x250x530mm
Transformer Dimensions	480x260x410mm
Main Unit Net Weight	34.5kg
Transformer Net Weight	31.5kg

Application Areas

Brazing: copper and brass, tungsten steel and stainless steel, iron and copper, aluminum and copper
Glasses welding, fishing tool welding, hardware appliances welding
Carbide saw and saw-tooth welding, carbide blade welding
Jewelry and watches welding
Electronic industry: motor rotor hot-cooperate, electrode silver and tin soldering
Metal implants, bulbs fight electrode
Band accessory soldering, golf head, pipe welding
Communication equipment soldering, copper coaxial cable connector soldering

Frequently Asked Questions

Company Background: Based in Guangdong, China since 2018, serving global markets including South Asia, Eastern Asia, Domestic Market, Southeast Asia, Eastern Europe, North America, Oceania, and Western Europe.
Quality Assurance: Pre-production samples and final inspection before shipment ensure consistent product quality.
Product Range: Specialized in Fire Testing Equipment, Environmental Test Chambers, Textile Testing Equipment, Toys Testing Equipment, and Wire and Cable Test Machines.
Competitive Advantage: High-tech enterprise with expertise in developing and manufacturing comprehensive testing equipment solutions.
Service Support: Multiple delivery terms (FOB, CFR, CIF, EXW), payment options (T/T, L/C, D/P D/A, Credit Card, Western Union, Cash), and language support in English and Chinese.
