Hot Sales High Frequency 1kg Gold Induction Melting Machine(yy-15kw)

Hot Sales High Frequency 1kg Gold Induction Melting Machine(yy-15kw)

1kg gold induction melting machine

high frequency gold melting machine

15kw induction melting machine

Place of Origin:

China

Brand Name:

YUYANG

Certification:

CE

Model Number:

YY-60AB

Contact Us
Request A Quote
Hot Sales High Frequency 1kg Gold Induction Melting Machine(yy-15kw)
Hot Sales High Frequency 1kg Gold Induction Melting Machine(yy-15kw) Hot Sales High Frequency 1kg Gold Induction Melting Machine(yy-15kw) Hot Sales High Frequency 1kg Gold Induction Melting Machine(yy-15kw)
Product Details
Max Fluctuating Power:
60KW
Work Power:
380V
Max Input Current:
60A
Fluctuating Output Power:
60KW
Fluctuating Frequency:
30-80KHZ
Output Current:
400-2400A
The Flow Rate Of Cooling Water:
0.08-0.16Mpa 7.6L/Min
Water Temperature Protection Point:
40C
Product Size:
640x280x550 Mm
Net Weight:
37.5 Kg
Highlight:

1kg gold induction melting machine

,

high frequency gold melting machine

,

15kw induction melting machine

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
$2000
Packaging Details
Plywood Box
Delivery Time
5-10 work days
Payment Terms
T/T, L/C, Western Union
Supply Ability
200 sets per month
RELATED PRODUCTS
Good price High Frequency Electromagnetic Induction Heating Generator for Steel Bar in Metal & Metallurgy Machinery online Video

High Frequency Electromagnetic Induction Heating Generator for Steel Bar in Metal & Metallurgy Machinery

Get Best Price
Good price Mini Automatic Plastic Glass Jar Sealing Machine Handheld Aluminum Foil Heat Hot Induction Packaging with Cap Lid 220v online Video

Mini Automatic Plastic Glass Jar Sealing Machine Handheld Aluminum Foil Heat Hot Induction Packaging with Cap Lid 220v

Get Best Price
Good price 15KW High Frequency Induction Heating Machine New Metal Copper Pipe Wire Welding Manufacturing Plants Construction Motor Engine online Video

15KW High Frequency Induction Heating Machine New Metal Copper Pipe Wire Welding Manufacturing Plants Construction Motor Engine

Get Best Price
Good price 20-100mm Aluminum Foil Lid Plastic Jar Sealing Heat Machine Handheld Induction Bottle Foil Sealer Metal Metallurgy Machinery online Video

20-100mm Aluminum Foil Lid Plastic Jar Sealing Heat Machine Handheld Induction Bottle Foil Sealer Metal Metallurgy Machinery

Get Best Price
Contact Us
8613265296009
sales13@yuyangtest.com
86-769-26622869
Contact Now
Product Description

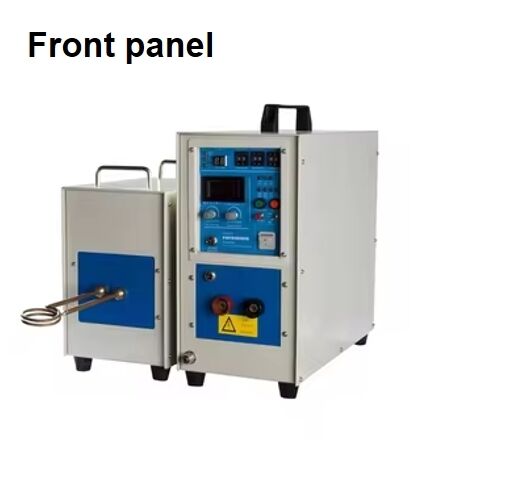

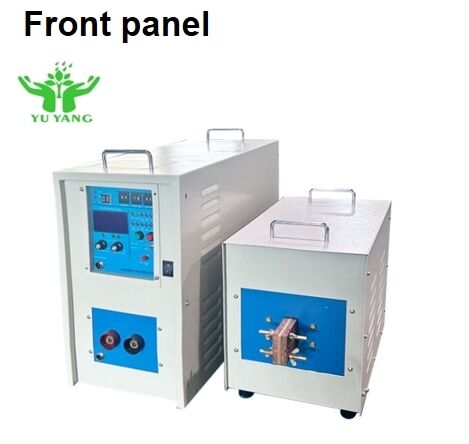

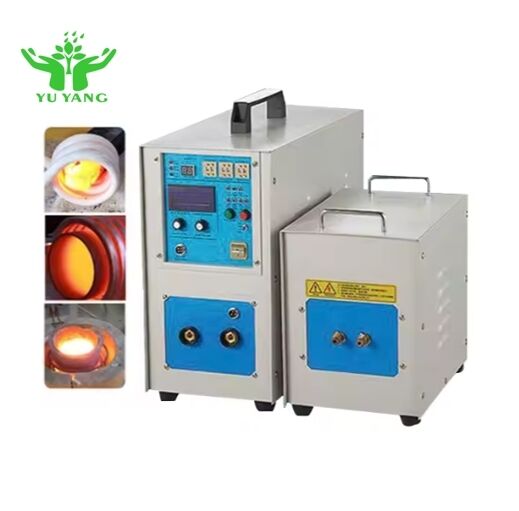

High Frequency 1kg Gold Induction Melting Machine (YY-15KW)
Professional induction heating equipment designed for efficient metal melting and processing applications.
Key Characteristics
  • Advanced IGBT inverting device with automatic frequency tracking
  • High-frequency operation for rapid heating with 20-30% lower power consumption than traditional electronic tube machines
  • Secure voltage operation with comprehensive safety features
  • Manual and automatic regulation with protection against over voltage, over current, water shortage, phase failure, and overheating
  • Environmentally friendly operation with no open flame, noise, or pollution
  • Recommended for brazing, welding, forging, hot cooperation, melting, quenching, and annealing applications
Advanced Features
Utilizes state-of-the-art electrical components and innovative techniques for rapid, localized metal heating. Capable of penetrating non-metal materials to heat metals until fusion without direct contact, providing safe, economical, and pollution-free technical solutions.
Equipment Advantages
  • Portable design: 80% space savings and 75% weight reduction compared to traditional transformers
  • Monolithic shell design with resistance to weak acids and alkalis
  • Advanced amorphous magnetic core material for complex metallic heating applications
  • Wide frequency range suitable for irregular shaped workpieces
  • Efficient heating with 8-second warm-up time
  • Stable magnetic field output for consistent long-term performance
  • Ideal for air conditioning, refrigeration, and complex welding applications
Technical Specifications
Model YY-60AB (Three Phase)
Work Power Three Phase 380V
Max Input Current 60A
Output Power 60KW
Frequency Range 30-80KHZ
Output Current 400-2400A
Cooling Water Flow Rate 0.08-0.16Mpa 7.6L/Min
Water Temperature Protection 40°C
Main Unit Dimensions 640×280×550 mm
Transformer Dimensions 510×260×410 mm
Main Unit Net Weight 37.5 kg
Transformer Net Weight 32.5 kg
Application Areas
  • Brazing: Copper, brass, tungsten steel, stainless steel, iron, aluminum, and other metal combinations
  • Glasses welding, fishing tool welding, hardware appliances welding
  • Carbide saw and saw-tooth welding, carbide blade welding
  • Jewelry and watch manufacturing welding
  • Electronic industry: Motor rotor hot-cooperation, electrode silver and tin soldering
  • Metal implants, bulb electrode manufacturing
  • Band accessory soldering, golf head manufacturing, pipe welding
  • Communication equipment soldering, copper coaxial cable connector soldering
Hot Sales High Frequency 1kg Gold Induction Melting Machine(yy-15kw) 0 Hot Sales High Frequency 1kg Gold Induction Melting Machine(yy-15kw) 1
