Name: Induction Heating Machine Steel Billet Rod Heater
Brand: DONGGUAN YUYANG INSTRUMENT CO., LTD
SKU: YYSQ-TC-60AB (Three phase)
Price: 2000 USD
Availability: InStock

Home > Products > Electrical Test Set >

Induction Heating Machine Steel Billet Rod Heater

induction heating machine for steel billets

steel rod heater induction machine

electrical test set billet heater

Place of Origin:

China

Brand Name:

YUYANG

Certification:

Model Number:

YYSQ-TC-60AB (Three phase)

Request A Quote

Product Details

Work Power:

340V-430V

Maximum Input Current:

90A

Output Power:

60KW

Fluctuating Frequency:

5-20khz

The Flow Rate Of Cooling Water:

0.08-0.16Mpa 12L/Min

Water Temperature Protection Point:

50C

Product Size:

Main : 808*530*1260MM Multiple Connect Transformer : 620*520*630MM

Net Weight :

Main : 102kg Multiple Connect Transformer : 91kg

Output Current:

400-4500A

Highlight:

induction heating machine for steel billets

steel rod heater induction machine

electrical test set billet heater

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

$2000

Packaging Details

Plywood Box

Delivery Time

5-10 work days

Payment Terms

T/T, L/C, Western Union

Supply Ability

200 sets per month

High Frequency Electromagnetic Induction Heating Generator for Steel Bar in Metal & Metallurgy Machinery

Get Best Price

Video

Mini Automatic Plastic Glass Jar Sealing Machine Handheld Aluminum Foil Heat Hot Induction Packaging with Cap Lid 220v

Get Best Price

Video

15KW High Frequency Induction Heating Machine New Metal Copper Pipe Wire Welding Manufacturing Plants Construction Motor Engine

Get Best Price

Video

20-100mm Aluminum Foil Lid Plastic Jar Sealing Heat Machine Handheld Induction Bottle Foil Sealer Metal Metallurgy Machinery

Get Best Price

8613825729462

sales03@yuyangtest.com

86-769-26622869

Contact Now

Product Description

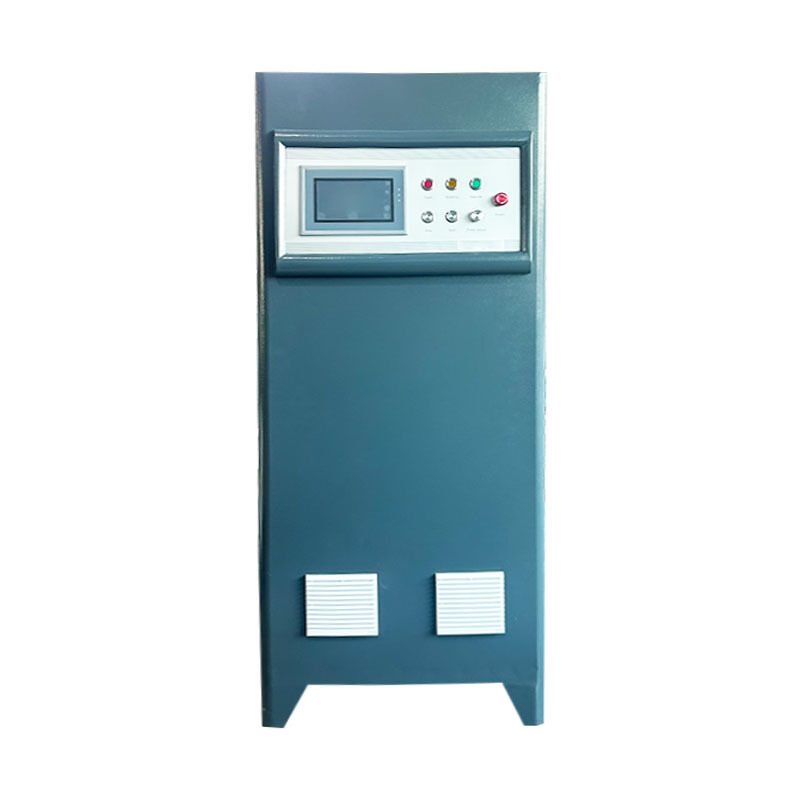

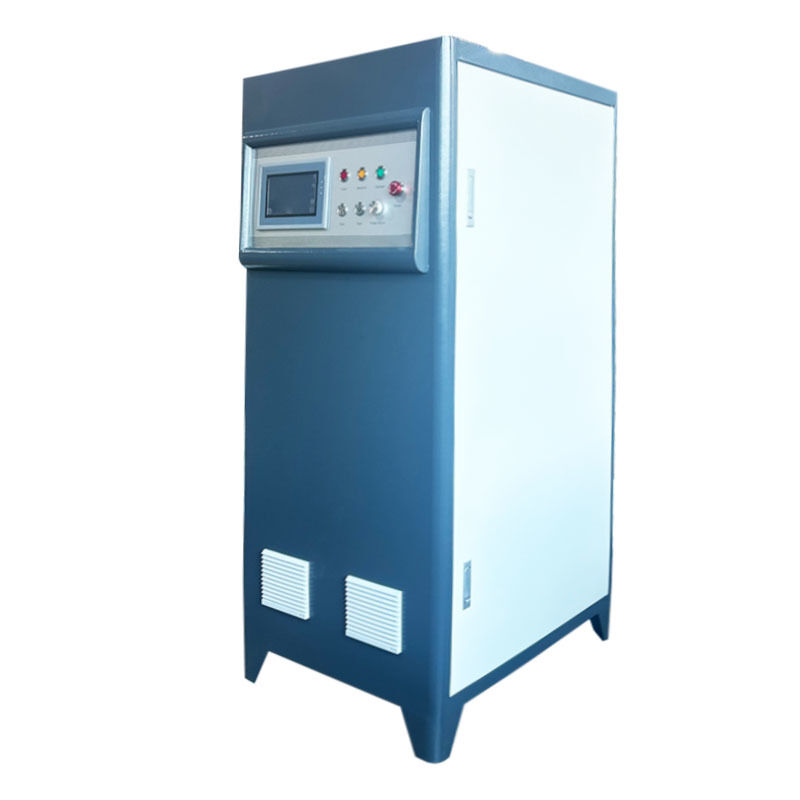

Induction Heating Machine Steel Billet Rod Heater

This high-frequency induction heating machine is designed for efficient metal heating applications, featuring advanced IGBT inverting technology and automatic frequency tracking for optimal performance.

Key Characteristics

Advanced IGBT inverting device with automatic frequency tracking
High-frequency operation for rapid heating with 20-30% lower power consumption compared to electronic tube induction heaters
Secure voltage operation with comprehensive safety features
Manual and automatic regulation with protection against over voltage, over current, water shortage, phase failure, and overheating
Environmentally friendly operation with no open flame, noise, or pollution
Ideal for brazing, welding, forging, hot cooperation, melting, quenching, and annealing applications

Advanced Features

Utilizing premium electrical components and innovative techniques, this induction heating machine provides rapid, localized metal heating. It can penetrate non-metal materials to heat metals to fusion temperatures without direct contact, offering safe, economical, and pollution-free technical solutions.

Product Advantages

Portable design: Integrated construction saves over 80% space and 75% weight compared to traditional transformers
Versatile metal heating: Hand-held machine head with amorphous magnetic core material accommodates complex, irregular-shaped workpieces
Efficient operation: Rapid heating within 8 seconds with stable magnetic field output for consistent performance
Intelligent operation with air conditioning compatibility for reliable welding in HVAC and refrigeration applications

Technical Specifications

Parameter	Specification
Model	YYSQ-TC-60AB (Three phase)
Work Power	340V-430V
Maximum Input Current	90A
Output Power	60KW
Fluctuating Frequency	5-20KHZ
Output Current	400-4500A
Cooling Water Flow Rate	0.08-0.16Mpa 12L/Min
Water Temperature Protection	50°C
Main Unit Dimensions	808×530×1260mm
Transformer Dimensions	620×520×630mm
Main Unit Net Weight	102kg
Transformer Net Weight	91kg

Application Areas

Brazing materials: Copper and brass, tungsten steel and stainless steel, iron and copper, aluminum and copper brazing
Glasses welding, fishing tool welding, hardware appliances welding
Carbide saw and saw-tooth welding, carbide blade welding
Jewelry and watches welding
Electronic industry: Motor rotor hot-cooperation, electrode silver and tin soldering
Metal implants, bulbs fight electrode applications
Band accessory soldering, golf head manufacturing, pipe welding
Communication equipment soldering, copper coaxial cable connector soldering

Frequently Asked Questions

Who are we?

Based in Guangdong, China, established in 2018, we serve global markets including South Asia (20%), Eastern Asia (20%), Domestic Market (15%), Southeast Asia (15%), Eastern Europe (10%), North America (10%), Oceania (5%), and Western Europe (5%). Our team consists of 11-50 professionals.

How do we guarantee quality?

We provide pre-production samples before mass production and conduct final inspections before shipment to ensure product excellence.

What products do we offer?

Our product range includes Fire Testing Equipment, Environmental Test Chambers, Textile Testing Equipment, Toys Testing Equipment, and Wire and Cable Test Machines.

Why choose us over other suppliers?

We are a high-tech enterprise specializing in developing and manufacturing comprehensive testing equipment including Fire Testing Equipment, Building Material Fire Testers, Wire and Cable Fire Testers, Environmental Test Chambers, Textile Testing Equipment, and Toys Testing Equipment.

What services do we provide?

Accepted Delivery Terms: FOB, CFR, CIF, EXW
Accepted Payment Currencies: USD, EUR, JPY, AUD, HKD, GBP, CNY
Accepted Payment Methods: T/T, L/C, D/P D/A, Credit Card, Western Union, Cash
Languages Spoken: English, Chinese
