Popular Semi-Automatic Hand Held Induction Sealer
12V Impulse Heat Bag Sealer Machine with Core Motor Components
Product Overview

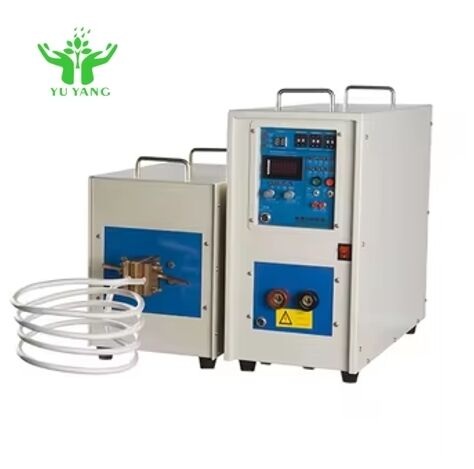

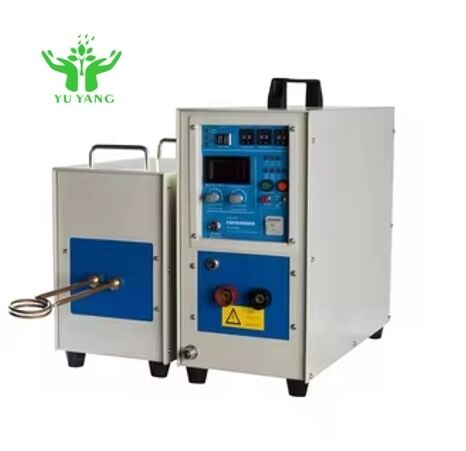

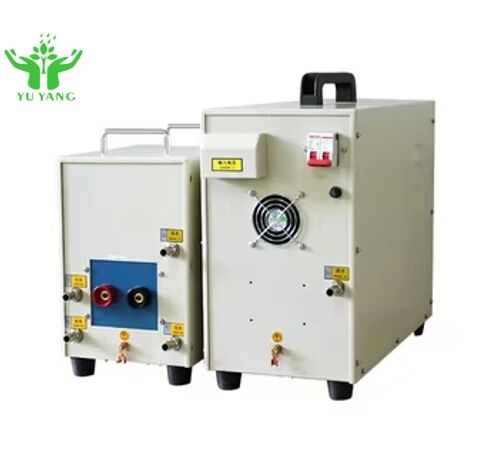

This high-frequency induction heating machine applies advanced electric components and unique techniques to heat metal quickly and locally. It can penetrate non-metal materials to heat metals until fusion without direct contact, providing safe, economical, and pollution-free technical solutions.
Key Characteristics
- IGBT inverting device with automatic frequency tracking
- High-frequency heating with rapid operation and low power consumption (only 20-30% of electronic tube induction heating machines)
- Secure voltage operation for safety and reliability
- Manual and automatic regulation with comprehensive protection against over-voltage, over-current, water shortage, phase failure, and overheating
- No open flame, noise, or pollution - environmentally friendly and fire-safe
- Recommended for brazing, welding, forging, hot cooperation, melting, quenching, and annealing
Product Advantages
- Portable design: Integrated construction saves over 80% space and 75% weight compared to traditional transformers
- Versatile metal heating: Hand-held machine head with amorphous magnetic core material for wider frequency range and better heating of complex, irregular-shaped workpieces
- Efficient and safe operation: Fast heating within 8 seconds, stable magnetic field output, ideal for air conditioning and refrigerator industry copper pipe welding
Technical Parameters
| Model | YYS-40AB (Three phase) |
|---|
| Work Power | 340v-430v |
|---|
| Input Current | 65A |
|---|
| Fluctuating Output Power | 40kw |
|---|
| Fluctuating Frequency | 10-50khz |
|---|
| Output Current | 400-1800A |
|---|
| Cooling Water Flow Rate | 0.08-0.16Mpa 9L/Min |
|---|
| Water Temperature Protection | 50°C |
|---|
| Product Dimensions | Main: 780x370x620 mm
Transformer: 510x260x410 mm |
|---|
| Net Weight | Main: 54 kg
Transformer: 32.5 kg |
|---|
Applications
- Brazing materials: Copper and brass, tungsten steel and stainless steel, iron and copper, aluminum and copper, and other metal brazing
- Glasses welding, fishing tool welding, hardware appliances welding
- Carbide saw and saw-tooth welding, carbide blade welding
- Jewelry and watches welding
- Electronic industry: Motor rotor hot-cooperate, electrode silver soldering and tin soldering
- Metal implants, bulbs fight electrode
- Band accessory soldering, golf head, pipe welding
- Communication equipment soldering, copper coaxial cable connector soldering
