Portable 35kw High Frequency Induction Heating Machine New Condition for Stainless Steel Processing

Portable 35kw High Frequency Induction Heating Machine New Condition for Stainless Steel Processing

35kw induction heating machine

portable stainless steel heater

high frequency induction machine

Place of Origin:

China

Brand Name:

YUYANG

Certification:

CE

Model Number:

YYSQ-TC-120AB (Three phase)

Contact Us
Request A Quote
Product Details
Work Power:
380V 50Hz / 60Hz
Maximum Input Current:
180A
Output Power:
120KW
Fluctuating Frequency:
5-20khz
The Flow Rate Of Cooling Water:
0.08-0.16Mpa 12L/Min
Water Temperature Protection Point:
50C
Product Size:
Main : 770*550*1510MM Transformer : 950*420*770MM
Net Weight :
Main : 145kg Multiple Connect Transformer : 108kg
Highlight:

35kw induction heating machine

,

portable stainless steel heater

,

high frequency induction machine

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
$2000
Packaging Details
Plywood Box
Delivery Time
5-10 work days
Payment Terms
T/T, L/C, Western Union
Supply Ability
200 sets per month
Product Description

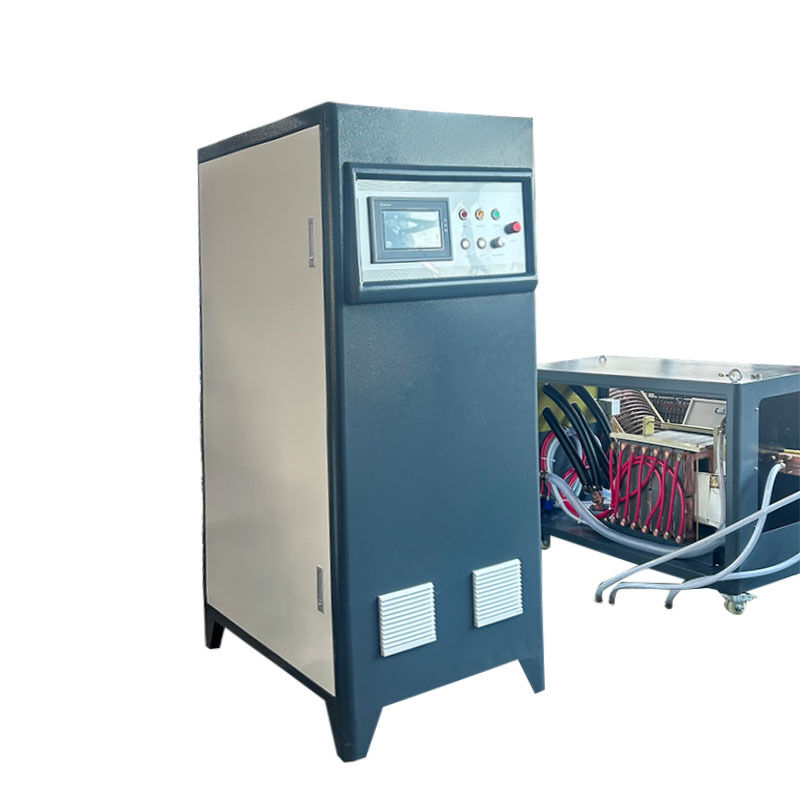

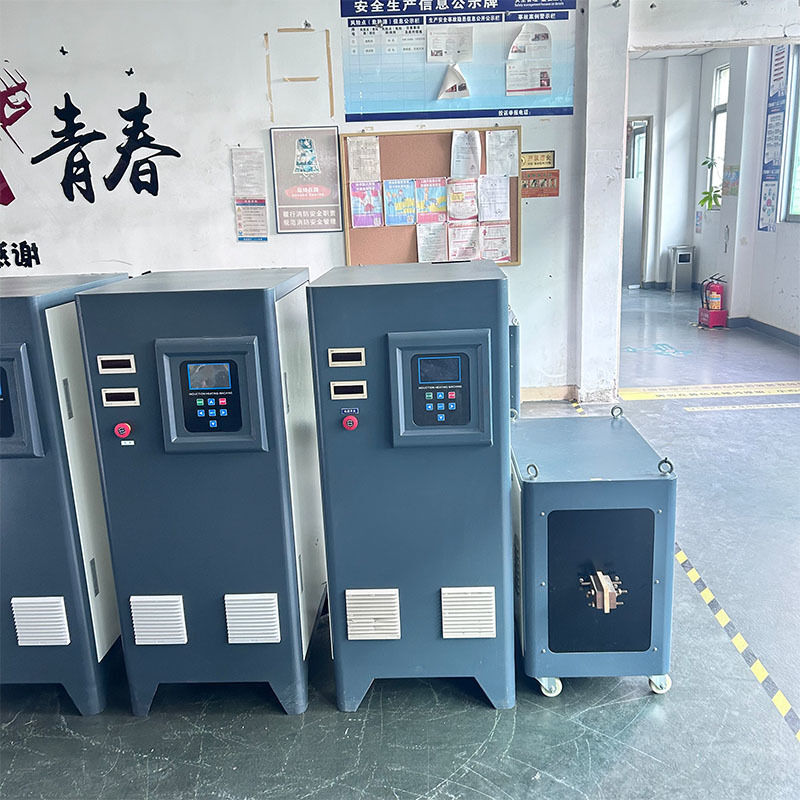

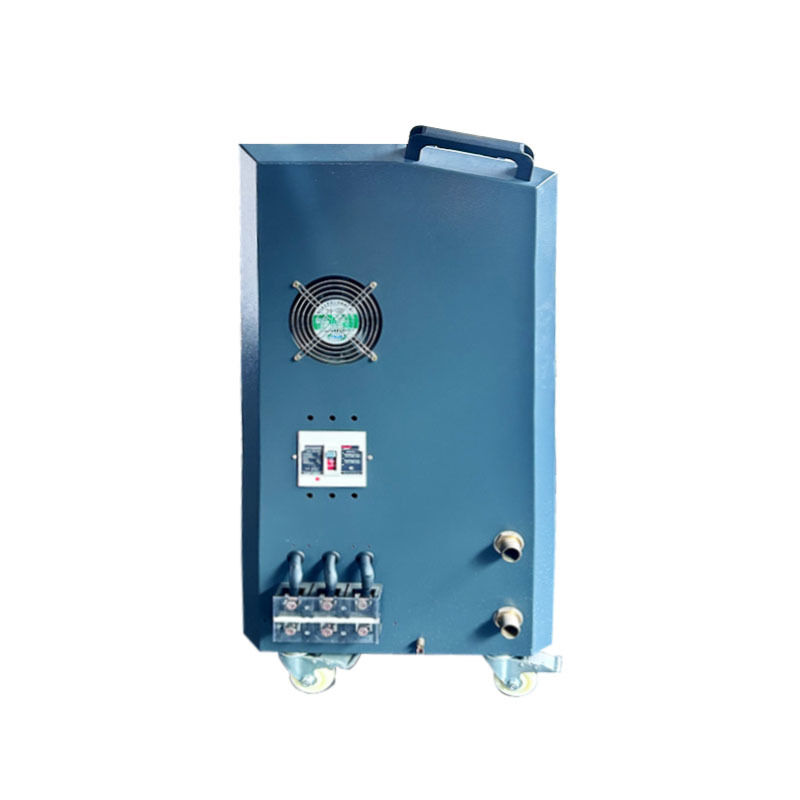

Portable 35kw High Frequency Induction Heating Machine
New condition induction heating machine specifically designed for stainless steel processing applications.
Key Characteristics
  • Advanced IGBT inverting technology with automatic frequency tracking
  • High-frequency operation for rapid heating with 70-80% energy savings compared to traditional methods
  • Secure low-voltage operation with comprehensive safety features
  • Manual and automatic regulation with protection against over-voltage, over-current, water shortage, phase failure, and overheating
  • Environmentally friendly operation with no open flame, minimal noise, and zero pollution
  • Recommended for brazing, welding, forging, hot cooperation, melting, quenching, and annealing
Advanced Features
Utilizes state-of-the-art electrical components and innovative techniques for rapid, localized metal heating. Capable of penetrating non-metallic materials to heat underlying metals without direct contact, providing safe, economical, and pollution-free technical solutions.
Operational Advantages
  • Portable design: 80% space savings and 75% weight reduction compared to traditional transformers
  • Monolithic shell construction resistant to weak acids and alkalis
  • Advanced amorphous magnetic core technology for superior heating of complex, irregular-shaped workpieces
  • Efficient 8-second heating cycle with stable magnetic field output
  • Ideal for air conditioning, refrigeration, and complex welding applications
Technical Specifications
ModelYYSQ-TC-120AB (Three phase)
Work Power380V 50Hz / 60Hz
Maximum Input Current180A
Output Power120KW
Fluctuating Frequency5-20KHZ
Cooling Water Flow Rate0.08-0.16Mpa 12L/Min
Water Temperature Protection50°C
Main Unit Dimensions770×550×1510mm
Transformer Dimensions950×420×770mm
Main Unit Net Weight145kg
Transformer Net Weight108kg
Application Areas
  • Brazing: Copper-brass, tungsten steel-stainless steel, iron-copper, aluminum-copper, and other metal combinations
  • Welding: Eyewear, fishing tools, hardware appliances
  • Carbide tool welding: Saw blades and teeth, cutting tools
  • Jewelry and watch manufacturing
  • Electronics industry: Motor rotor hot-cooperation, electrode silver and tin soldering
  • Medical implants and bulb electrode manufacturing
  • Sports equipment: Golf heads, pipe welding
  • Communication equipment and copper coaxial cable connector soldering
Portable 35kw High Frequency Induction Heating Machine New Condition for Stainless Steel Processing 0 Portable 35kw High Frequency Induction Heating Machine New Condition for Stainless Steel Processing 1
