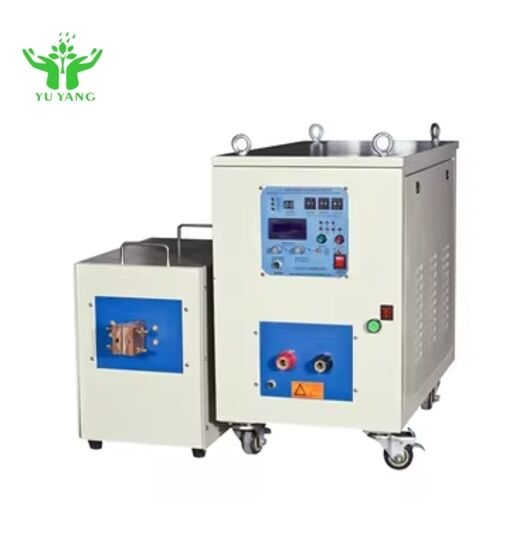

Portable Brazing Welder Small air Conditioning Tube Copper Tube Welding Equipment

Portable Brazing Welder Small air Conditioning Tube Copper Tube Welding Equipment

portable brazing welder for copper tubes

small air conditioning tube welder

copper tube welding equipment with warranty

Place of Origin:

China

Brand Name:

YUYANG

Certification:

CE

Model Number:

YYS-160AB

Contact Us
Request A Quote
Product Details
Max Fluctuating Power:
160KW
Work Power:
Three Phase 380V 50Hz
Max Input Current:
240A
Output Power:
160KW
Fluctuating Frequency:
10-30KHZ
Output Current:
400-6500A
The Flow Rate Of Cooling Water:
0.08-0.16Mpa 15L/Min
Water Temperature Protection Point:
50C
Product Size:
1000X600X1100mm
Net Weight  :
175kg
Highlight:

portable brazing welder for copper tubes

,

small air conditioning tube welder

,

copper tube welding equipment with warranty

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
$2000
Packaging Details
Plywood Box
Delivery Time
5-10 work days
Payment Terms
T/T, L/C, Western Union
Supply Ability
200 sets per month
Product Description
Portable Brazing Welder for Small Air Conditioning & Copper Tube Welding
This advanced portable brazing welder is specifically designed for small air conditioning tube and copper tube welding applications, offering superior performance and efficiency for industrial brazing operations.
Key Characteristics
  • IGBT inverting device with automatic frequency tracking
  • High-frequency heating with rapid warm-up - consumes only 20-30% of power compared to electronic tube induction heating machines
  • Secure voltage operation with enhanced safety features
  • Manual and automatic regulation with comprehensive protection against over voltage, over current, water shortage, phase failure, and overheating
  • Environmentally friendly operation - no open flame, noise, or pollution
  • Versatile applications including brazing, welding, forging, hot cooperation, melting, quenching, and annealing
Advanced Technology Features
The High Frequency Induction Heating Machine incorporates the most advanced electrical components and innovative techniques. It provides rapid, localized metal heating and can penetrate non-metallic materials to fuse metals without direct contact, offering safe, economical, and pollution-free technical solutions.
Operational Advantages
  • Portable design - 80% space savings and 75% weight reduction compared to traditional transformers
  • Monolithic shell design with resistance to weak acids and alkalis
  • Advanced amorphous magnetic core material for wider frequency range and superior heating of complex, irregular-shaped workpieces
  • Efficient 8-second heating cycle - ideal for air conditioning and refrigerator industry copper pipe welding
  • Stable magnetic field output ensures consistent long-term heating performance
Technical Specifications
Model YYS-160AB (Three Phase)
Work Power Three Phase 380V 50Hz
Maximum Input Current 240A
Output Power 160KW
Fluctuating Frequency 10-30KHZ
Output Current 400-6500A
Cooling Water Flow Rate 0.08-0.16Mpa 15L/Min
Water Temperature Protection 50°C
Main Unit Dimensions 1000×600×1100mm
Transformer Dimensions 870×430×750mm
Main Unit Net Weight 175kg
Transformer Net Weight 108kg
Industrial Applications
  • Brazing materials: copper, brass, tungsten steel, stainless steel, iron, aluminum, and other metal combinations
  • Glasses welding, fishing tool welding, hardware appliances welding
  • Carbide saw and saw-tooth welding, carbide blade welding
  • Jewelry and watches welding
  • Electronic industry: motor rotor hot-cooperation, electrode silver and tin soldering
  • Metal implants, bulbs fight electrode
  • Band accessory soldering, golf head, pipe welding
  • Communication equipment soldering, copper coaxial cable connector soldering

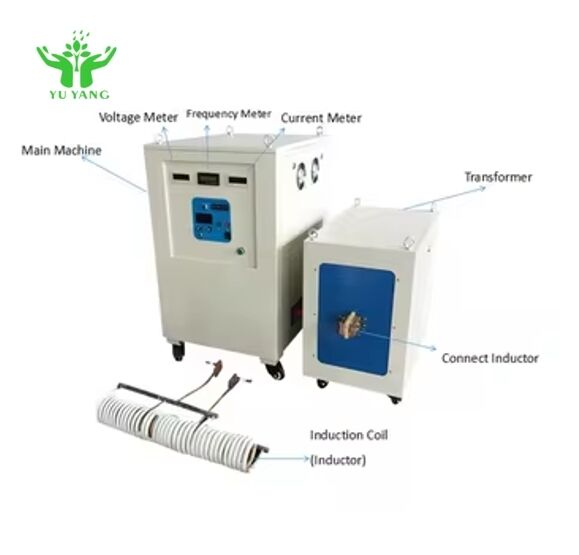

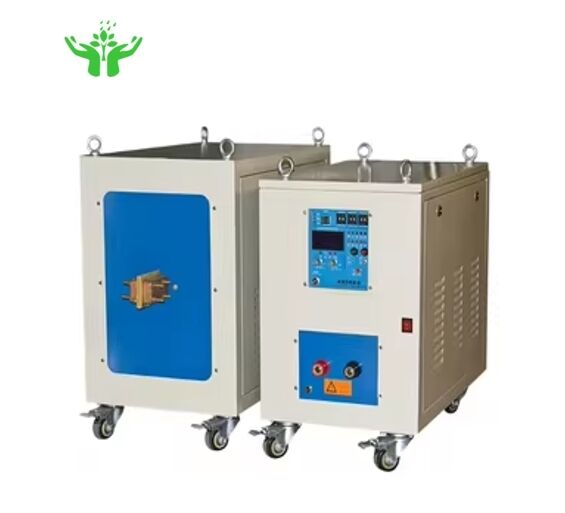

Portable Brazing Welder Small air Conditioning Tube Copper Tube Welding Equipment 0 Portable Brazing Welder Small air Conditioning Tube Copper Tube Welding Equipment 1
