6kw ultra High Frequency Induction Heating Machine Induction Heating Machine

6kw ultra High Frequency Induction Heating Machine Induction Heating Machine

6kw induction heating machine

high frequency induction heater

electrical test set machine

Place of Origin:

China

Brand Name:

YUYANG

Certification:

CE

Model Number:

YYM-100AB

Contact Us
Request A Quote
Product Details
Max Fluctuating Power:
100KW
Work Power:
340V-430V
Max Input Current:
150A
Output Power:
100KW
Fluctuating Frequency:
1-10khz
Output Current:
400-4000A
The Flow Rate Of Cooling Water:
0.08-0.16Mpa 10L/Min
Water Temperature Protection Point:
50C
Product Size:
820x600x1060mm
Net Weight  :
123kg
Highlight:

6kw induction heating machine

,

high frequency induction heater

,

electrical test set machine

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
$2000
Packaging Details
Plywood Box
Delivery Time
5-10 work days
Payment Terms
T/T, L/C, Western Union
Supply Ability
200 sets per month
Product Description

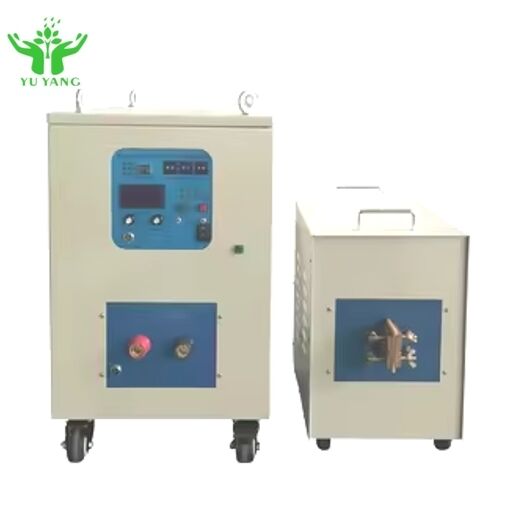

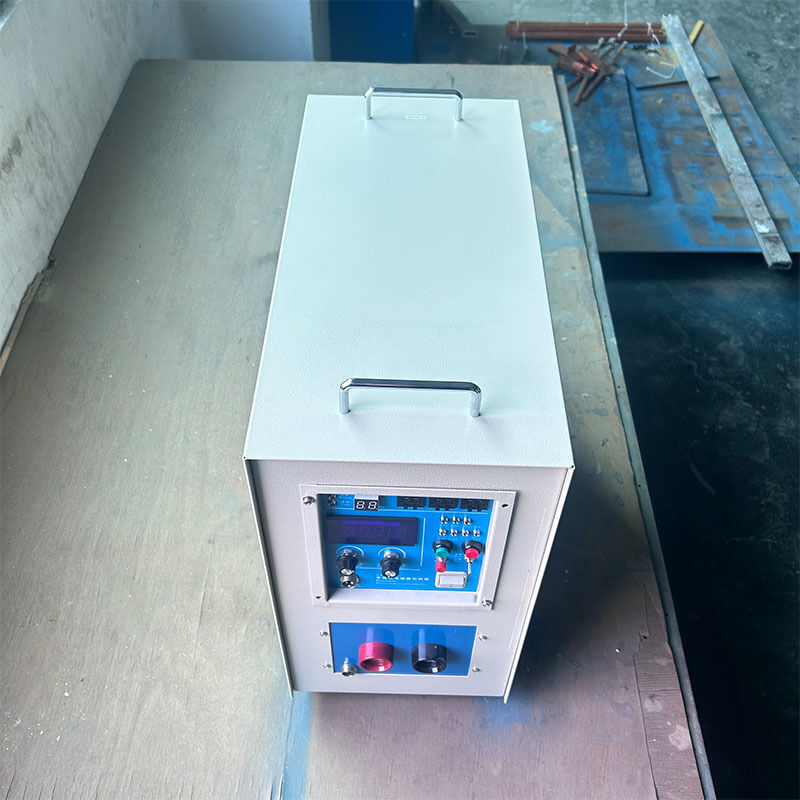

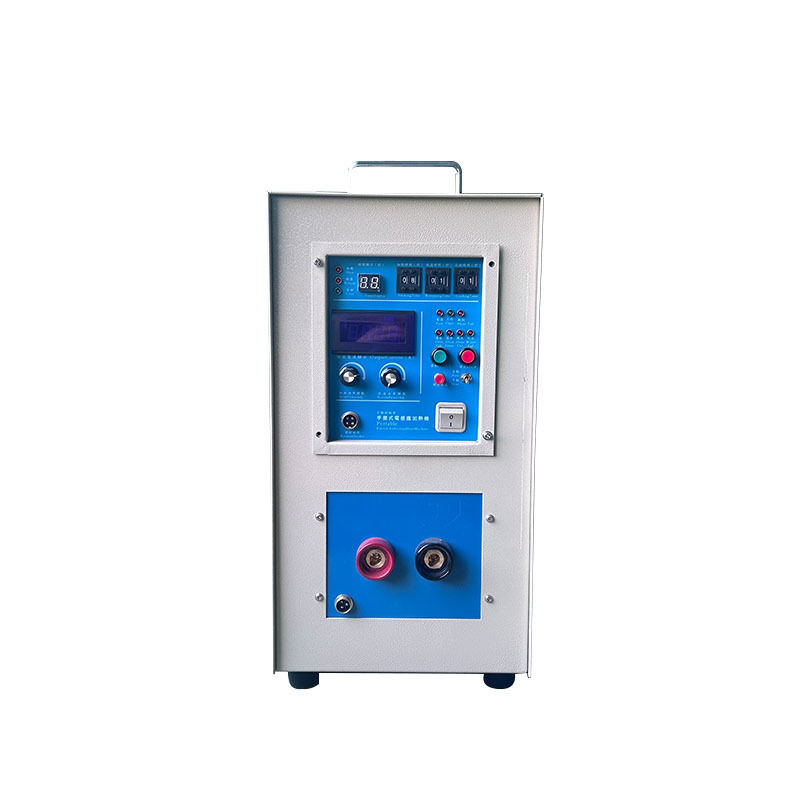

6KW Ultra High Frequency Induction Heating Machine
Advanced induction heating system designed for efficient metal processing with superior energy savings and environmental performance.
Key Characteristics
  • IGBT inverting device with automatic frequency tracking
  • High-frequency operation for rapid heating with 20-30% energy savings compared to electronic tube systems
  • Secure voltage operation for enhanced safety and reliability
  • Manual and automatic regulation with comprehensive protection against over voltage, over current, water shortage, phase failure, and overheating
  • Environmentally friendly operation with no open flame, noise, or pollution
  • Recommended for brazing, welding, forging, hot cooperation, melting, quenching, and annealing applications
Advanced Features
Utilizes state-of-the-art electrical components and innovative techniques for rapid, localized metal heating. Capable of penetrating non-metal materials to heat metals to fusion temperatures without direct contact, providing safe, economical, and pollution-free technical solutions.
Product Advantages
  • Portable design: Integrated construction saves over 80% space and 75% weight compared to traditional transformers
  • Monolithic shell design with resistance to weak acids and alkalis
  • Advanced amorphous magnetic core material for complex metallic heating applications
  • Wide frequency range suitable for irregular shaped workpieces
  • Efficient heating with 8-second warm-up time for air conditioning and refrigerator industry applications
  • Stable magnetic field output ensures consistent long-term heating performance
Technical Parameters
Model YYM-100AB (Three phase)
Work Power 340V-430V
Maximum Input Current 150A
Output Power 100KW
Fluctuating Frequency 1-10kHz
Output Current 400-4000A
Cooling Water Flow Rate 0.08-0.16Mpa 10L/Min
Water Temperature Protection 50°C
Main Unit Dimensions 820×600×1060mm
Transformer Dimensions 870×430×750mm
Main Unit Net Weight 123kg
Transformer Net Weight 84kg
Application Areas
  • Brazing materials: copper and brass, tungsten steel and stainless steel, iron and copper, aluminum and copper, and other metal combinations
  • Glasses welding, fishing tool welding, hardware appliances welding
  • Carbide saw and saw-tooth welding, carbide blade welding
  • Jewelry and watches welding
  • Electronic industry: motor rotor hot-cooperation, electrode silver and tin soldering
  • Metal implants, bulbs fight electrode
  • Band accessory soldering, golf head, pipe welding
  • Communication equipment soldering, copper coaxial cable connector soldering
6kw ultra High Frequency Induction Heating Machine Induction Heating Machine 0 6kw ultra High Frequency Induction Heating Machine Induction Heating Machine 1
