15KW High Frequency Induction Heating Machine Induction Heater

15KW High Frequency Induction Heating Machine Induction Heater

15KW induction heating machine

high frequency induction heater

industrial induction heating equipment

Place of Origin:

China

Brand Name:

YUYANG

Certification:

CE

Model Number:

YYH-40AB

Contact Us
Request A Quote
15KW High Frequency Induction Heating Machine Induction Heater
15KW High Frequency Induction Heating Machine Induction Heater 15KW High Frequency Induction Heating Machine Induction Heater 15KW High Frequency Induction Heating Machine Induction Heater
Product Details
Max Fluctuating Power:
40KW
Work Power:
340v-430v
Maximum Input Current:
60A
Output Power:
40kw
Fluctuating Frequency:
50-200KHZ
The Flow Rate Of Cooling Water:
0.2Mpa, 6L/min
Water Temperature Protection Point:
50C
Product Size:
640x350x550mm
Net Weight :
50kgs
Highlight:

15KW induction heating machine

,

high frequency induction heater

,

industrial induction heating equipment

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
$2000
Packaging Details
Plywood Box
Delivery Time
5-10 work days
Payment Terms
T/T, L/C, Western Union
Supply Ability
200 sets per month
RELATED PRODUCTS
Good price High Frequency Electromagnetic Induction Heating Generator for Steel Bar in Metal & Metallurgy Machinery online Video

High Frequency Electromagnetic Induction Heating Generator for Steel Bar in Metal & Metallurgy Machinery

Get Best Price
Good price Mini Automatic Plastic Glass Jar Sealing Machine Handheld Aluminum Foil Heat Hot Induction Packaging with Cap Lid 220v online Video

Mini Automatic Plastic Glass Jar Sealing Machine Handheld Aluminum Foil Heat Hot Induction Packaging with Cap Lid 220v

Get Best Price
Good price 15KW High Frequency Induction Heating Machine New Metal Copper Pipe Wire Welding Manufacturing Plants Construction Motor Engine online Video

15KW High Frequency Induction Heating Machine New Metal Copper Pipe Wire Welding Manufacturing Plants Construction Motor Engine

Get Best Price
Good price 20-100mm Aluminum Foil Lid Plastic Jar Sealing Heat Machine Handheld Induction Bottle Foil Sealer Metal Metallurgy Machinery online Video

20-100mm Aluminum Foil Lid Plastic Jar Sealing Heat Machine Handheld Induction Bottle Foil Sealer Metal Metallurgy Machinery

Get Best Price
Contact Us
8613265296009
sales13@yuyangtest.com
86-769-26622869
Contact Now
Product Description

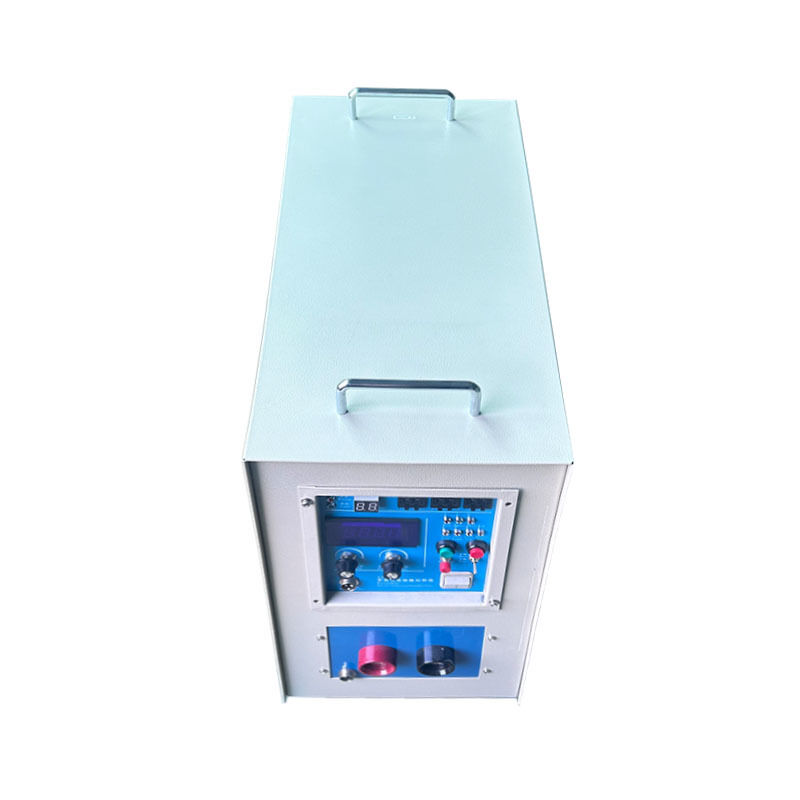

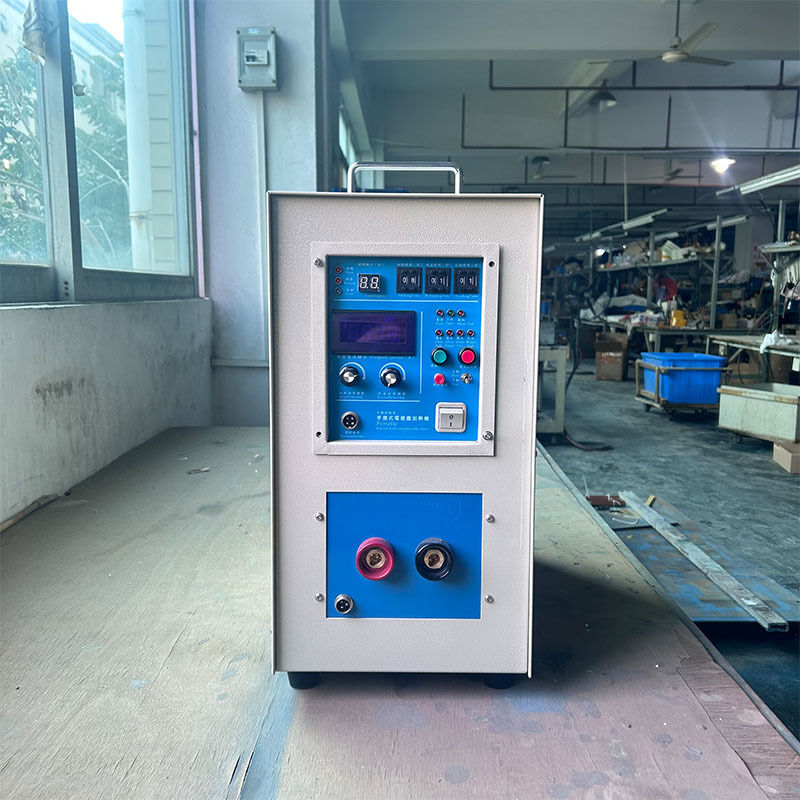

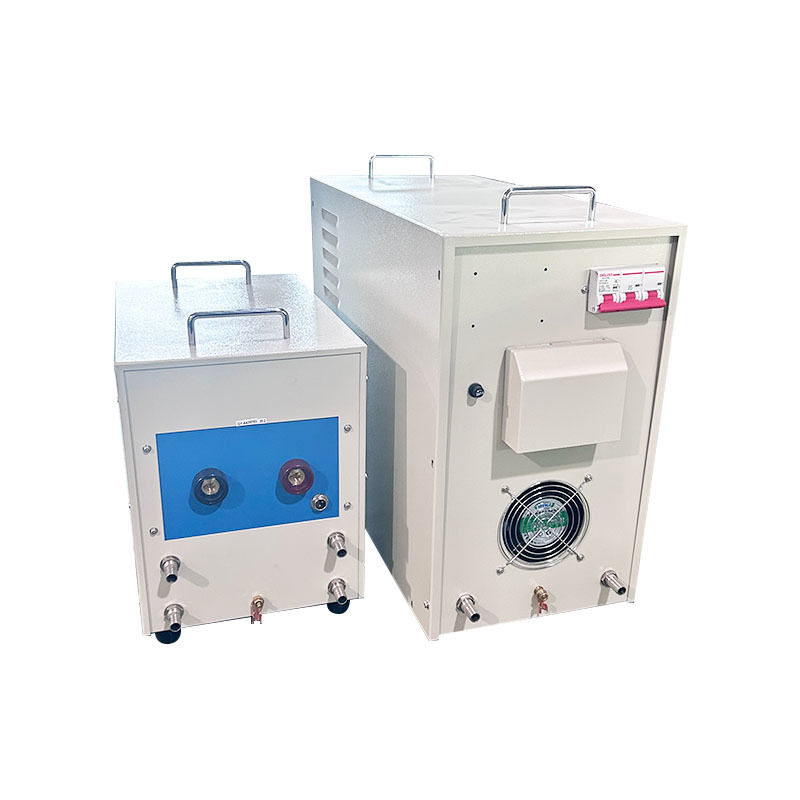

15KW High Frequency Induction Heating Machine
Advanced induction heating system designed for efficient metal processing with superior energy savings and environmental performance.
Key Characteristics
  • IGBT inverting device with automatic frequency tracking
  • High-frequency operation for rapid heating with 20-30% energy savings compared to electronic tube systems
  • Secure voltage operation with comprehensive safety features
  • Manual and automatic regulation with protection against over voltage, over current, water shortage, phase failure, and overheating
  • Environmentally friendly operation with no open flame, noise, or pollution
  • Ideal for brazing, welding, forging, hot cooperation, melting, quenching, and annealing applications
Advanced Features
Utilizes premium electrical components and innovative techniques for rapid, localized metal heating. Capable of penetrating non-metal materials to heat metals to fusion point without direct contact, providing safe, economical, and pollution-free technical solutions.
Product Advantages
  • Portable design: 80% space savings and 75% weight reduction compared to traditional transformers
  • Monolithic shell construction resistant to weak acids and alkalis
  • Advanced amorphous magnetic core material for complex metallic heating applications
  • Wide frequency range suitable for irregular shaped workpieces
  • Efficient heating with 8-second warm-up time
  • Stable magnetic field output for consistent long-term performance
Technical Specifications
Model YYH-40AB (Three phase)
Work Power 340v-430v
Maximum Input Current 60A
Output Power 40kw
Fluctuating Frequency 50-200KHZ
Cooling Water Flow Rate 0.2Mpa, 6L/min
Water Temperature Protection 50°C
Main Unit Dimensions 640x350x550mm
Transformer Dimensions 510x300x450mm
Main Unit Net Weight 50kgs
Transformer Net Weight 28kgs
Application Areas
  • Brazing: Copper and brass, tungsten steel and stainless steel, iron and copper, aluminum and copper
  • Glasses welding, fishing tool welding, hardware appliances welding
  • Carbide saw and saw-tooth welding, carbide blade welding
  • Jewelry and watches welding
  • Electronic industry: Motor rotor hot-cooperate, electrode silver and tin soldering
  • Metal implants, bulbs electrode processing
  • Band accessory soldering, golf head manufacturing, pipe welding
  • Communication equipment soldering, copper coaxial cable connector soldering
15KW High Frequency Induction Heating Machine Induction Heater 0 15KW High Frequency Induction Heating Machine Induction Heater 1
