Steel Bars Rods Induction Heating Machine Induction Heating Equipment Induction Heater

Steel Bars Rods Induction Heating Machine Induction Heating Equipment Induction Heater

steel bars induction heating machine

induction heating equipment for rods

induction heater electrical test set

Place of Origin:

China

Brand Name:

YUYANG

Certification:

CE

Model Number:

YYH-100AB

Contact Us
Request A Quote
Steel Bars Rods Induction Heating Machine Induction Heating Equipment Induction Heater
Steel Bars Rods Induction Heating Machine Induction Heating Equipment Induction Heater Steel Bars Rods Induction Heating Machine Induction Heating Equipment Induction Heater Steel Bars Rods Induction Heating Machine Induction Heating Equipment Induction Heater
Product Details
Max Fluctuating Power:
100KW
Work Power:
340v-430v
Maximum Input Current:
150A
Output Power:
100kw
Fluctuating Frequency:
50-150KHZ
The Flow Rate Of Cooling Water:
0.2Mpa, 6L/min
Water Temperature Protection Point:
50C
Product Size:
760X400X880mm
Net Weight :
94kg
Highlight:

steel bars induction heating machine

,

induction heating equipment for rods

,

induction heater electrical test set

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
$2000
Packaging Details
Plywood Box
Delivery Time
5-10 work days
Payment Terms
T/T, L/C, Western Union
Supply Ability
200 sets per month
RELATED PRODUCTS
Good price High Frequency Electromagnetic Induction Heating Generator for Steel Bar in Metal & Metallurgy Machinery online Video

High Frequency Electromagnetic Induction Heating Generator for Steel Bar in Metal & Metallurgy Machinery

Get Best Price
Good price Mini Automatic Plastic Glass Jar Sealing Machine Handheld Aluminum Foil Heat Hot Induction Packaging with Cap Lid 220v online Video

Mini Automatic Plastic Glass Jar Sealing Machine Handheld Aluminum Foil Heat Hot Induction Packaging with Cap Lid 220v

Get Best Price
Good price 15KW High Frequency Induction Heating Machine New Metal Copper Pipe Wire Welding Manufacturing Plants Construction Motor Engine online Video

15KW High Frequency Induction Heating Machine New Metal Copper Pipe Wire Welding Manufacturing Plants Construction Motor Engine

Get Best Price
Good price 20-100mm Aluminum Foil Lid Plastic Jar Sealing Heat Machine Handheld Induction Bottle Foil Sealer Metal Metallurgy Machinery online Video

20-100mm Aluminum Foil Lid Plastic Jar Sealing Heat Machine Handheld Induction Bottle Foil Sealer Metal Metallurgy Machinery

Get Best Price
Contact Us
8613265296009
sales13@yuyangtest.com
86-769-26622869
Contact Now
Product Description

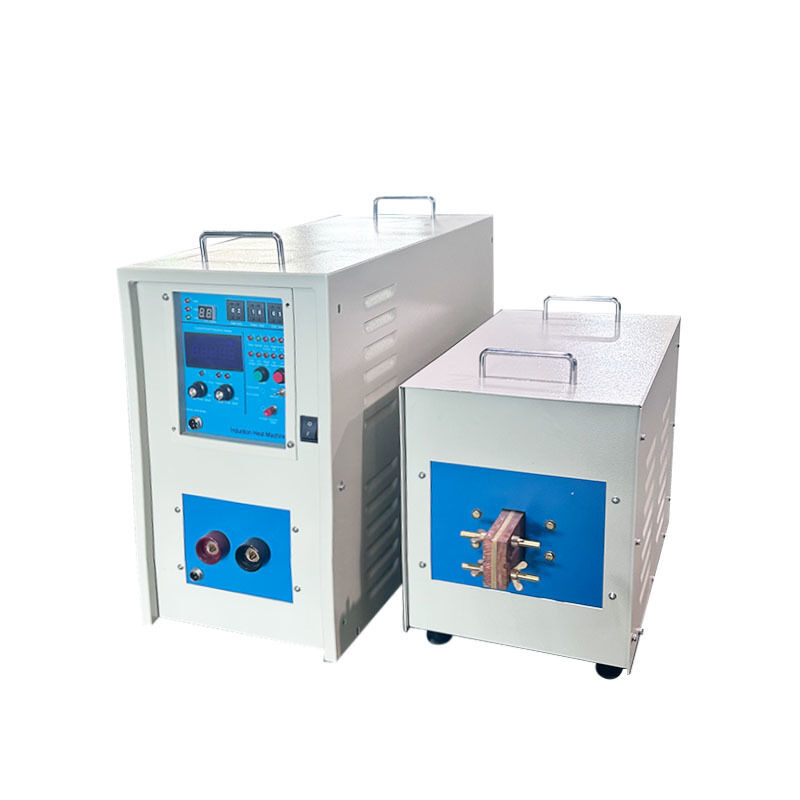

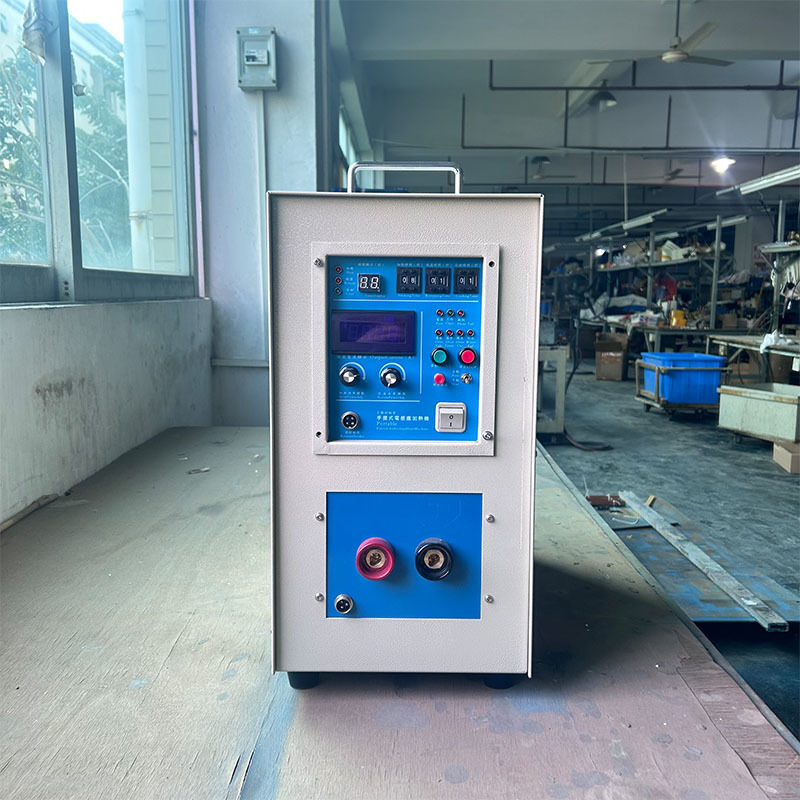

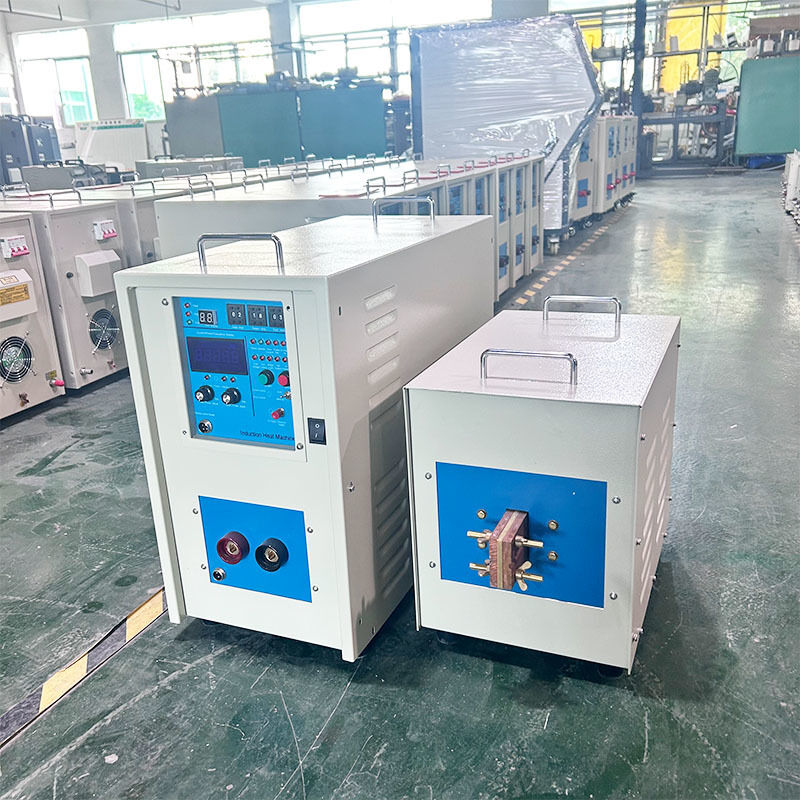

Steel Bars Rods Induction Heating Machine
Advanced induction heating equipment designed for efficient metal processing with superior performance and reliability.
Key Characteristics
  • IGBT inverting device with automatic frequency tracking
  • High-frequency operation with 70-80% energy savings compared to traditional heating methods
  • Secure voltage operation with comprehensive safety features
  • Manual and automatic regulation with over-voltage, over-current, water deficiency, phase failure, and overheat protection
  • Environmentally friendly operation with no open flame, noise, or pollution
  • Recommended for brazing, welding, forging, hot cooperation, melting, quenching, and annealing
Advanced Features
Utilizes advanced electrical components and innovative techniques for rapid, localized metal heating. Capable of penetrating non-metal materials to heat metals to fusion point without direct contact, providing safe, economical, and pollution-free technical solutions.
Product Advantages
  • Portable design: 80% space savings and 75% weight reduction compared to traditional transformers
  • Monolithic shell design with resistance to weak acids and alkalis
  • Advanced amorphous magnetic core material for complex metallic heating applications
  • Wide frequency range suitable for irregular shaped workpieces
  • Efficient heating with 8-second warm-up time
  • Stable magnetic field output for consistent long-term performance
Technical Specifications
Model YYH-100AB (Three phase)
Work Power 340v-430v
Maximum Input Current 150A
Output Power 100kw
Fluctuating Frequency 50-150KHZ
Cooling Water Flow Rate 0.2Mpa, 6L/min
Water Temperature Protection 50°C
Main Unit Dimensions 760×400×880mm
Transformer Dimensions 510×300×450mm
Main Unit Net Weight 94kg
Transformer Net Weight 27kg
Applications
  • Brazing: Copper and brass, tungsten steel and stainless steel, iron and copper, aluminum and copper
  • Glasses welding, fishing tool welding, hardware appliances welding
  • Carbide saw and saw-tooth welding, carbide blade welding
  • Jewelry and watches welding
  • Electronic industry: Motor rotor hot-cooperate, electrode silver and tin soldering
  • Metal implants, bulbs fight electrode
  • Band accessory soldering, golf head, pipe welding
  • Communication equipment soldering, copper coaxial cable connector soldering
Steel Bars Rods Induction Heating Machine Induction Heating Equipment Induction Heater 0 Steel Bars Rods Induction Heating Machine Induction Heating Equipment Induction Heater 1
Company Information
About Us
Based in Guangdong, China, established in 2018. Serving global markets including South Asia (20%), Eastern Asia (20%), Domestic Market (15%), Southeast Asia (15%), Eastern Europe (10%), North America (10%), Oceania (5%), and Western Europe (5%). Team of 11-50 professionals.
Quality Assurance
Pre-production samples provided before mass production. Final inspection conducted before shipment to ensure product quality.
Product Range
Fire Testing Equipment, Environmental Test Chambers, Textile Testing Equipment, Toys Testing Equipment, Wire and Cable Test Machines
Why Choose Us
High-tech enterprise specializing in developing and manufacturing comprehensive testing equipment including Fire Testing Equipment, Building Material Fire Testers, Wire and Cable Fire Testers, and Environmental Test Chambers.
Services Provided
Delivery Terms: FOB, CFR, CIF, EXW
Payment Currency: USD, EUR, JPY, AUD, HKD, GBP, CNY
Payment Methods: T/T, L/C, D/P D/A, Credit Card, Western Union, Cash
Languages: English, Chinese
