Induction Heating Welding Machines Induction Heating Machine

Induction Heating Welding Machines Induction Heating Machine

induction heating welding machine

electrical test set with induction heating

welding machine with induction heating

Place of Origin:

China

Brand Name:

YUYANG

Certification:

CE

Model Number:

YY-40AB

Contact Us
Request A Quote
Induction Heating Welding Machines Induction Heating Machine
Induction Heating Welding Machines Induction Heating Machine Induction Heating Welding Machines Induction Heating Machine Induction Heating Welding Machines Induction Heating Machine
Product Details
Max Fluctuating Power:
40KW
Work Power:
340V-430V
Maximum Input Current:
41A
Output Power:
40KW
Fluctuating Frequency:
30-80KHZ
The Flow Rate Of Cooling Water:
0.08-0.16Mpa 7.6L/Min
Water Temperature Protection Point:
40C
Product Size:
620x250x530mm
Net Weight  :
34.5kg
Highlight:

induction heating welding machine

,

electrical test set with induction heating

,

welding machine with induction heating

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
$2000
Packaging Details
Plywood Box
Delivery Time
5-10 work days
Payment Terms
T/T, L/C, Western Union
Supply Ability
200 sets per month
RELATED PRODUCTS
Good price High Frequency Electromagnetic Induction Heating Generator for Steel Bar in Metal & Metallurgy Machinery online Video

High Frequency Electromagnetic Induction Heating Generator for Steel Bar in Metal & Metallurgy Machinery

Get Best Price
Good price Mini Automatic Plastic Glass Jar Sealing Machine Handheld Aluminum Foil Heat Hot Induction Packaging with Cap Lid 220v online Video

Mini Automatic Plastic Glass Jar Sealing Machine Handheld Aluminum Foil Heat Hot Induction Packaging with Cap Lid 220v

Get Best Price
Good price 15KW High Frequency Induction Heating Machine New Metal Copper Pipe Wire Welding Manufacturing Plants Construction Motor Engine online Video

15KW High Frequency Induction Heating Machine New Metal Copper Pipe Wire Welding Manufacturing Plants Construction Motor Engine

Get Best Price
Good price 20-100mm Aluminum Foil Lid Plastic Jar Sealing Heat Machine Handheld Induction Bottle Foil Sealer Metal Metallurgy Machinery online Video

20-100mm Aluminum Foil Lid Plastic Jar Sealing Heat Machine Handheld Induction Bottle Foil Sealer Metal Metallurgy Machinery

Get Best Price
Contact Us
8613265296009
sales13@yuyangtest.com
86-769-26622869
Contact Now
Product Description

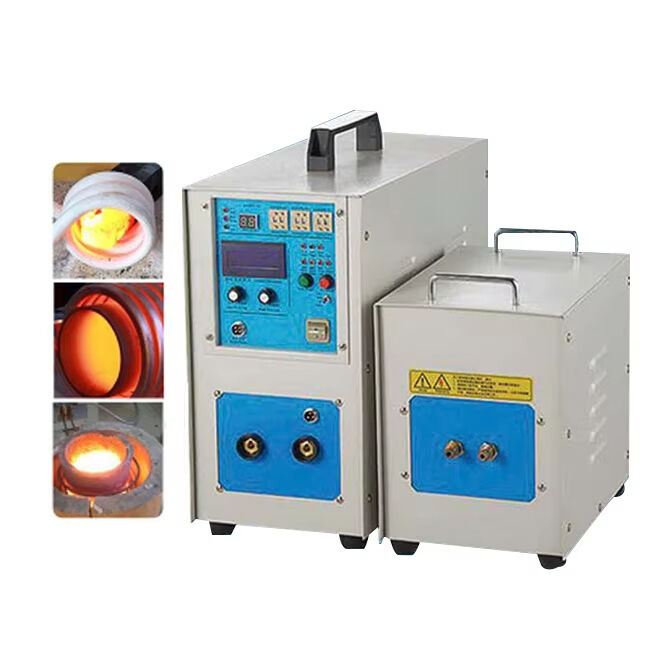

Induction Heating Welding Machines
Advanced induction heating equipment designed for efficient metal processing with superior energy savings and environmental performance.
Key Characteristics
  • IGBT inverting device with automatic frequency tracking
  • High-frequency operation with 70-80% energy savings compared to traditional heating methods
  • Secure voltage operation for enhanced safety
  • Manual and automatic regulation with comprehensive protection systems
  • Environmentally friendly operation with no open flame, noise, or pollution
  • Versatile applications including brazing, welding, forging, and heat treatment
Advanced Features
Utilizes state-of-the-art electrical components and innovative techniques for rapid, localized metal heating. Capable of penetrating non-metallic materials to heat metals directly without physical contact, providing safe, economical, and pollution-free technical solutions.
Product Advantages
  • Portable design: 80% space savings and 75% weight reduction compared to traditional transformers
  • Advanced amorphous magnetic core technology for superior heating of complex metal shapes
  • High efficiency with rapid 8-second heating cycles and stable magnetic field output
  • Monolithic shell design resistant to weak acids and alkalis
  • Ideal for air conditioning, refrigeration, and complex welding applications
Technical Specifications
Model YY-40AB (Three Phase)
Work Power 340V-430V
Maximum Input Current 41A
Output Power 40KW
Fluctuating Frequency 30-80KHZ
Cooling Water Flow 0.08-0.16Mpa 7.6L/Min
Overheat Protection 40°C
Main Unit Dimensions 620×250×530mm
Transformer Dimensions 480×260×410mm
Main Unit Net Weight 34.5kg
Transformer Net Weight 31.5kg
Applications
  • Metal brazing: copper, brass, tungsten steel, stainless steel, iron, aluminum
  • Glasses welding, fishing tool welding, hardware appliances welding
  • Carbide saw and blade welding, saw-tooth welding
  • Jewelry and watch manufacturing
  • Electronic industry: motor rotor hot-cooperation, electrode soldering
  • Medical implants, bulb electrode manufacturing
  • Sports equipment: golf heads, band accessories
  • Communication equipment: copper coaxial cable connector soldering
Induction Heating Welding Machines Induction Heating Machine 0 Induction Heating Welding Machines Induction Heating Machine 1
Company Information
Location: Guangdong, China
Established: 2018
Market Reach: Global distribution including South Asia, Eastern Asia, North America, Europe, and Oceania
Team Size: 11-50 professionals
Quality Assurance
  • Pre-production sampling before mass production
  • Final inspection before shipment
Product Range
Fire Testing Equipment, Environmental Test Chambers, Textile Testing Equipment, Toys Testing Equipment, Wire and Cable Test Machines
Why Choose Us
We are a high-tech enterprise specializing in developing and manufacturing comprehensive testing equipment with advanced technical expertise and manufacturing capabilities.
Service Details
Delivery Terms: FOB, CFR, CIF, EXW
Payment Methods: T/T, L/C, D/P D/A, Credit Card, Western Union, Cash
Accepted Currencies: USD, EUR, JPY, AUD, HKD, GBP, CNY
Languages: English, Chinese
