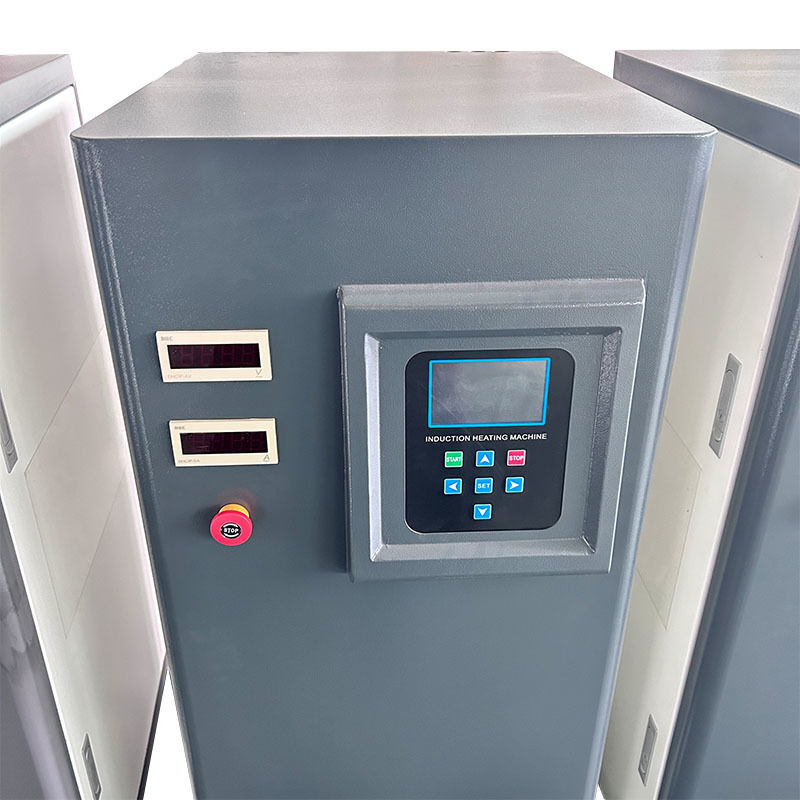

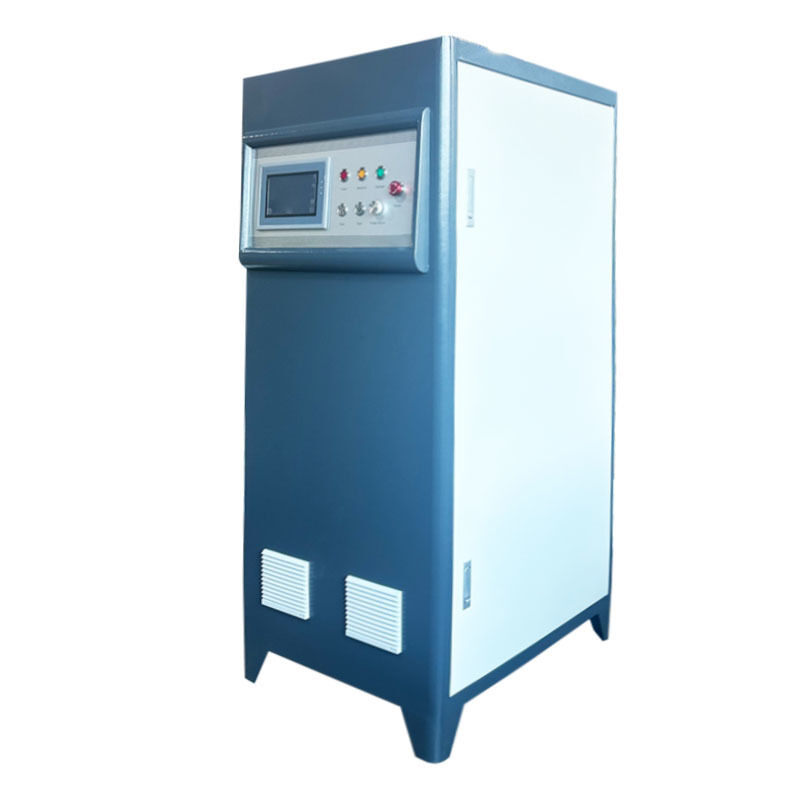

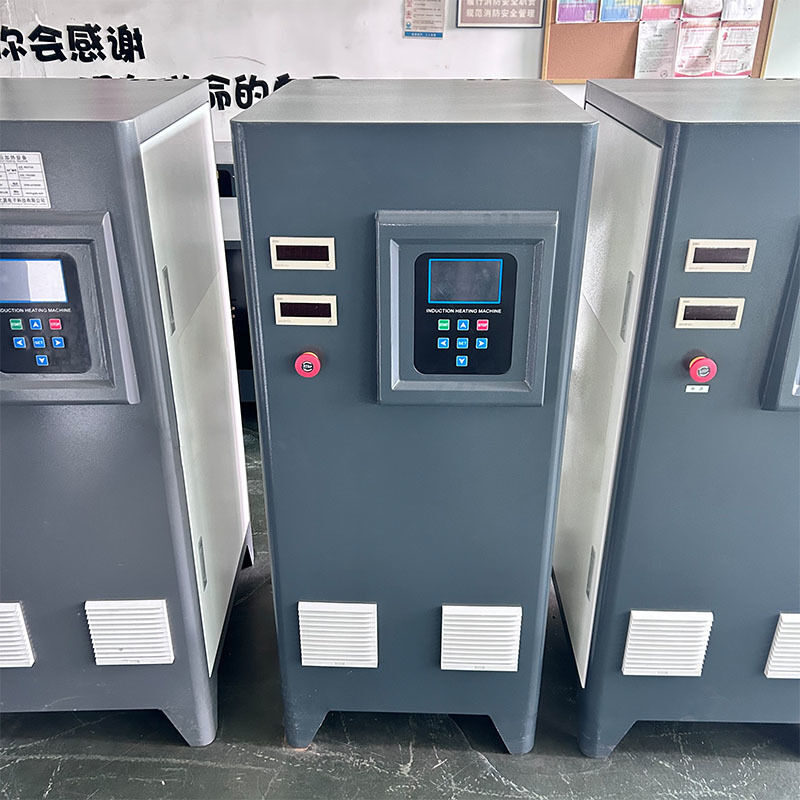

15kw High Frequency Induction Heat Treatment Machine
Advanced induction brazing machine with high-frequency heating technology for efficient metal processing applications.
Key Characteristics
- Advanced IGBT inverting technology with automatic frequency tracking
- High-frequency heating with rapid operation - consumes only 20-30% of traditional electronic tube induction heating systems
- Secure voltage operation with enhanced safety features
- Manual and automatic regulation with comprehensive protection against over-voltage, over-current, water deficiency, phase failure, and overheating
- Environmentally friendly operation - no open flame, noise, or pollution emissions
- Recommended for brazing, welding, forging, hot cooperation, melting, quenching, and annealing processes
Advanced Features
Our high-frequency induction heating machines incorporate state-of-the-art electrical components and innovative techniques for rapid, localized metal heating. The technology enables non-contact heating through non-metallic materials until metal fusion occurs, providing safe, economical, and pollution-free technical solutions.
Operational Advantages
Portable Design: Integrated construction saves over 80% space and 75% weight compared to traditional transformers. Monolithic shell design with resistance to weak acids and alkalis.
Complex Metal Heating: Hand-held machine head with amorphous magnetic core material provides wider frequency range and superior heating for irregular shaped workpieces.
Efficient Operation: Rapid heating within 8 seconds, intelligent operation with stable magnetic field output for consistent long-term performance. Ideal for copper pipe welding and complex transformer applications.
Technical Specifications
| Model | YYSQ-TC-60AB (Three phase) |
|---|
| Work power | 340V-430V |
|---|
| Maximum input current | 90A |
|---|
| Output power | 60KW |
|---|
| Fluctuating frequency | 5-20KHZ |
|---|
| Output current | 400-4500A |
|---|
| The flow rate of cooling water | 0.08-0.16Mpa 12L/Min |
|---|
| Water temperature protection point | 50°C |
|---|
| Product size | Main: 808*530*1260MM
Transformer: 840*420*740MM |
|---|
| Net weight | Main: 102kg
Transformer: 78kg |
|---|
Industrial Applications
Brazing Materials: Copper and brass, tungsten steel and stainless steel, iron and copper, aluminum and copper, and other metal brazing applications
Welding: Glasses, fishing tools, hardware appliances, carbide saws and teeth, carbide blades, jewelry, watches
Electronic Industry: Motor rotor hot-cooperation, electrode silver and tin soldering
Specialized Applications: Metal implants, bulb electrode fabrication, band accessories, golf heads, pipe welding
Communication Equipment: Copper coaxial cable connector soldering and related applications
Manufacturer Information
Based in Guangdong, China, established in 2018. Serving global markets including South Asia (20%), Eastern Asia (20%), Domestic Market (15%), Southeast Asia (15%), Eastern Europe (10%), North America (10%), Oceania (5%), and Western Europe (5%). Team of 11-50 professionals.
Quality Assurance:
- Pre-production sampling before mass production
- Final inspection prior to shipment
Product Range: Fire Testing Equipment, Environmental Test Chambers, Textile Testing Equipment, Toys Testing Equipment, Wire and Cable Test Machines
Competitive Advantages: High-tech enterprise specializing in developing and manufacturing comprehensive testing equipment including Fire Testing Equipment, Building Material Fire Testers, Wire and Cable Fire Testers, Environmental Test Chambers, Textile Testing Equipment, and Toys Testing Equipment.
Business Services:
Delivery Terms: FOB, CFR, CIF, EXW
Payment Currency: USD, EUR, JPY, AUD, HKD, GBP, CNY
Payment Methods: T/T, L/C, D/P D/A, Credit Card, Western Union, Cash
Languages: English, Chinese
